LED Power Supply

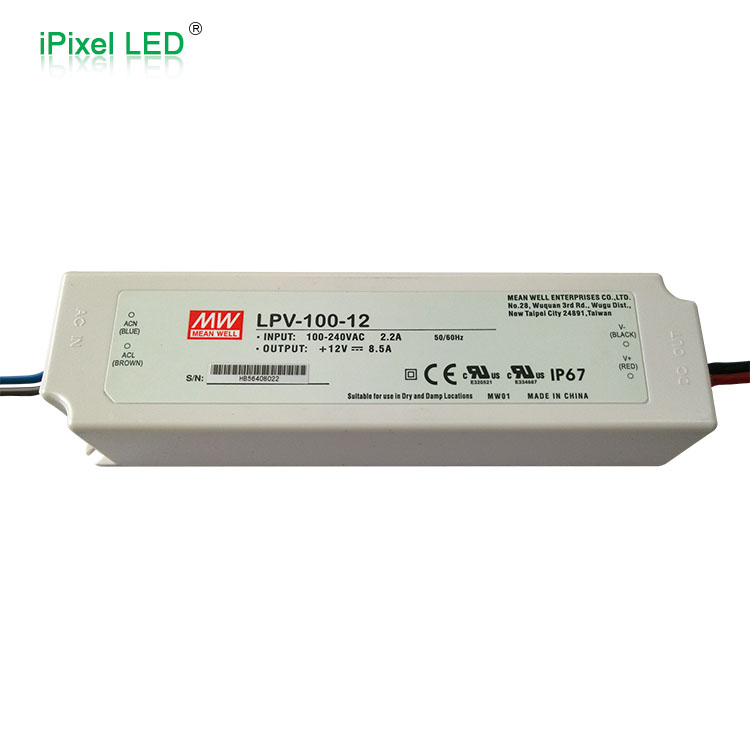

LPV-100-12

Application:

1. LED strip,led light bar.

2. LED tube,led pixel light.

3. Light source,led screen.

4. LED module,Other Electronics.

Share to

Product Parameters：

MODEL		LPV-100-5	LPV-100-12
OUTPUT	DC VOLTAGE	5V	12V
	RATED CURRENT	12A	8.5A
	CURRENT RANGE	0~12A	0~8.5A
	RATED POWER	60W	102W
	RIPPLE&NOISE(max.) Note.2	80mVp-p	120mVp-p
	VOLTAGE TOLERANCE Note.3	±8.0%	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±6.0%	±2.0%
	SETUP,RISE TIME Note.6	2000ms,25ms/230VAC 2000ms,25ms/115VAC
	HOLD UP TIME(Typ.)	50ms/230VAC 14ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4	90~264VAC 127-370VDC
	FREQUENCY RANGE	47~63Hz
	EFFICINCY(Typ.)	80%	85%
	AC CURRENT	2.2A/115VAC 1.2A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 75A(twidth=700us measured at 50% lpeak)at 230VAC
	LEAKAGE CURRENT	0.25mA/240VAC
PROTECTION	OVER CURRENT	110~150% rated output power
		Protection type:Hiccup mode,recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75~6.75V	13.8~16.2V
		Protection type:Shut down o/p voltage,re-power onto recover

Features:

1. Constant voltage design

2. Universal AC input/Full range

3. Fully encapsulated with IP67 level(Note.8)

4. Withstand 300VAC surge input for 5 seconds

5. Protections:Short circuit/Over current/Over voltage

6. Fully isolated plastic case

7. Cooling by free air convection

8. 100% full load burn-in test

9. Low cost,high reliability

10. Suitable for LED lighting and moving sign applications(Note.7)

11. 2 years warranty

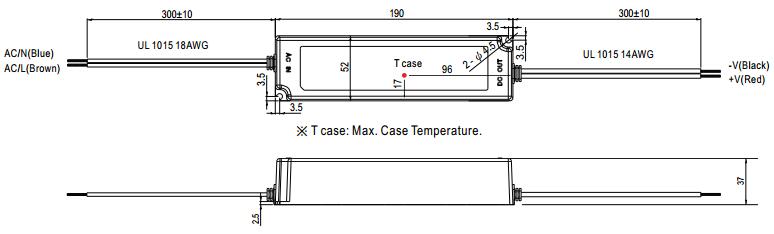

Size:
