LRS-200-SPEC - LED Power Supply - Products

LED Power Supply

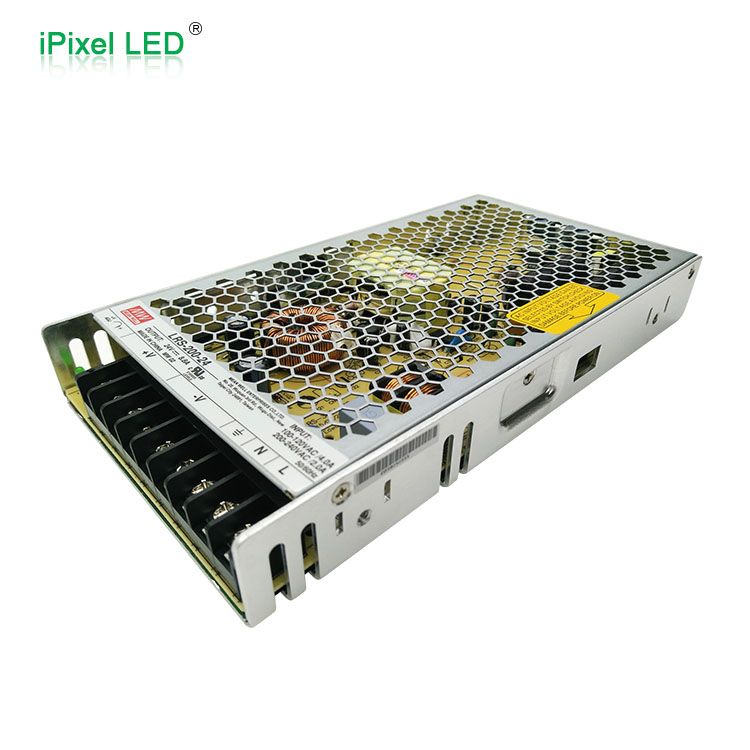

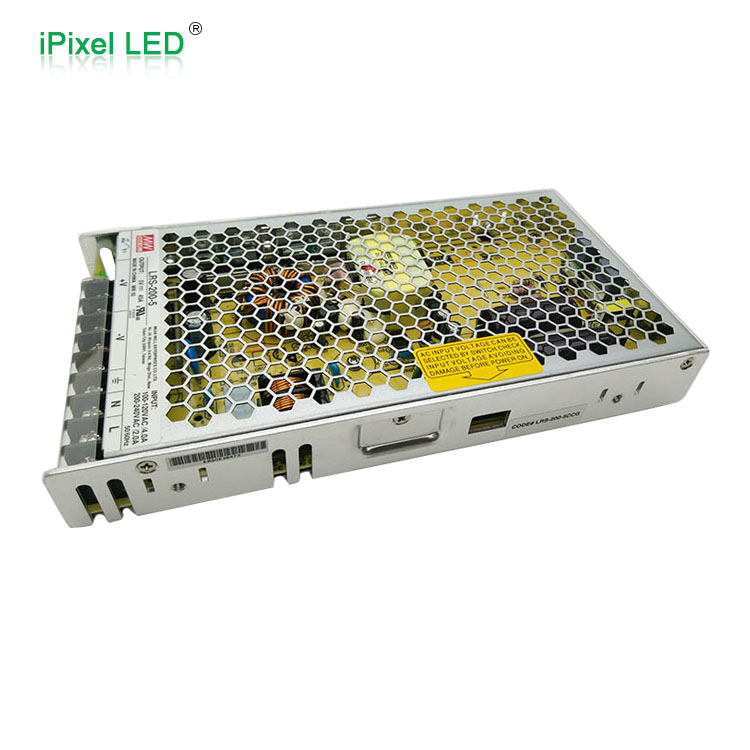

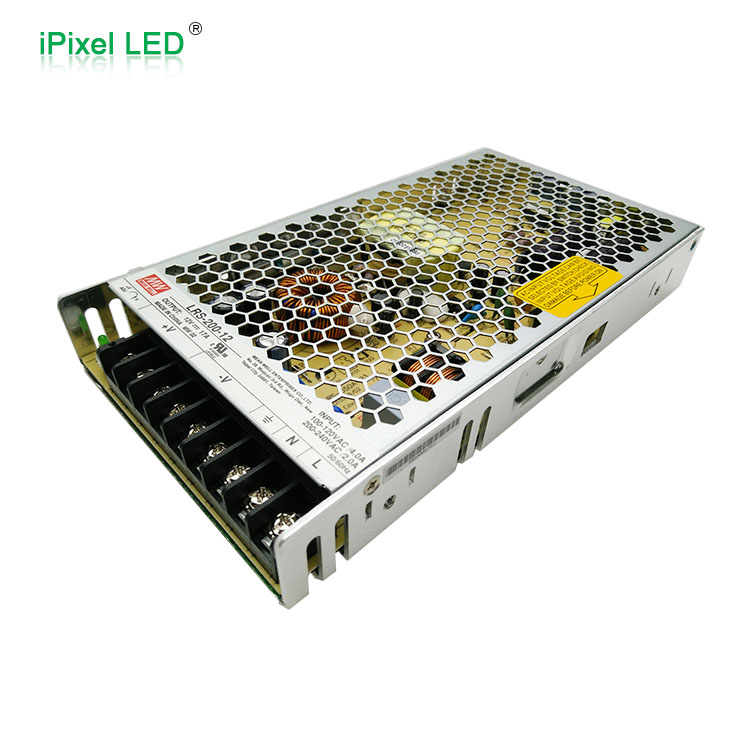

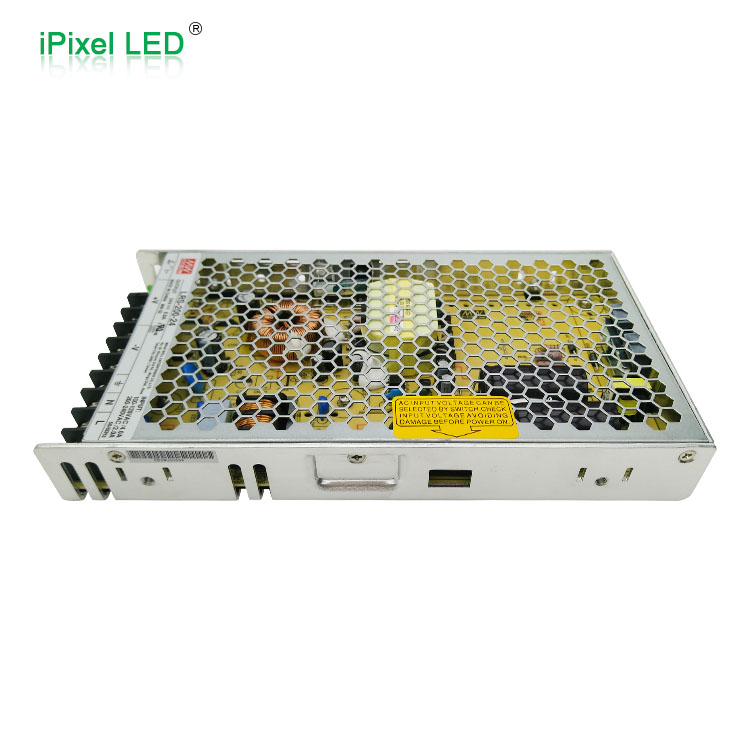

LRS-200-SPEC

Application:

1. LED strip,led light bar.

2. LED tube,led pixel light.

3. Light source,led screen.

4. LED module,Other Electronics.

Email: inquiry@ipixelleds.com

Share to

■ Features		■ Applications
■ Features AC input range selectable by switch Withstand 300VAC surge input for 5 second Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection 1U low profile Withstand 5G vibration test LED indicator for power on No load power consumption<0.75W 100% full load burn-in test High operating temperature up to 70℃ High efficiency, long life and high reliability 3 years warranty		■ Applications Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipments or apparatus

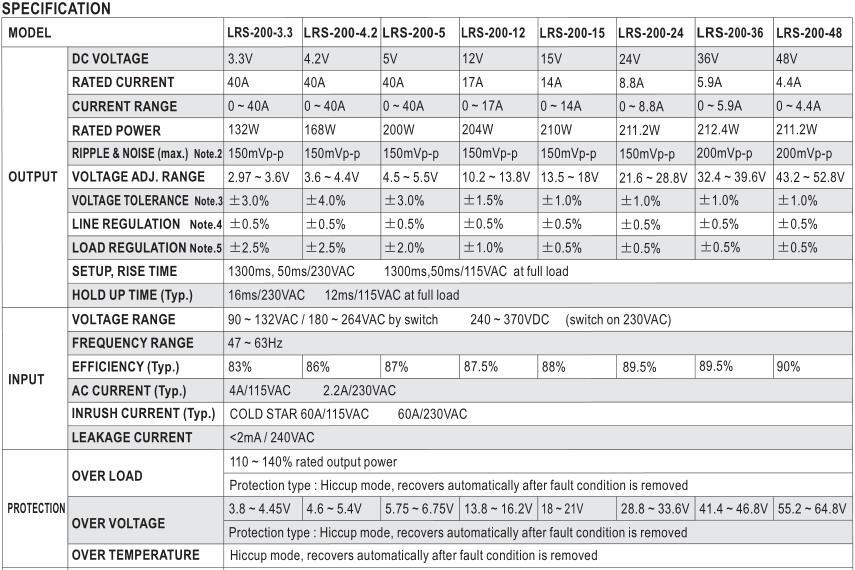

NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up
time.
7.The 150% peak load capability is built in for up to 1 second for 12~48V.LRS-200 will enter hiccup mode if the peak load is delivered
for over 1 second and will recover once it resumes to the rated current level(115VAC/230VAC).

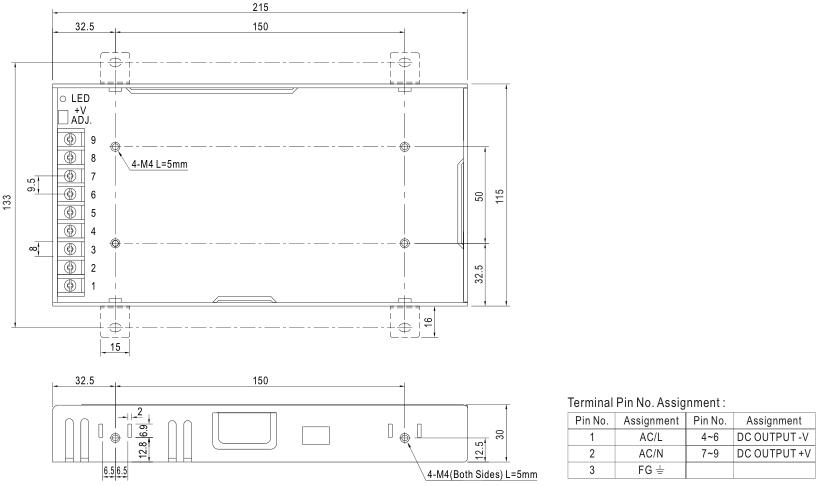

Size:
