Application:
1. LED strip,led light bar.
2. LED tube,led pixel light.
3. Light source,led screen.
4. LED module,Other Electronics.
■ Features |
■ Applications |
|
|
Universal AC
input / Full range Withstand 300VAC surge input for 5 second Protections: Short circuit / Overload / Over voltage Cooling by free air convection Miniature size and 1U low profile Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances Operating altitude up to 5000 meters (Note.7) Withstand 5G vibration test LED indicator for power on No load power consumption<0.3W 100% full load burn-in test High operating temperature up to 70℃ High efficiency, long life and high reliability 3 years warranty |
Industrial
automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipments or apparatus Household appliances |

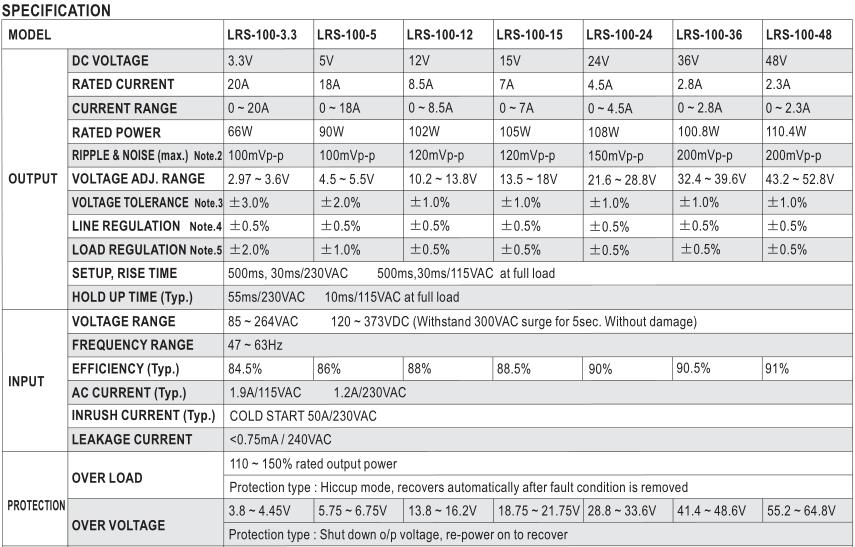

NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.

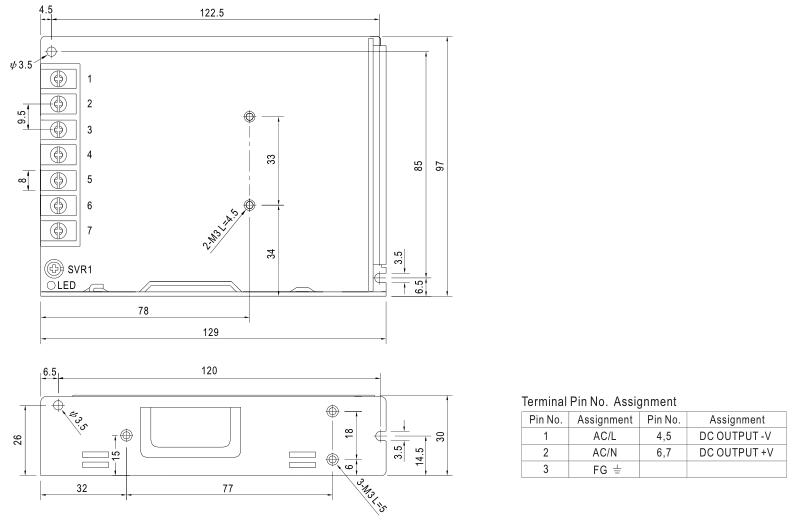

Size:
