Application:
1. LED strip,led light bar.
2. LED tube,led pixel light.
3. Light source,led screen.
4. LED module,Other Electronics.
|

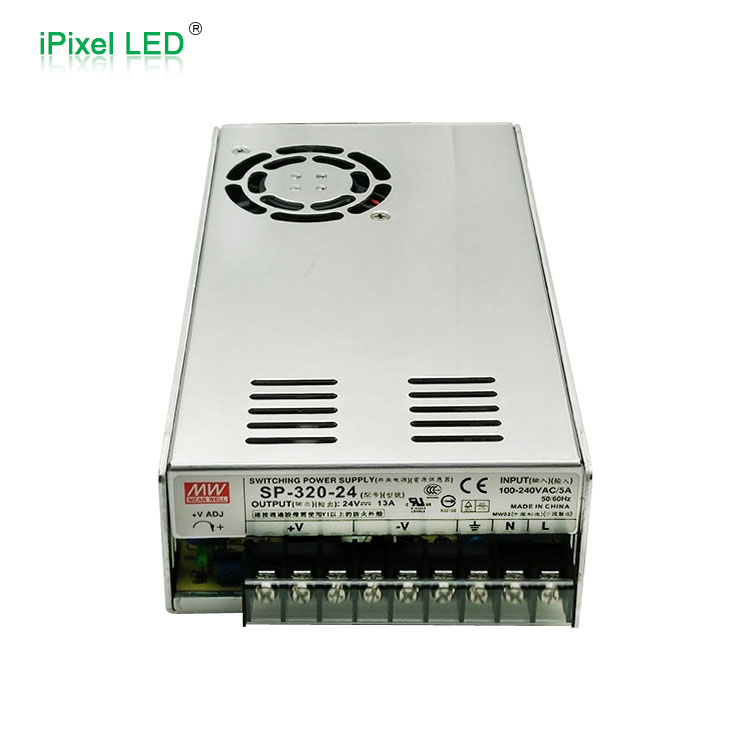

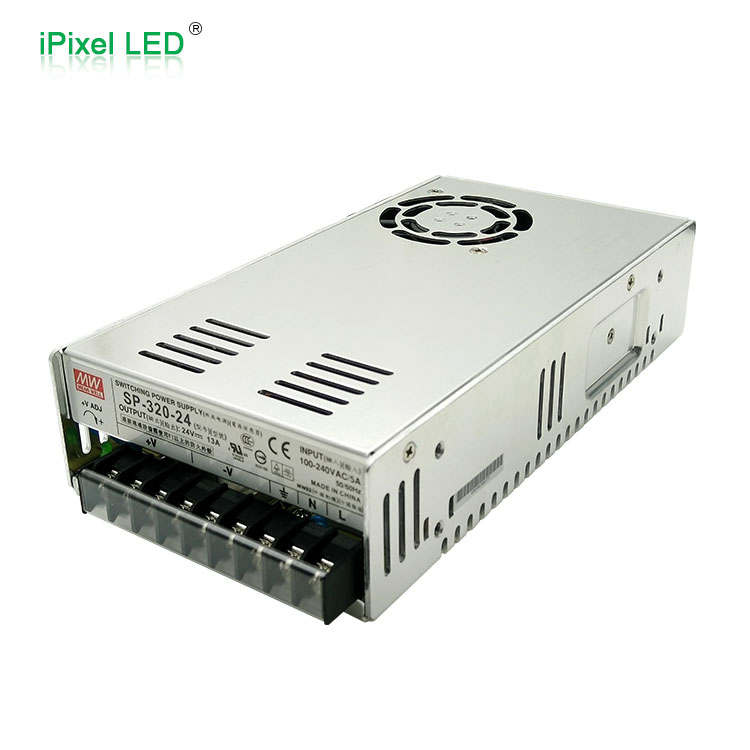

Product Model |
RSP-320-24 |
|
|
Output |
DC VOLTAGE |
24V |
|
RATED CURRENT |
13A |
|
|
RATED POWER |
312W |
|
|
RIPPLE & NOISE (max.) |
150mVp-p |
|
|
LOAD REGULATION |
±0.5% |
|
|
Input |
VOLTAGE RANGE |
88 ~ 264VAC 124 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
|
AC CURRENT |
115VAC:5A 230VAC:2.5A |
|
|
LEAKAGE CURRENT |
<1mA / 240VAC |
|
|
Protection |
OVERLOAD |
105 ~ 135% rated output power |
|
OVER VOLTAGE |
27.6~ 32.4V |
|
|
OVER TEMPERATURE |
Shut down o/p voltage, recovers automatically after temperature goes down |
|
|
Others |

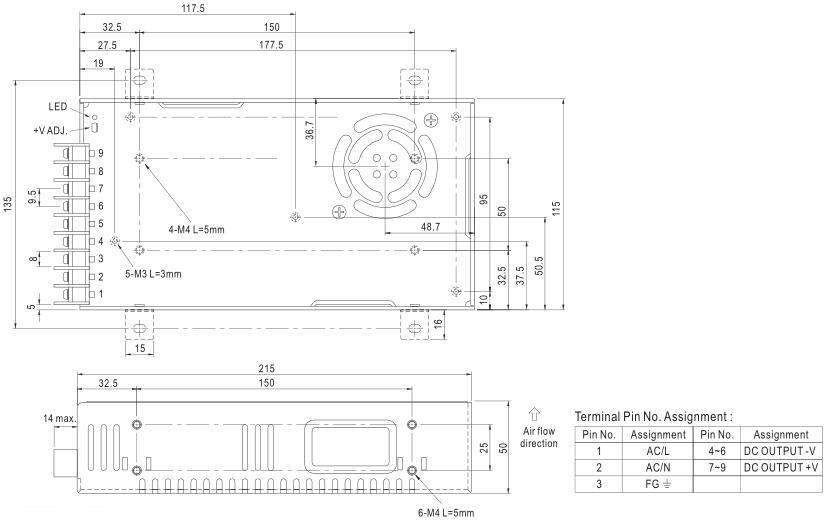

DIMENSION |
215*115*50mm (L*W*H) |
|

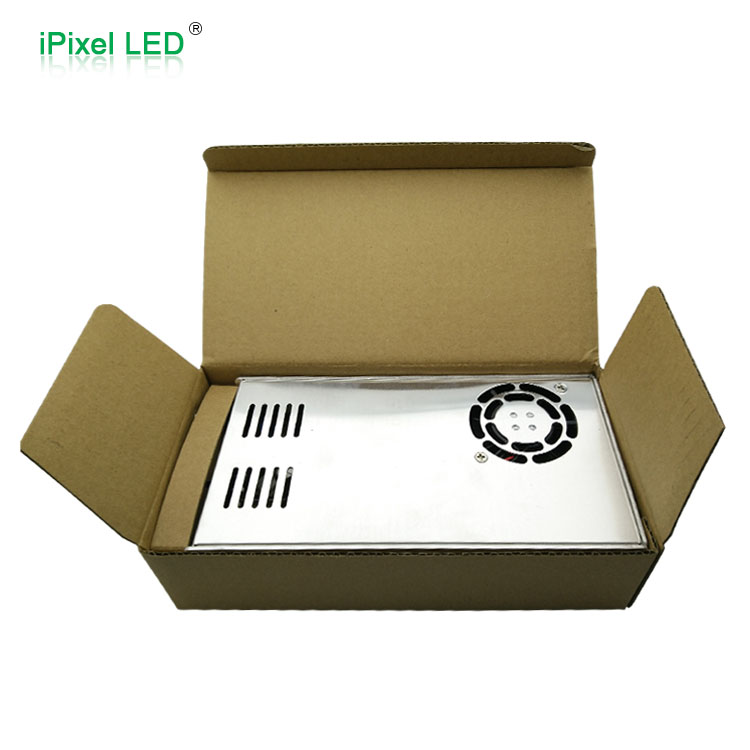

PACKING |
1.1Kg; 12pcs/14Kg/0.92CUFT |
|
1.All parameters NOT specially mentioned are measured at 230V AC input,rated load and 25℃ of ambient temperature.
2.Ripple & noise are measure at 20MHZ of bandwidth by using a 12twisted pair-wire terminated with a 0.1uf &4.7uf parallel capacitor.
3.Tolerance:includes set up tolerance ,line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment must be re-confirmed that it still meets EMC directives.For guidance on how to perform these EMC tests,please refer to“EMI testing of component power supplies.”
5.Derating may be needed under low input low input voltages.Please check the derating curve for more details.
