LED Power Supply

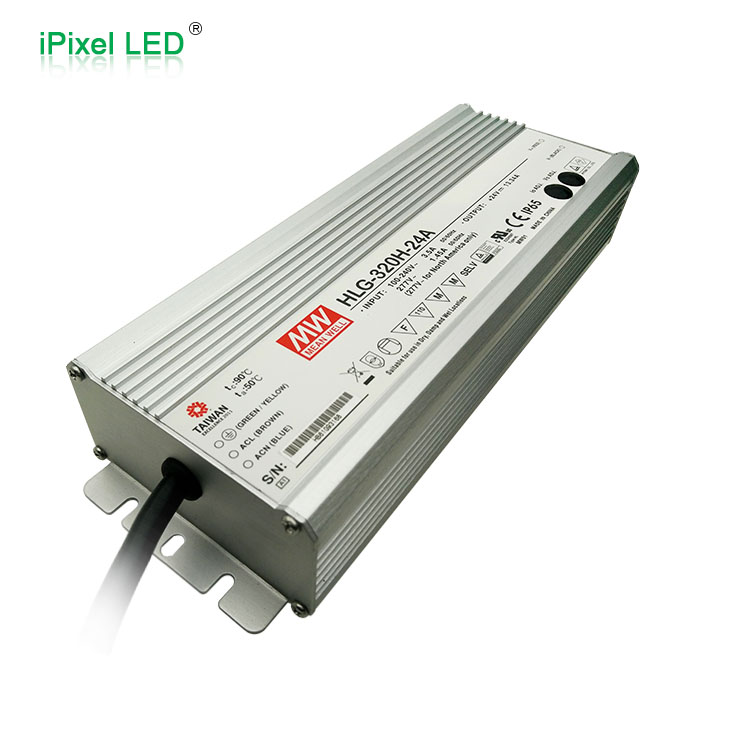

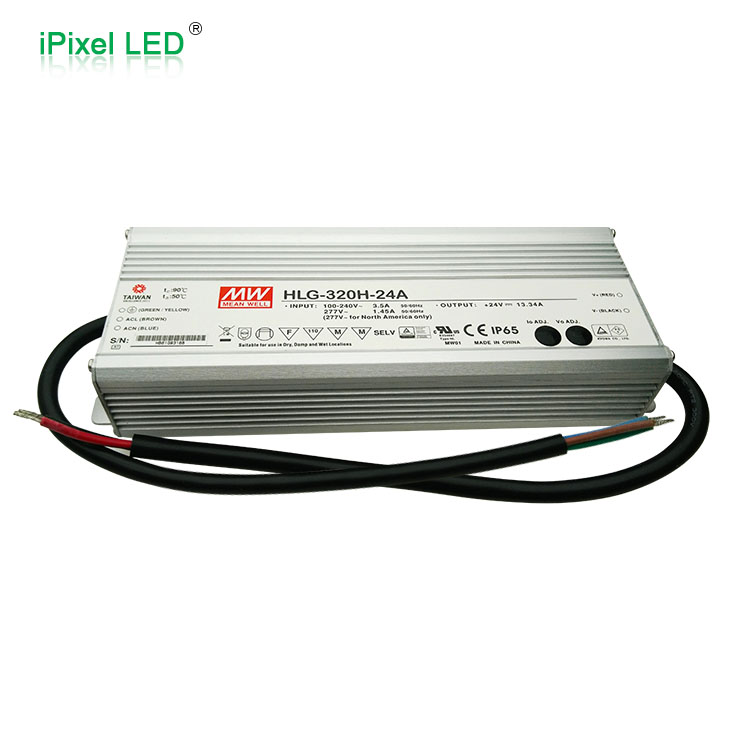

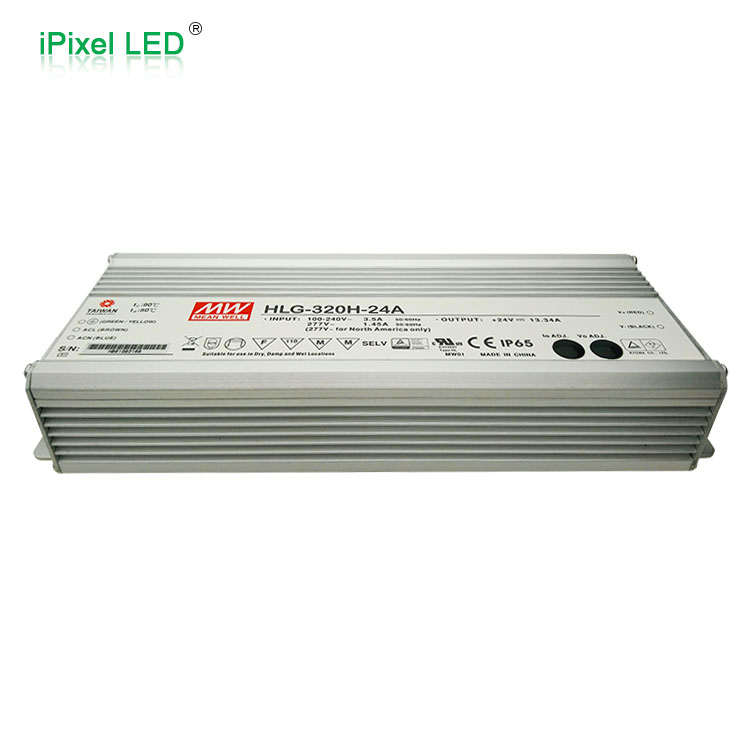

Meanwell HLG-320H-24A

Application:

1. LED strip,led light bar.

2. LED tube,led pixel light.

3. Light source,led screen.

4. LED module,Other Electronics.

Email: inquiry@ipixelleds.com

Share to

Product Parameters：

HLG-320H-24A	OUTPUT	DC Voltage	Rated Current	Rated Power	Ripple & Noise (max.) Note.2	Voltage ADJ. Range
	OUTPUT	24V	13.34A	320.16W	150mVp-p	21 ~ 26V
	INPUT	Voltage Range	Frequency Range	Leakage Current	MAX. No. of PSUs on 16A Circuit Breaker
	INPUT	90-305VAC 127-431VDC	47 ~ 63Hz	<0.75mA / 277VAC	1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC

Features:

1. Universal AC input/Full range(up to 305VAC).
2. Built-in active PFC function.
3. High efficiency up to 95%.
4. Protections:Short circuit/Over current/Over voltage/Over temperature.
5. Cooling by free air convection.
6. OCP point adjustable through output cable or internal potentiometer.
7. IP67/IP65 design for indoor or outdoor installations.
8. Type HL LED Driver for use in Class1,Division 2 hazzrdous location luminaires.
9. Three in one dimming function(1-10Vdc or PWM signal or resistance).
10. Suitable for dry/damp/wet location.

11. 7 years warranty (Note.10).

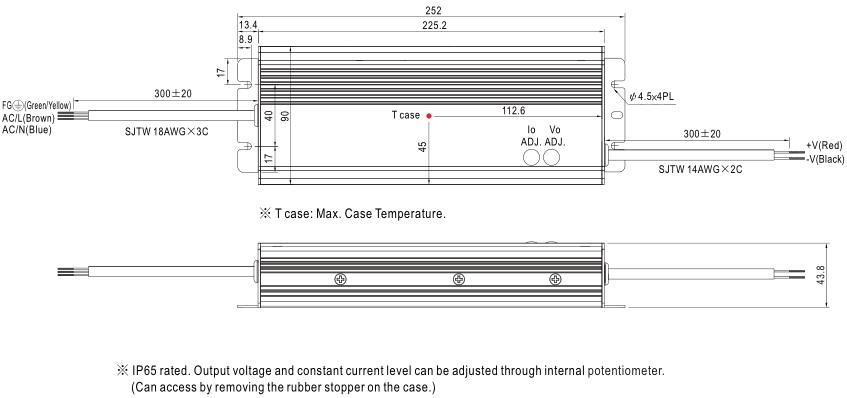

Size:
