LED Power Supply

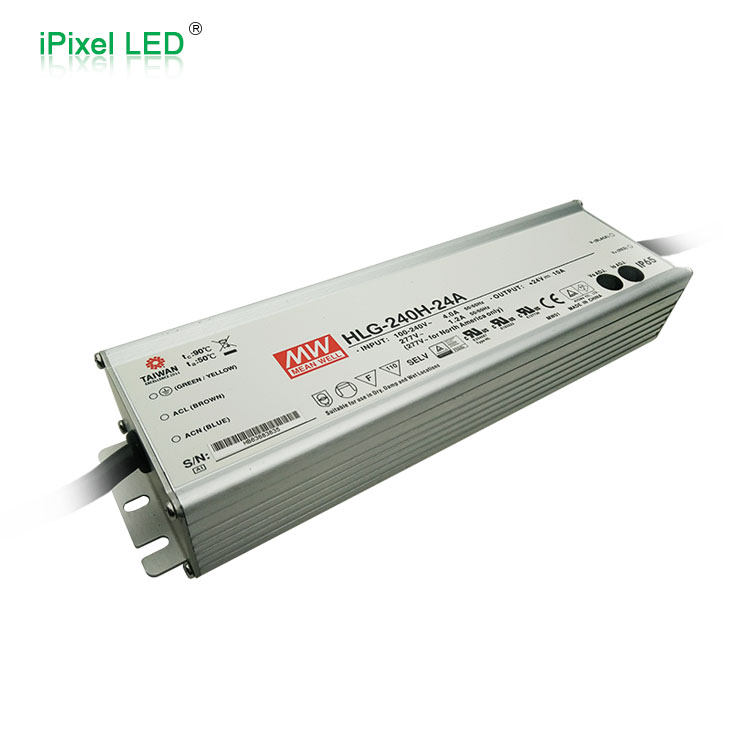

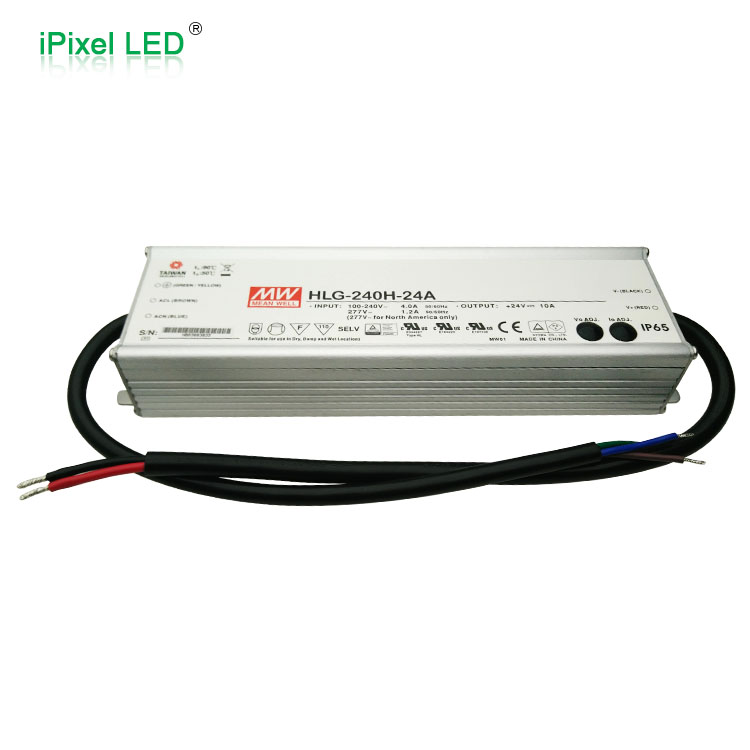

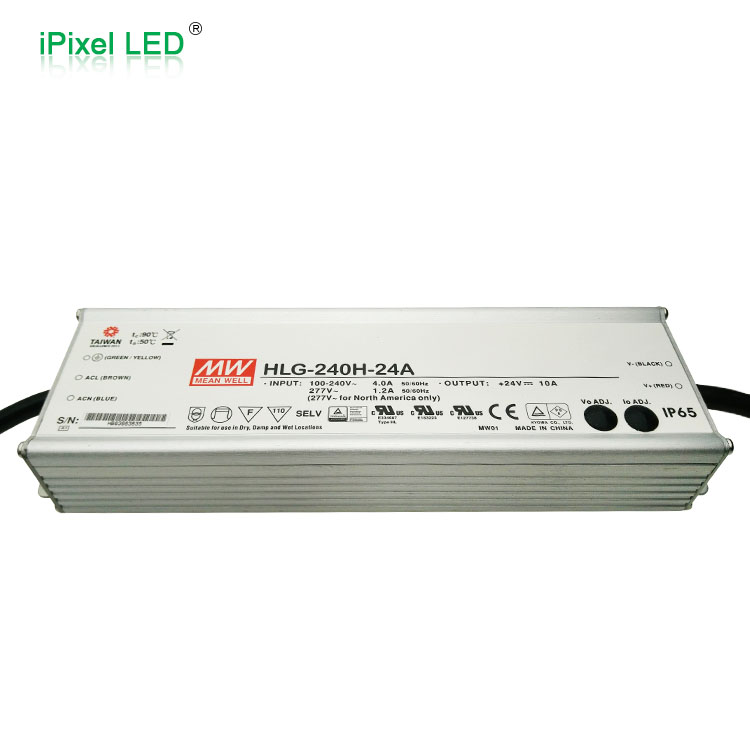

Meanwell HLG-240H-24A

Application:

1. LED strip,led light bar.

2. LED tube,led pixel light.

3. Light source,led screen.

4. LED module,Other Electronics.

Email: inquiry@ipixelleds.com

Share to

Product Parameters：

HLG-240H-24A	OUTPUT	Dc Voltage	Rated Current	Rated Power	Ripple & NoiseE (max.) Note.2	Voltage ADJ. Range
	OUTPUT	24V	10A	240W	150mVp-p	22.4~ 25.6V
	INPUT	Voltage Range	Frequency Range	Leakege Current	MAX. No. of PSUs on 16A Circuit Breaker
	INPUT	90-305VAC 127-431VDC	47 ~ 63Hz	<0.75mA / 277VAC	2 unit (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC

Features:

1. Universal AC input/Full range(up to 305VAC).
2. Built-in active PFC function.
3. Protections:Short circuit/Over current/Over voltage/Over temperature.
4. Cooling by free air convection.
5. OCP point adjustable through output cable or internal potentiometer.
6. IP67/IP65 design for indoor or outdoor installations.
7. Three in one dimming function(1-10Vdc or PWM signal or resistance).
8. Suitable for LED lighting and street lighting applications.
9. Compliance to worldwide safe regulations for lighting.
10. Suitable for dry / damp /wet locations.
11. Type "HL" for use in class 1,Division 2 hazardous(Classified) location luminaires.

12. 7 years warranty(Note.10).

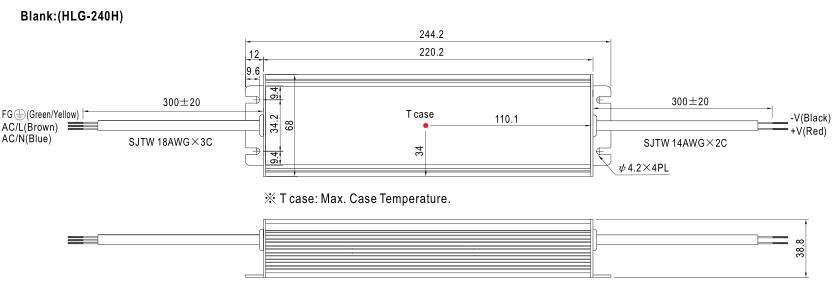

Size:
