Application:
1. Facrory control .
2. Automation apparatus.
3. Test and mesaurement instrument.
4. Laser related machine.
5. Burn-in broadcasting.
6. RF application.
|
Product Model |

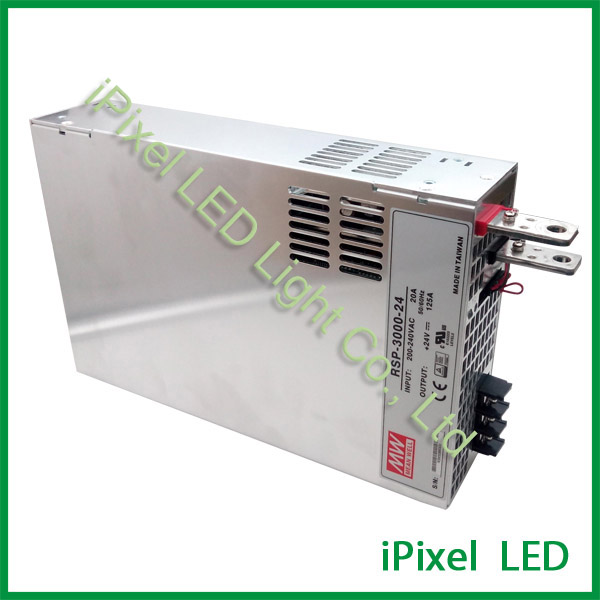

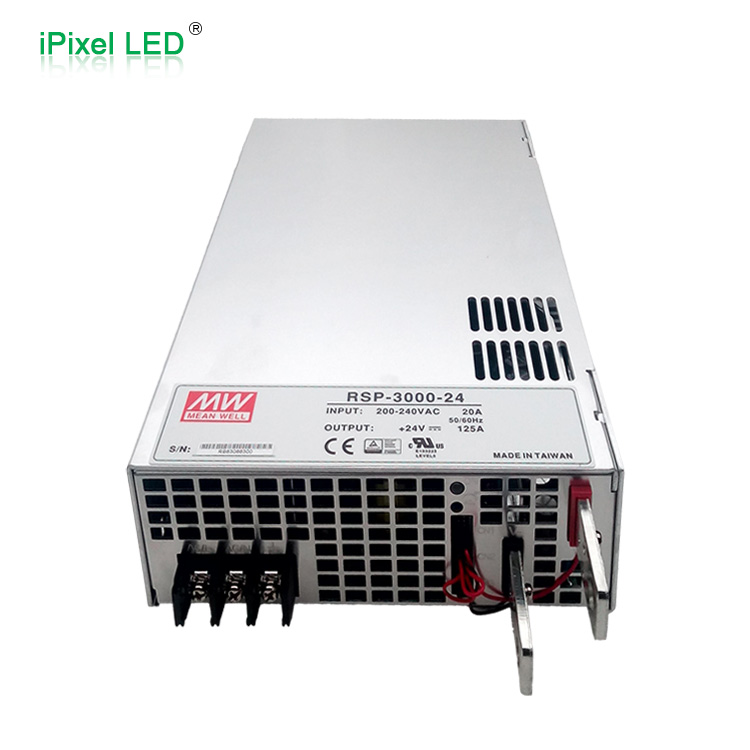

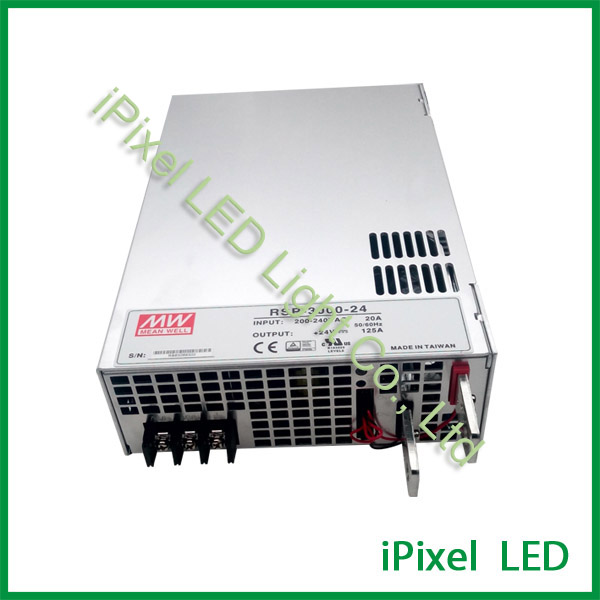

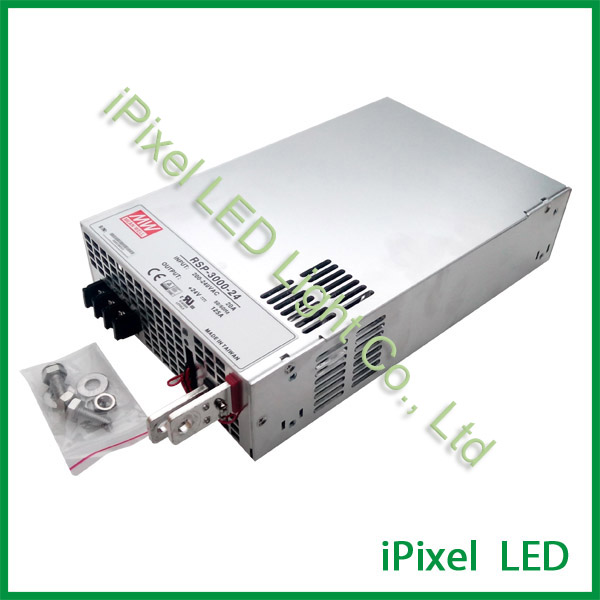

RSP-3000-24 |
|
|
Output |
DC VOLTAGE |
24V |
|
RATED CURRENT |
125A |
|
|
RATED POWER |
3000W |
|
|
RIPPLE & NOISE (max.) |
150mVp-p |
|
|
LOAD REGULATION |
±0.5% |
|
|
Input |
VOLTAGE RANGE |
180 ~ 264VAC 254 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
|
AC CURRENT |
20A / 180VAC 16A/230VAC |
|
|
LEAKAGE CURRENT |
<2.0mA / 240VAC |
|
|
Protection |
OVERLOAD |
100 ~ 112% rated output power |
|
OVER VOLTAGE |
28 ~ 33.6V |
|
|
OVER TEMPERATURE |
Shut down o/p voltage, recovers automatically after temperature goes down |
|
|
Others |
DIMENSION |
278*177.8*63.5mm (L*W*H) |
|
PACKING |
4Kg; 4pcs/16Kg/1.81CUFT |
|
1. AC input 180 - 264VAC
2. Built-in active PFC function
3. High efficiency up to 91.5%
4. Forced air cooling by built-in DC fan
5. Output voltage programmable
6. Active current sharing up to 9000W(2+1)

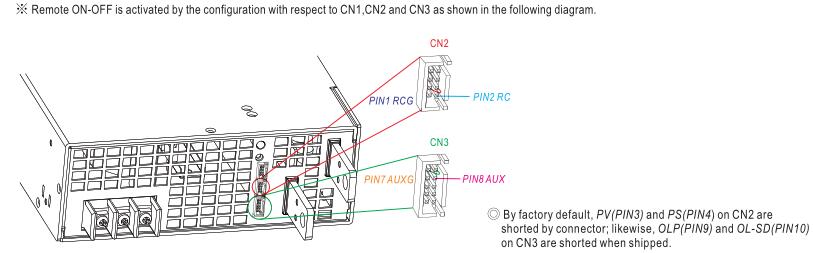

7. Buit-in remote ON-OFF control/remote sense/auxiliart power/power OK signal
9. Protections: Short circuit / Overload / Over voltage / Over temperature
10 Optional conformal coating
11. 5 years warranty
