1000W Single Output Power Supply

Application:

1. Industrial automation machinery.
2. Industrial control system.
3. Mechanical and electrical equipment.
4. Electronic instruments.

5. Equipments or apparatus.

6. Household appliances.

Email: inquiry@ipixelleds.com

Share to

Product Parameters：

Product Model	SE-1000-24
Output	DC VOLTAGE	24V
	RATED CURRENT	41.7A
	RATED POWER	1000.8W
	RIPPLE & NOISE (max.)	200mVp-p
	LOAD REGULATION	±0.5%
Input	VOLTAGE RANGE	90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	AC CURRENT	17.5A / 115VAC 10A/230VAC
	LEAKAGE CURRENT	<3.5mA / 240VAC
Protection	OVERLOAD	105 ~ 125% rated output power
	OVER VOLTAGE	28 ~ 32.4V
	OVER TEMPERATURE	70℃±5℃(TSW1) detect on heatsink of power transistor
Others	DIMENSION	27812763.5mm (LWH)
Others	PACKING	2.5Kg; 6pcs/16Kg/1.38CUFT

Features :

1. AC input active surge current limiting

2. AC input range selected by switch
3. Protections: Short circuit / Overload / Over voltage / Over temperature
4. Forced air cooling by built-in DC ball bearing fan
5. High power density 7.3w/ inch³
6. With DC_OK signal output

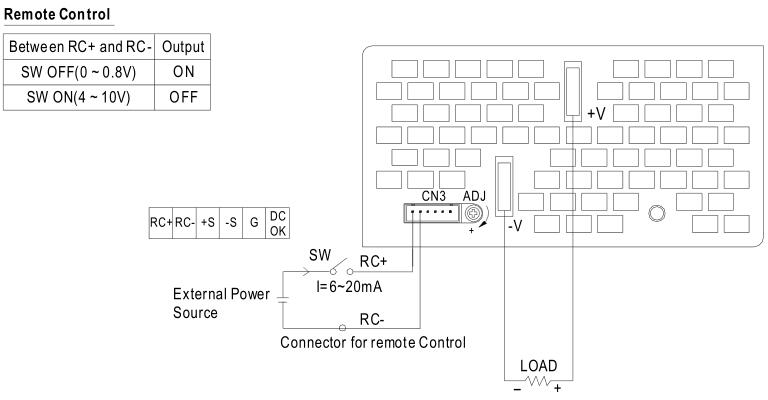

7. Built-in remote ON-OFF control
8. Built-in remote sense function
9. UL / CUL approved

10. Low cost

Size:
