Full Color LED Strip

Addressable S Shape LED strip

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Share to

Addressable S Shape LED strip

Product Parameter:

P/N	Light Source	LED Qty	IC	Net Weight	Size	Voltage	Power (W/M)	Waterproof	Luminance(MCD) Per meter
SSK6812	5050 RGB	48leds/m	Sk6812	0.045KG	1000mm*5mm	5V	12W	IP20	R:19200 G:33600 B:9120

Features :

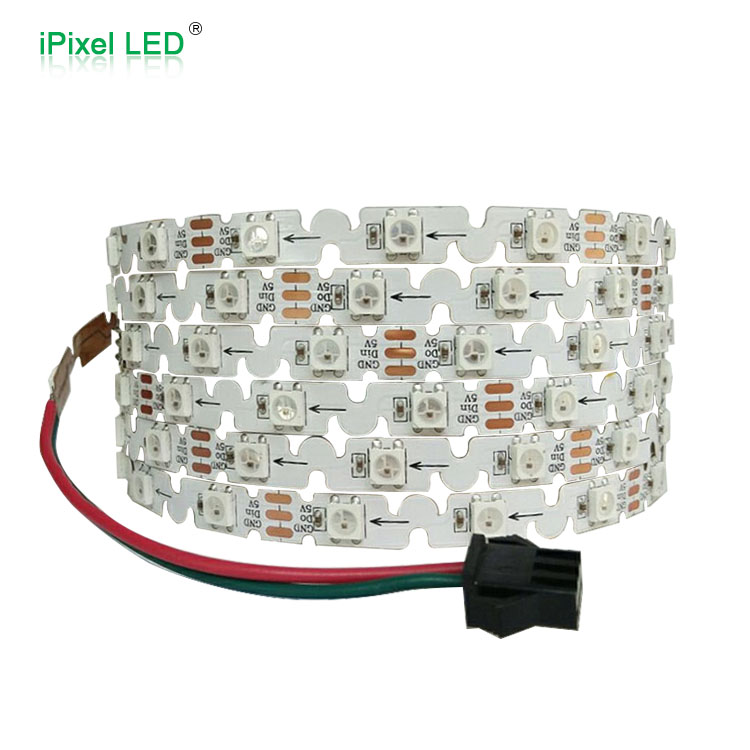

1.This is a flexible-addressable-cuttable-bendable led strip,

2.There are 48pcs LEDs in a meter and 3 LED in one set and it's only cuttable,

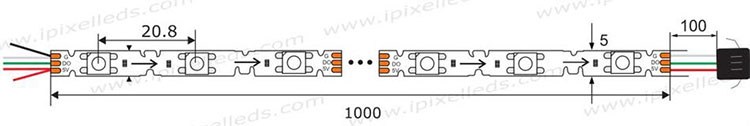

3.leds (65mm length),

3.The width is 2.5mm on the conner (between 2 LED),

4.White color painting with a Arrow on each LED guide the direction of signal,

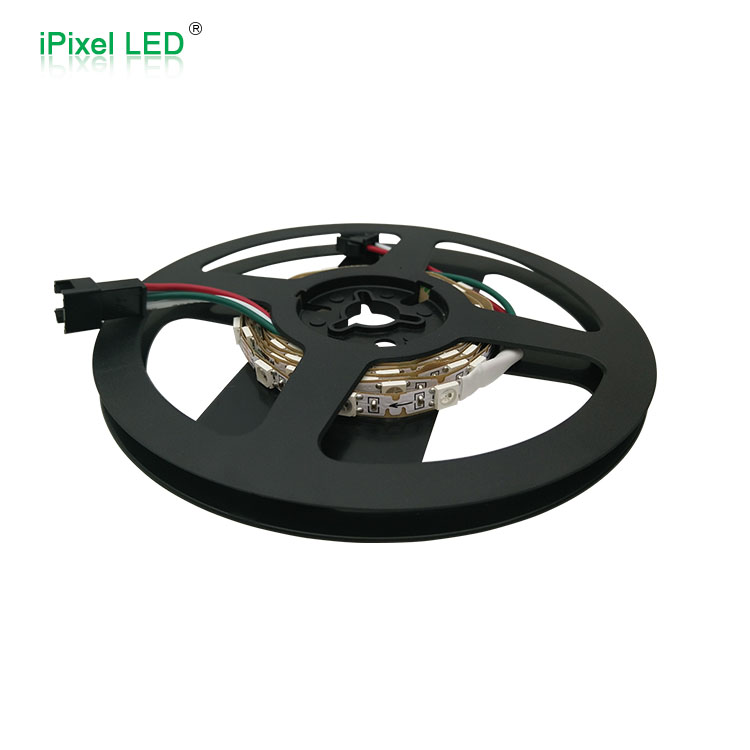

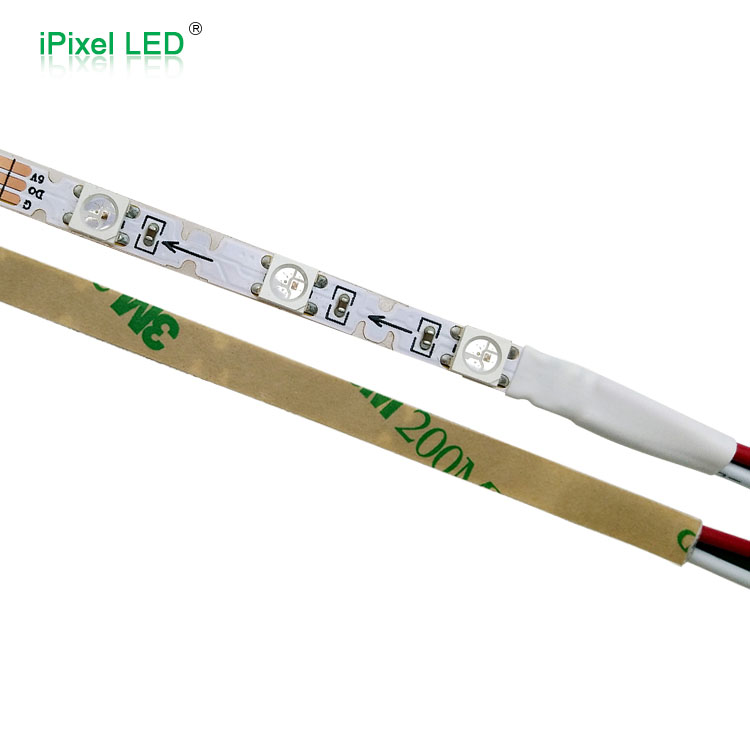

5.5mm width PCB ,3M tape attached on backside of flex and it comes 1m per reel,

6.But you can connect as many as you can just make sure feed enough power to it,

7.We only provide this strip IP20 only.

Connection:

YouTube's Video
