iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.
Product Parameter:
| P/N |
Beam angle |
VCC |
Power/M |
LED Qty/m | Size |
IC chip
|
PCB Color | Pixel |
IP Rate |
| S602811 |
120 deg |
DC12V |
14.4W |
5050 RGB 60leds/m | 5000*10mm | WS2811 | White/ Black | 20 pixels |
IP20/IP65 |

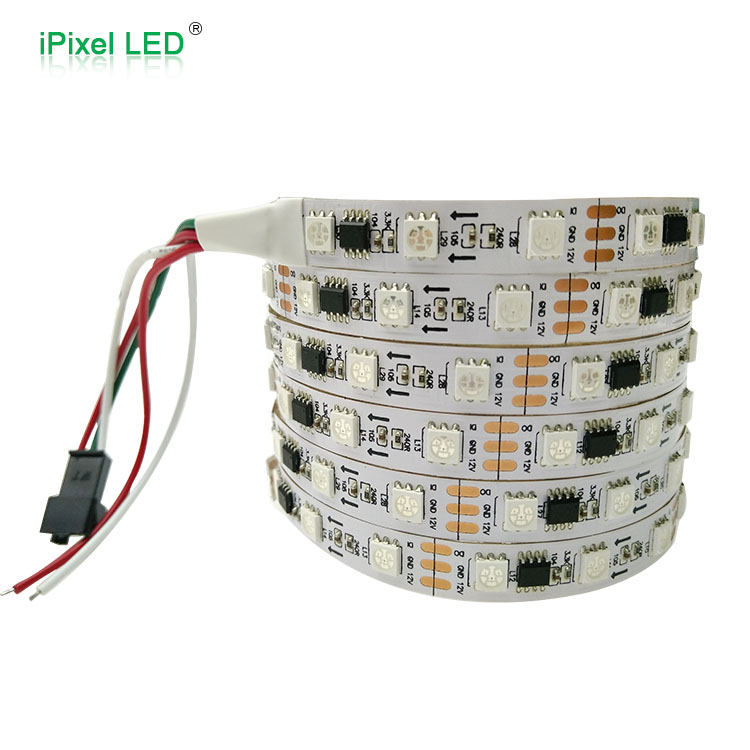

1.This addressable led strip consist of 5 meters in a reel,60 pcs RGB led per meter, three leds one group, and each group with a WS2811 IC.
2.Flexible PCB: White color, PCB width 10mm.
3.Waterproof-silicon tube coating: W14*H4mm.
4.DC12 v available,constant voltage operation.
5.Voltage drop from start to end of 5M +/- 2v.

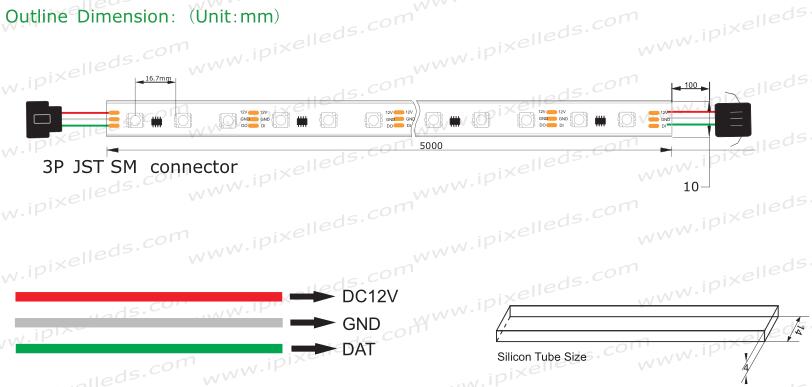

6.3pin JST SM connector(non-waterproof) soldered in each end of strip, Extra 2 single wire for powering in input side.
7.Control: SD controller,DMX decoder,Artnet etc.
8.Customized length available.
