Application:
. Hotels,restaurants,nights clubs,
. Shopping malls,various shops,
. Coffee/wine bars, furniture light
. Cinemas,beauty centers,
. Coffee/wine bars, furniture light.

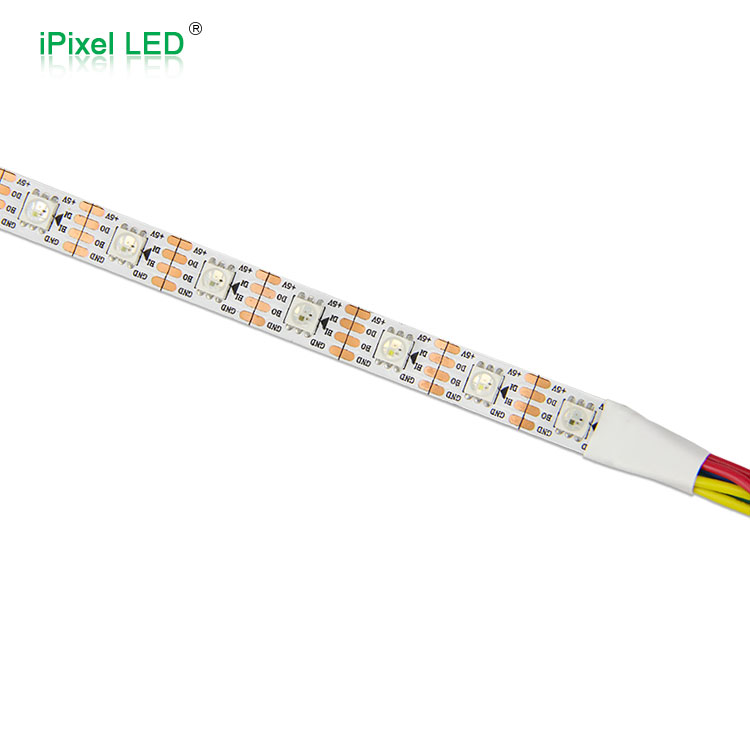

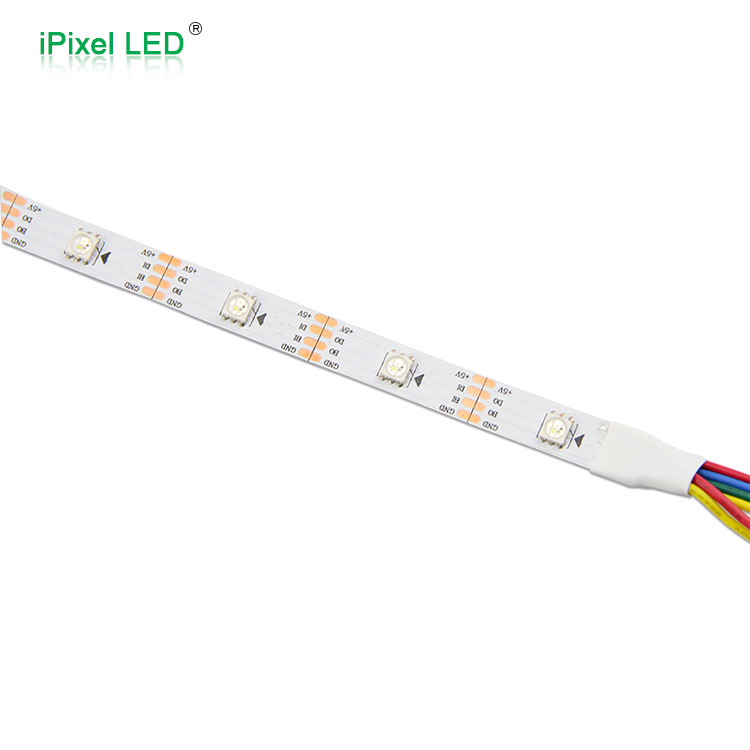

WS2813 30/60/144LEDs/m LED Strip
Product Parameter:
| P/N |
Beam angle |
VCC |
Power/M |
LED Qty/m | Size(mm) |
IC chip
|
PCB Color |
Lumen per meter |
IP Rate |
| S302813 |
120 deg |
DC5V |
7.2W(MAX) |
5050 30leds/m | 5000*10 | WS2813 | White& Black |
R:12000 G:21000B:5700 |
IP20/IP65 |
|
S602813 |
120 deg |
DC5V |
14.4W(MAX) |
5050 60leds/m |
5000*10 |
WS2813 |
White& Black |
R:24000 G:42000B:11400 |
IP20/IP65 |
| S1442813 |
120 deg |
DC5V |
34w/m (MAX) |
5050 144leds/m |
1000*12 | WS28113 |
White& Black |
R:57600 G:100800 B:27360 |
IP20/IP65 |
1
Features:
1.WS2813 a new version addressable LED based on WS2812B.
2.The advantage is when 1pcs LED burn, the other LED will keep working.
3.It's 5meters in a reel and 30 Pixel/LED per meter cut-able of each unit.

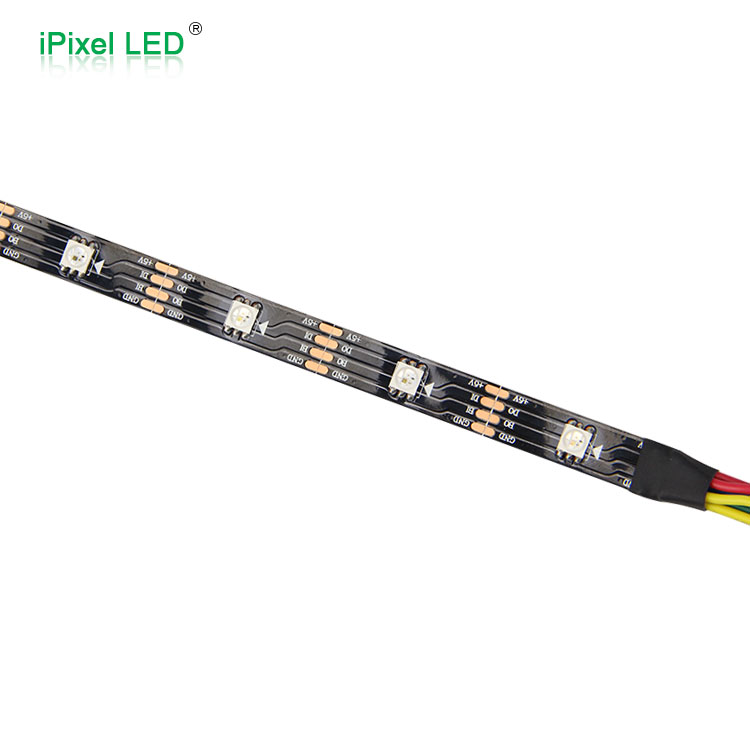

4.White & black both color available on surface of
5.LED chip and PCB, but our standard one is white LED and White color PCB also.
6.DC5V input, suggest inject Power from start and end of the reel.
7.3M adhesive attached on strip,waterproof version IP65,silicon tube coating.
8.With a pair of JST SM connector (IP20).

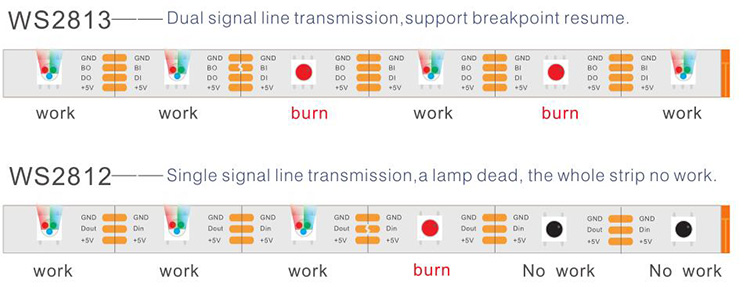

Comparative Advantage
Outline Dimension

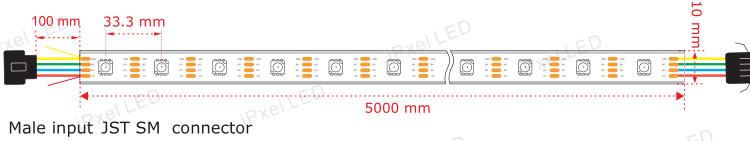

S302813-W
