Full Color LED Strip

Side emitting SK6812 RGB LED stripe

Application:

1. Hotels, restaurants, nights clubs.

2. Back lighting, edge lighting.

3. Advertising signs, brightening.

4. Dancefloor background.

Share to

Side emitting SK6812 RGB LED stripe

Product Parameter:

Product Number	Light Source	Beam Angle	LED Quantity	Size （mm）	Emitting Color	Operating Voltage	Power (W)	Control (IC)	Waterproof Rating
S60SK6812SIDEV5	SK6812SIDE	120°	60leds/pcs	L1000*W8mm	Full color	DC5V	9±0.5w/1m	SK6812	IP20/IP67
S90SK6812SIDEV5	SK6812SIDE	120°	90leds/pcs	L1000*W8mm	Full color	DC5V	13.5±1w/1m	SK6812	IP20/IP67
S144SK6812SIDEV5	SK6812SIDE	120°	144leds/pcs	L1000*W8mm	Full color	DC5V	21.6±1w/1m	SK6812	IP20/IP67

Features:

based on the old type of side view LED like 335 or 1206 and more ,there are only single color and RGB
this new SK6812 side emitting addressable LED comes out under the demand of edge lighting with limited
size for install the strip
this skinny side lit LED strip we have 3 different version of LED quantity 60/90/144 per meter
but all the PCB wide are 8mm and we provide IP20 /IP67 two version, the waterproof type housing

by silicon tube with JST connectors
each single LED per section allow you cut each unit so you can get the length wanted by your self
the standard length 1meter per reel

Outline Dimension:

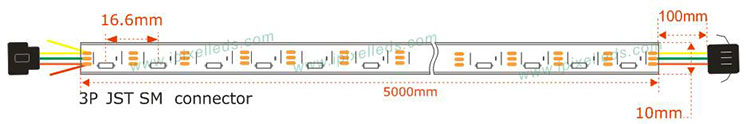

60 LEDs/m

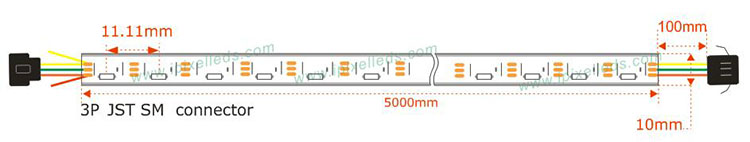

90 LEDs/m

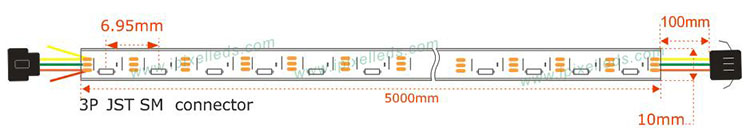

144 LEDs/m

side view
