Application:
1. Hotels ,restaurants, nights clubs, edge light，
2. Living rooms, coffee / wine bars, back lighting,
3. Recreational machines, playstation,
4. TV, dancefloor background, shopping malls,

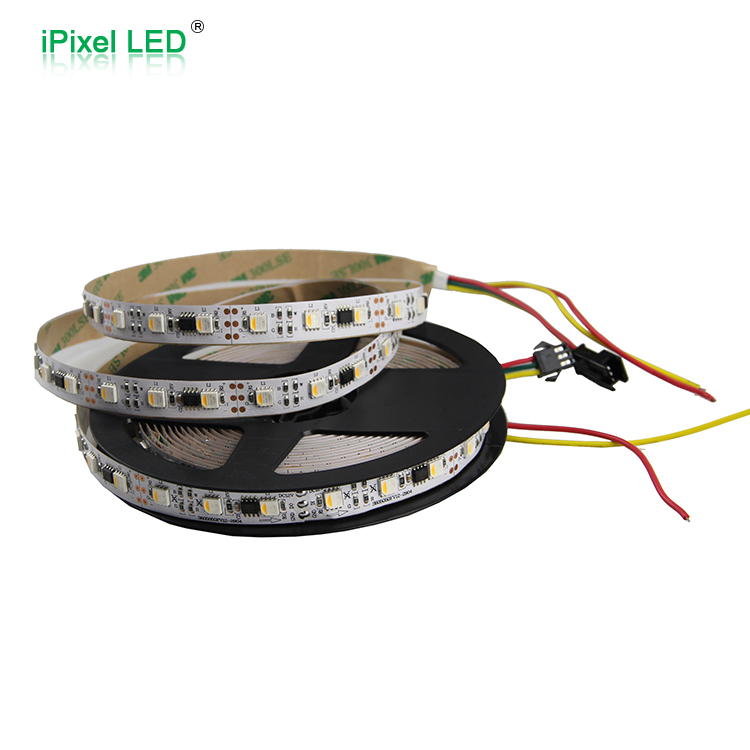

5050 RGBW Pixel LED flex
Product Parameter:
Product Number
S012060CB4ST
Light Source
SMD 5050 RGBW
Beam Angle
120°
LED Quantity
60leds/m
Size （mm）
L 5000* W 12 mm
LED’s Pitch (mm)
16mm
Power ( W )
19.2W/M
Color temperature
R:630nm G: B: 460nmWhite:6000-6500K /WW:2800-3200K
Lumens
R:159lm G: B: 38lm W/WW : 558lm
Operating Voltage
DC12V
Control (IC)
UCS2904
Waterproof Rating
IP20 / IP65
Operation Temperature
-40℃-40℃
Features:
- As the regular Digital RGB flex cannot play pure white color we developed this RGBW pixel flexible strip，
- It comes 5 m in a reel , 3 LED per pixel per section with a cutting mark per 50mm，
- PCB board only has white color available，
- DC12V constant voltage operation ,it request to feed the power from each end of 5meters as the Voltage drop from the reel，
- Total 20 Pixels and 64 DMX channel per meter，
- White chip has warm white and pure white , customized CCT available，
