Application:
1. Hotels ,restaurants, nights clubs, edge light，
2. Living rooms, coffee / wine bars, back lighting,
3. Recreational machines, playstation,
4. TV, dancefloor background, shopping malls,
Product Parameter:
|
Product Number |
S012060CC4ST |
|
Light Source |
SMD 5050 RGBW |
|
Beam Angle |
120° |
|
LED Quantity |
60leds/m |
|
Size （mm） |
L 5000* W 12 mm |
|
LED’s Pitch (mm) |
16mm |
|
Power ( W ) |
19.2W/M |
|
Color temperature |
R:630nm G: B: 460nmWhite:6000-6500K /WW:2800-3200K |
|
Lumens |
R:159lm G: B: 38lm W/WW : 558lm |
| Operating Voltage | DC24V |
|
Control (IC) |
UCS2904 |
|
Waterproof Rating |
IP20 / IP65 |
|
Operation Temperature |
-40℃-40℃ |
- As the regular Digital RGB flex cannot play pure white color we developed this RGBW pixel flexible strip，

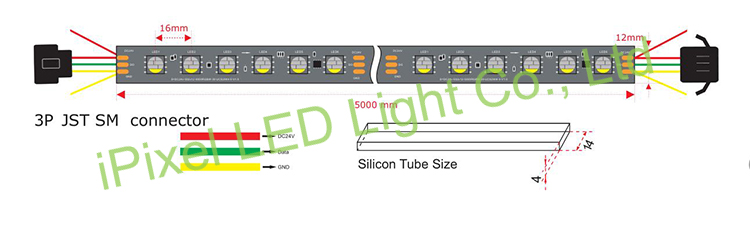

- It comes 5 m in a reel , 6 LED per pixel per section with a cutting mark per 100mm，
- Waterproof made by silicone tube housing , W14*H4mm，
- White chip has warm white and pure white , customized CCT available，
- PCB board only has black color available，
- Total 8 Pixels and 32 DMX channel per meter，
- DC24V constant voltage operation ,it request to feed the power from each end of 5meters as the Voltage drop from the reel，
