5. Coffee/wine bars, furniture light.

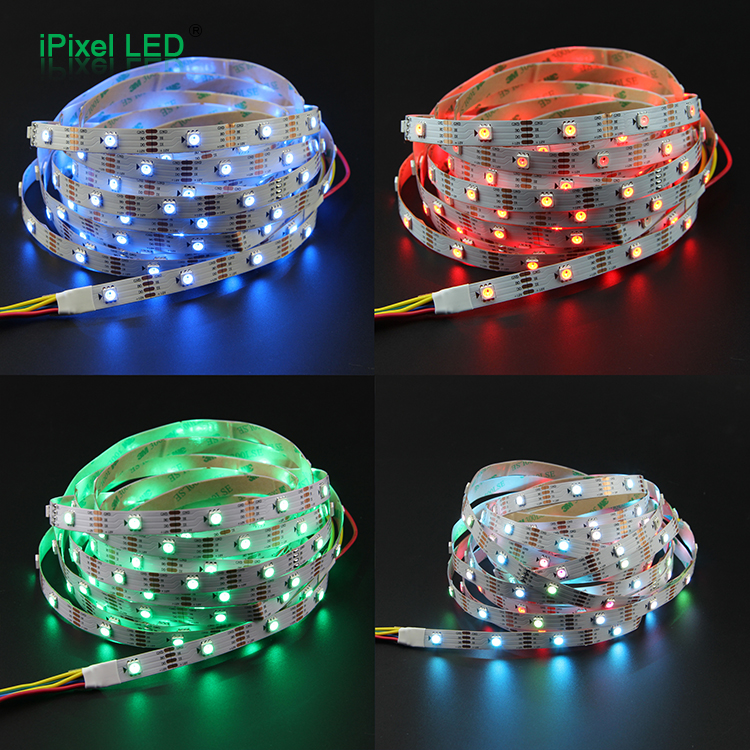

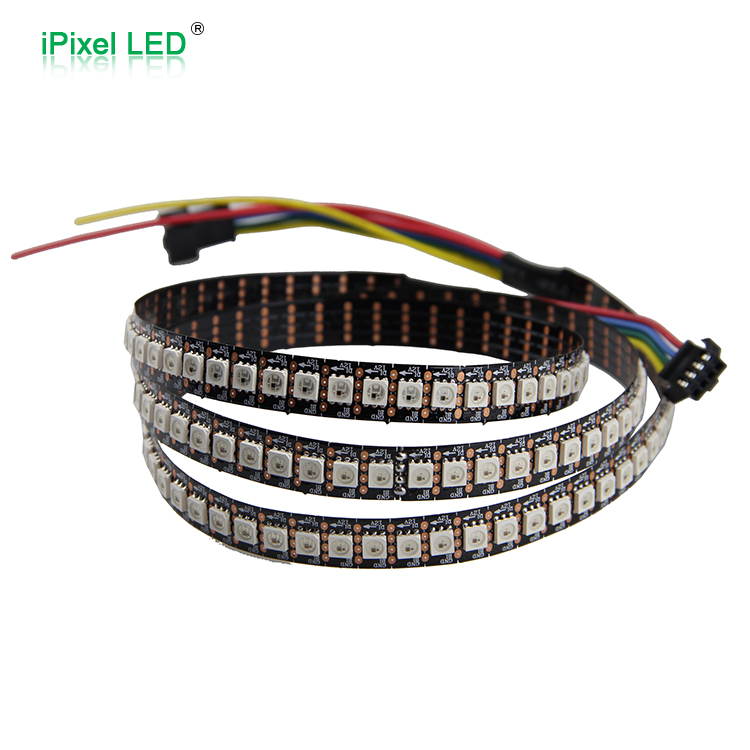

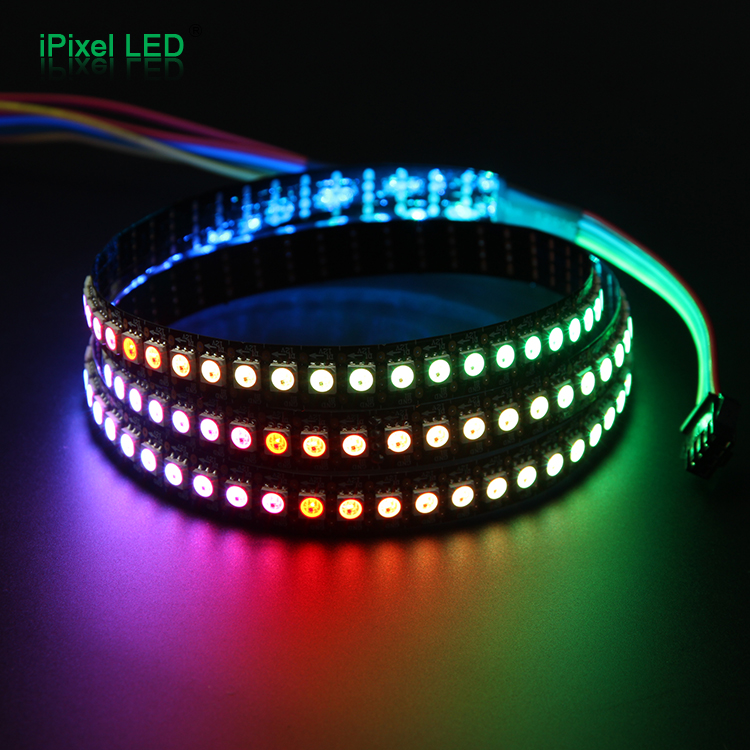

WS2815 12V Addressable LED Strip
Product Parameter:
|
Product Number |
S010030CB3SB7 |
S010060CB3SB7 |
S012144CB3SB7 |
|
Light Source |
WS 2815 RGB |
WS 2815 RGB |
WS 2815 RGB |
|
Beam Angle |
120° |
120° |
120° |
|
LED Quantity |
30leds/m |
60leds/m |
144leds/m |
|
Pixel Pitch(mm) |
P33mm |
P16.66mm |
P6.9mm |
|
Emitting Color |
Full color |
Full color |
Full color |
|
Operating Voltage |
DC12V |
DC12V |
DC12V |
|
Power (W) |
7.5w/m (max) |
15w/m (max) |
36w/m (max) |
|
PCB color |
White/Black |
White/Black |
White/Black |
|
Size（mm） |
L 5000* W 10 mm |
L 5000* W 10 mm |
L 1000* W 12 mm |
| IP Level | IP20/IP65 |
IP20/IP65 |
IP20/IP65 |
|
Wavelength |
R:635nm G:510nm B:470nm (30leds) |
R:635nm G:510nm B:470nm (60leds) |
R:635nm G:510nm B:470nm (144leds) |
Features:
- This is a new chip again from worldsemi family ,based on WS2812B and WS2813.
- To solve the chip breakdown and Strip's Voltagedrop ,now we welcome WS2815.
- The Flex is 30/60/144 Pixel/ LED per meter ,and 5 m in a roll we provide black and white color board.
- same as our other addressable tapes, it's cut-able per unit LED with a large soldering Pad which makes easy to re-solder again.

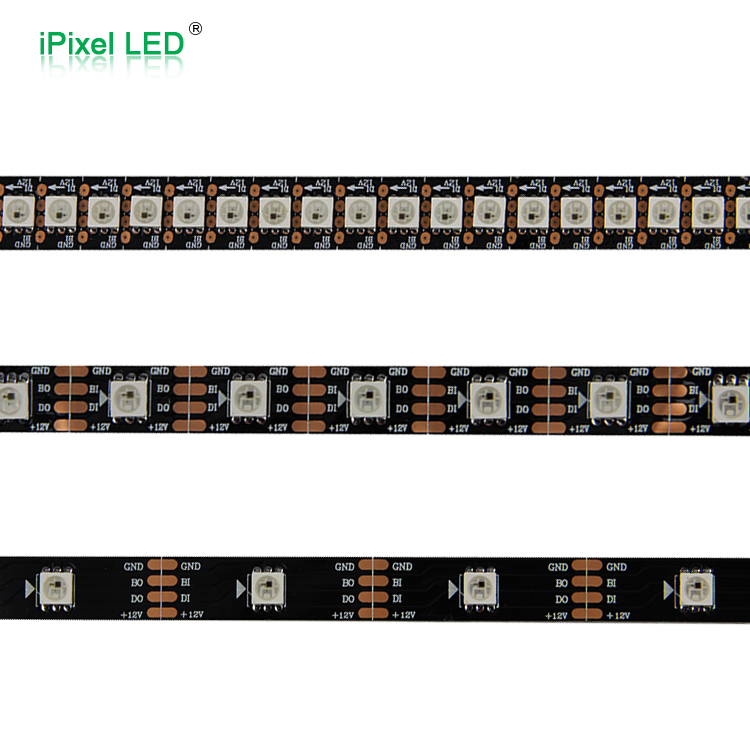

- the PCB printed +12V DI ,BI, GND , both DI and BI means signal but it's only required to link the DI cable to your controller.
- this PCB made by 3Ounce copper for more reliable application.
- 3 M tape attached on backside of strip.
- again we suggested you power it every 5 meters even it's 12V addressable.

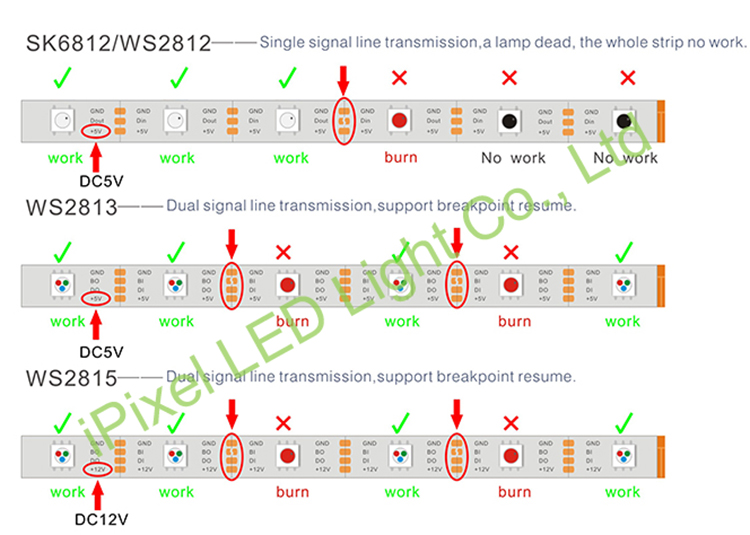

Comparative Advantage：

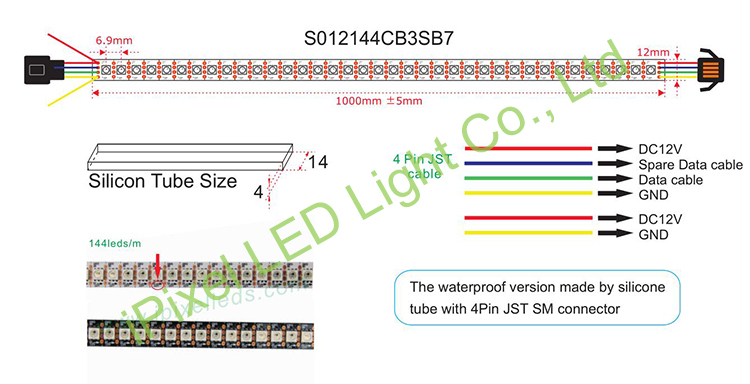

Conncetion:
Youtube's Video：
