| Addressable LED Metero Tube—— Single Side |
| Release time:2016-08-01 11:41:50 | Browsing times： |

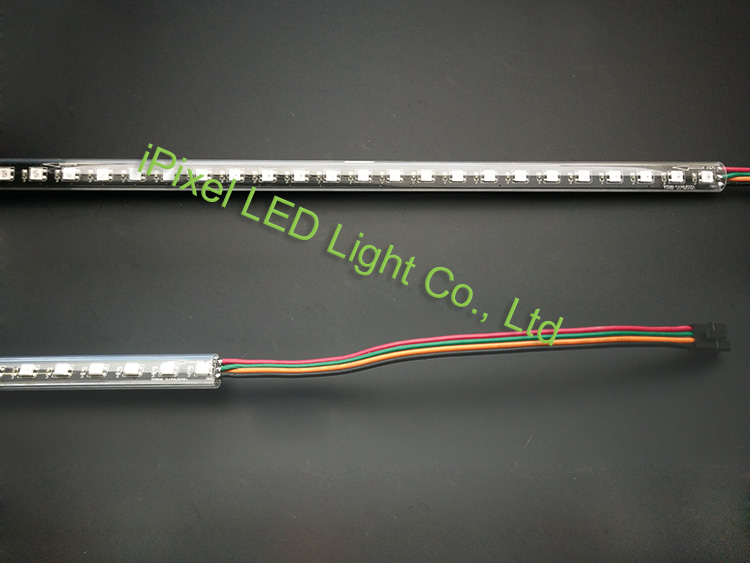

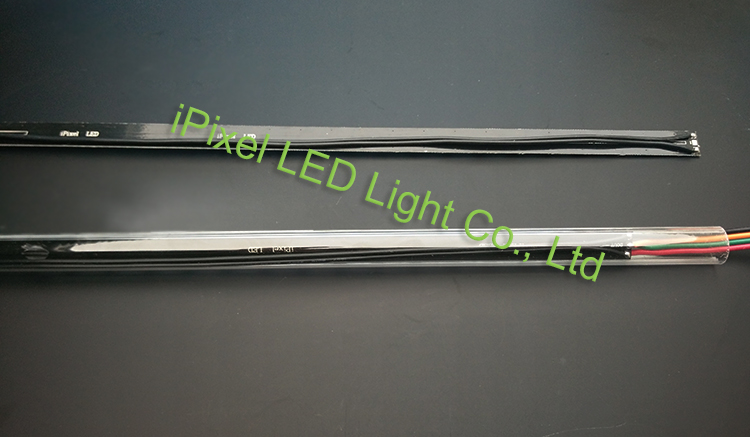

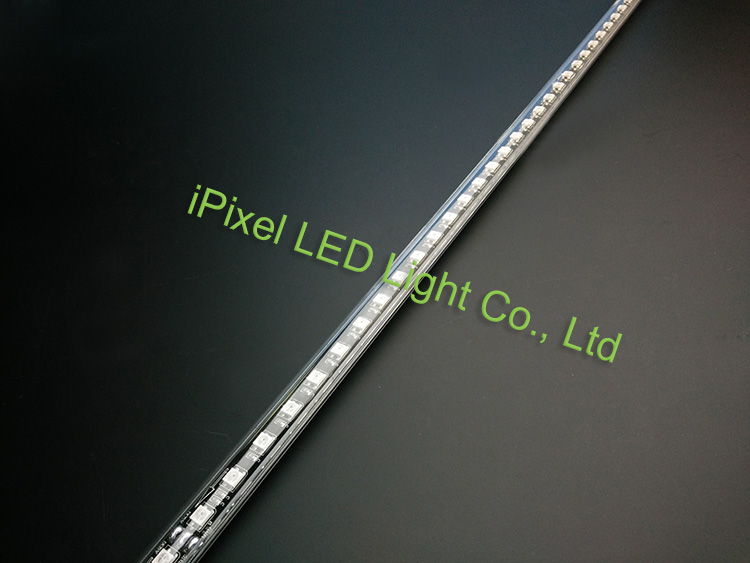

| A new meteor tube project, an old customer from UK. This tube with 1360mm long, 15mm tube diameter,84pcs addressable SK6812 LEDs,and single side PCB.The both end don't need cap to seal the tube and signal direction is from top to end, then to top,but our customer asked only weld a 4pin connector(Din, Dout, GND,DC5V+) on the top side,that means the front side solder 3 wires(Din GND,DC5V+), and back side solder a Dout cable. In order to avoid voltage drop, we will weld a 2pin cable (GND and dc5v+) from back top to middle to end for each tube.
|
