Customized Trapezoid LED Rigid Panel
Release time:2016-08-11 18:45:05 | Browsing times:

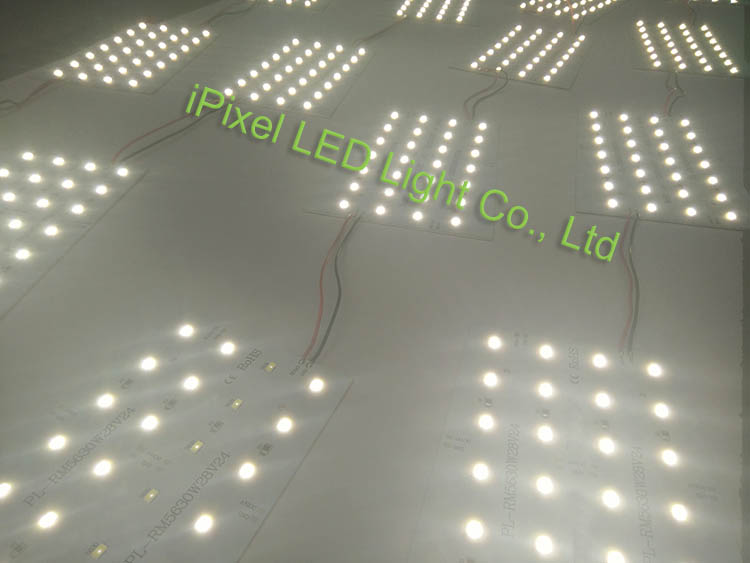

This is a project from France, they will use the rigid PCB board, but these PCB not square, not rectangle,

but trapezoidal.

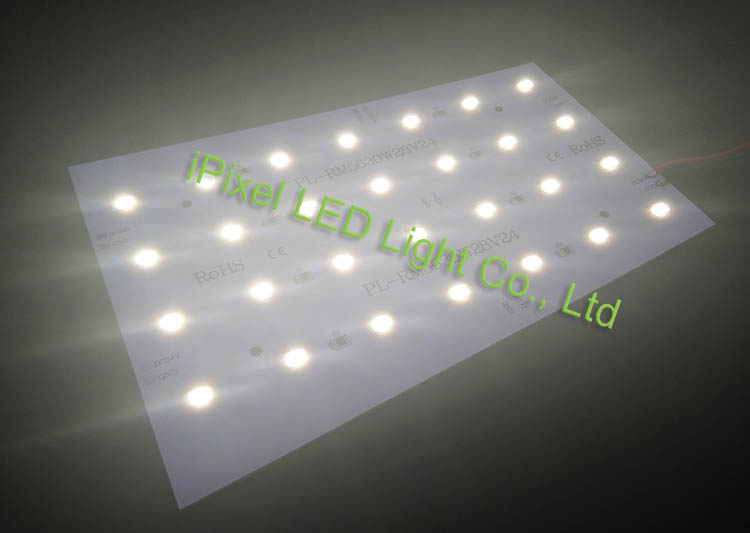

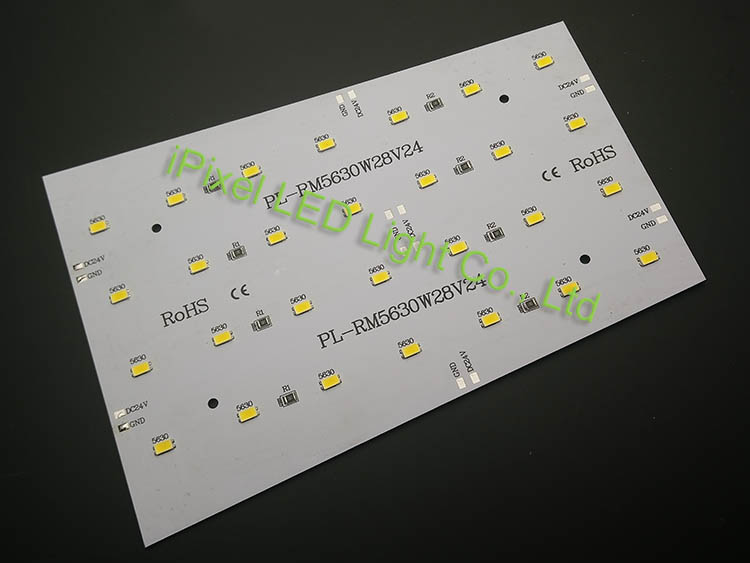

They asked use 5630 4000K CCT LED chip, each panel have 7x4=28LEDs, DC24V, 8W.the size is

10x12.5x18(high)cm, and this PCB board with aluminum materials, 1.5mm thickness,it will be more good

 for the heat dissipation.

Each panel require 4pcs 3mm diameter hole on the specific position for thier installation.
It's a indoor use project, so the PCB is IP20. of course we also can work it to be waterproof version.
