Products
LED Power Supply

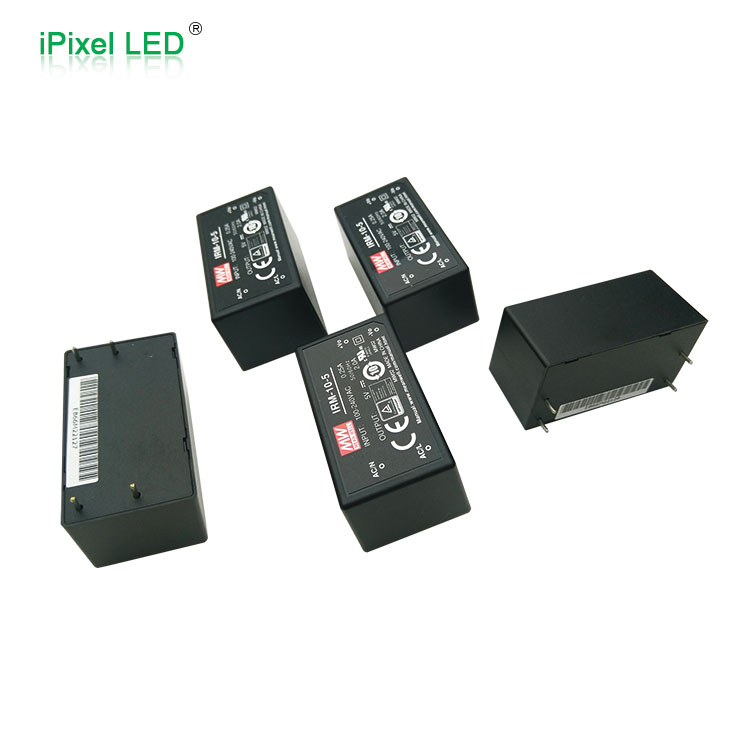

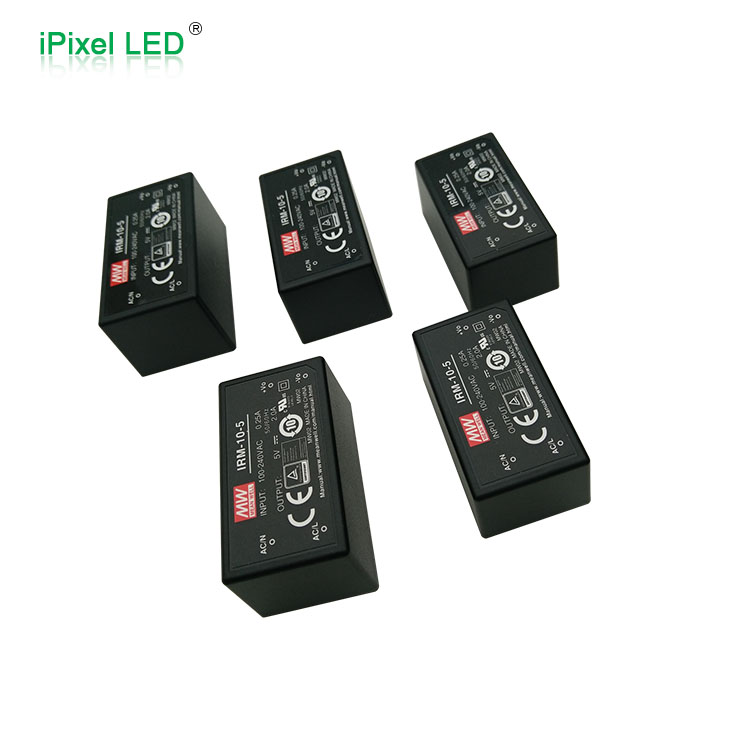

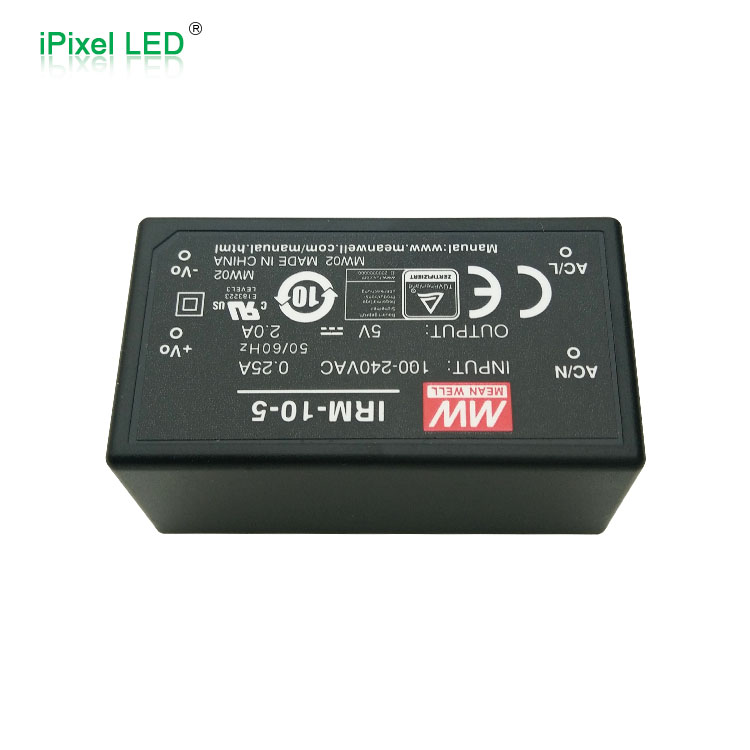

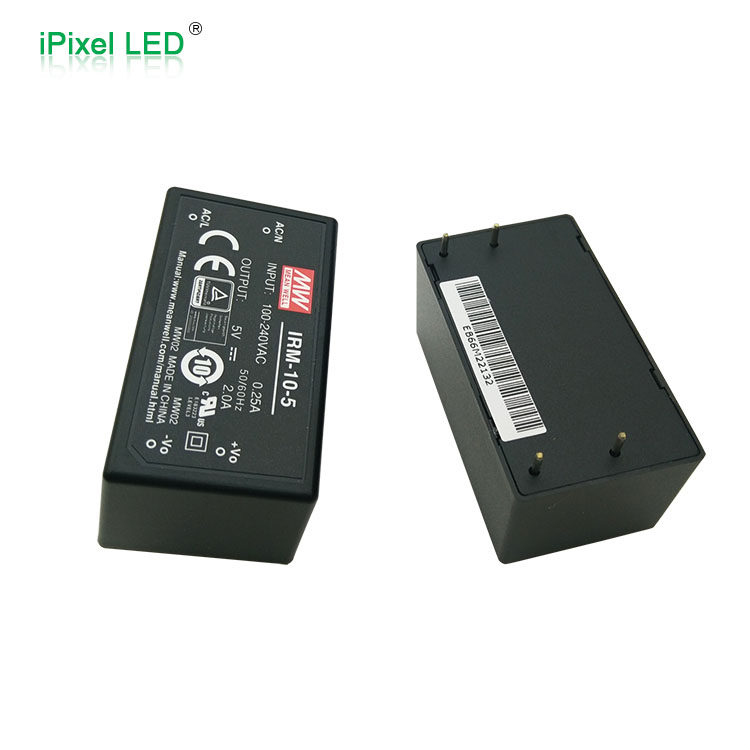

IRM-10-5

Application:

1. LED strip,led light bar.

2. LED tube,led pixel light.

3. Light source,led screen.

4. LED module,Other Electronics.

Email: inquiry@ipixelleds.com

Share to
Product Parameters：

IRM-10-5

OUTPUT 		DC Voltage Rated Current Rated Power Ripple & Noise (max.) Note.2 Load Regulation
5V 2A 10W 200mVp-p ±0.5%

INPUT 		Voltage Range Frequency Range Leakage Current Overload
85-264VAC
120-370VDC 		47 ~ 440Hz <0.25mA / 240VAC 115%~190% rated output power


Features:

1. Universal AC input /Full rang

2. Compact size
3. Protections:Short circuit/Overload/Over voltage
4. Cooling by free air convection
5. Cooling by free air convection
6. Isolation class Ⅱ
7. NO load power consumption<0.1W
8. 100% full load burn-in test
9. High efficiency
10. -3 years warranty1-Universal AC input /Full range

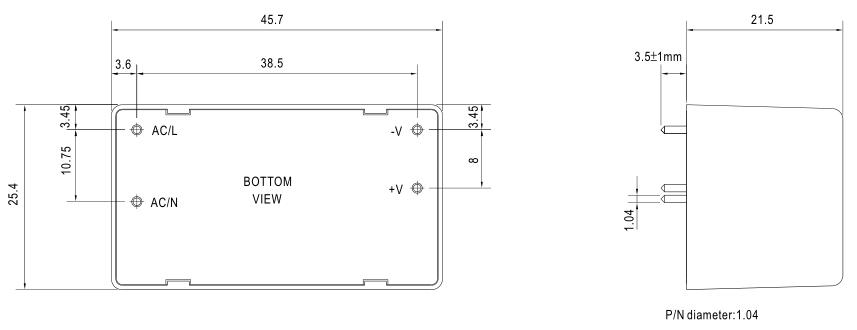

Size:



Last:
Next: RS-15-5
