D24 Digital LED Christmas Light

Application:

1. Wedding arrangements, hotels, bars,

2. Commercial buildings, windows, clubs,
3. Concerts, karaoke, fashion shows,

4. Park, festival decorations,

5.birthday party decorations,dance, stage.

Email: inquiry@ipixelleds.com

Share to

D24 Digital LED Christmas Light

Product Parameter:

Part Number	Light source	LED Quantity	Diameter (mm)	Operating voltage	Power (W/chain)	IC Model	Waterproof
P222V12	5050 RGB	2/PCS 50pcs/chain	H50*D26	DC12V	30W	WS2811	IP66

Features：

1.This is a latest design christmas light for outdoor application.

2.Each pixel individually control.

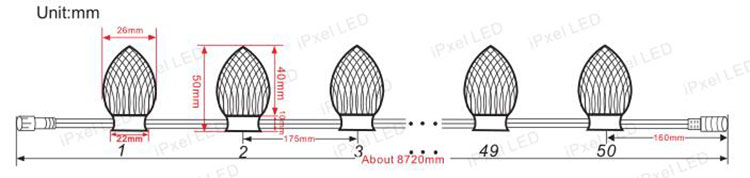

3.50pcs lamps per chain with 17.5cm space (standard length) but it's could customization.
4.There are 2 pcs super bright SMD 5050 RGB LED inside of each lamp.
5.The PVC case is optical design to outlet the LIGHT from different angel.

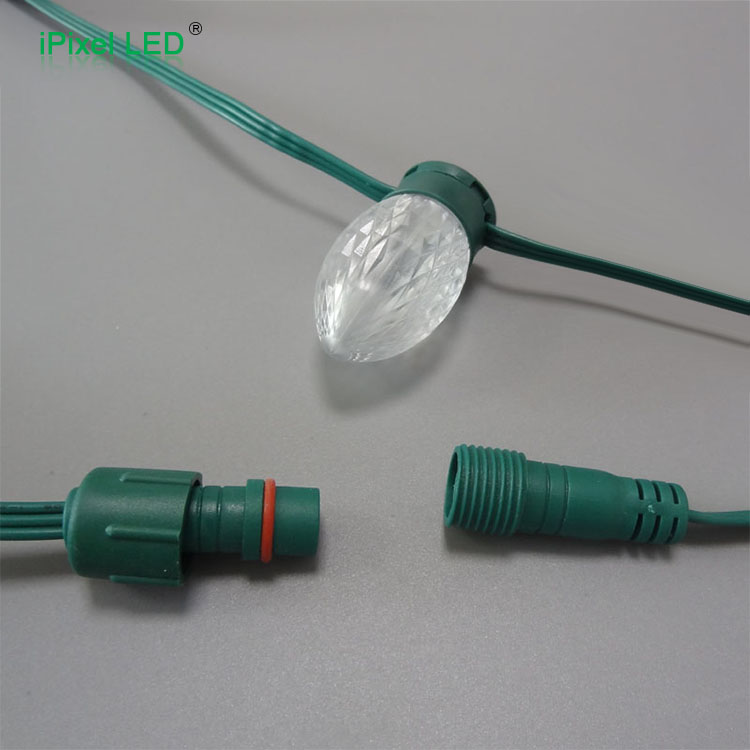

6.The connectors are waterproof on in and output side ,watch the Male with Pin is Input.
7.The whole string light is waterproof IP66.

8.Working Voltage is DC12V,but there will has 2V drop on end of string when light as full white color ,so you need to inject Power on end of string as you want.

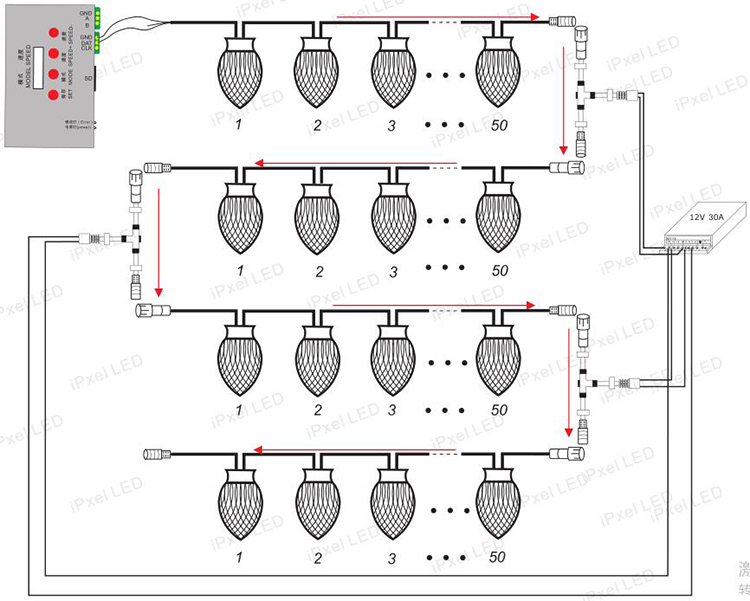

Connection:

Youtube's Video
