iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
1. Wedding background arrangement,
2. Commercial buildings,
3. Home Furnishing,
4. Large shopping malls
5. window, concert,
6. Concert,KTV,bars.

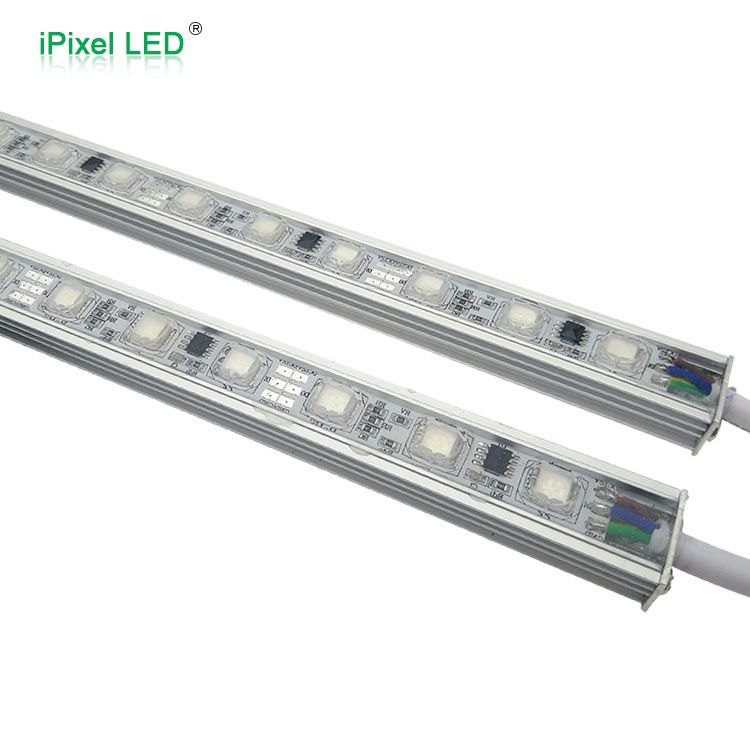

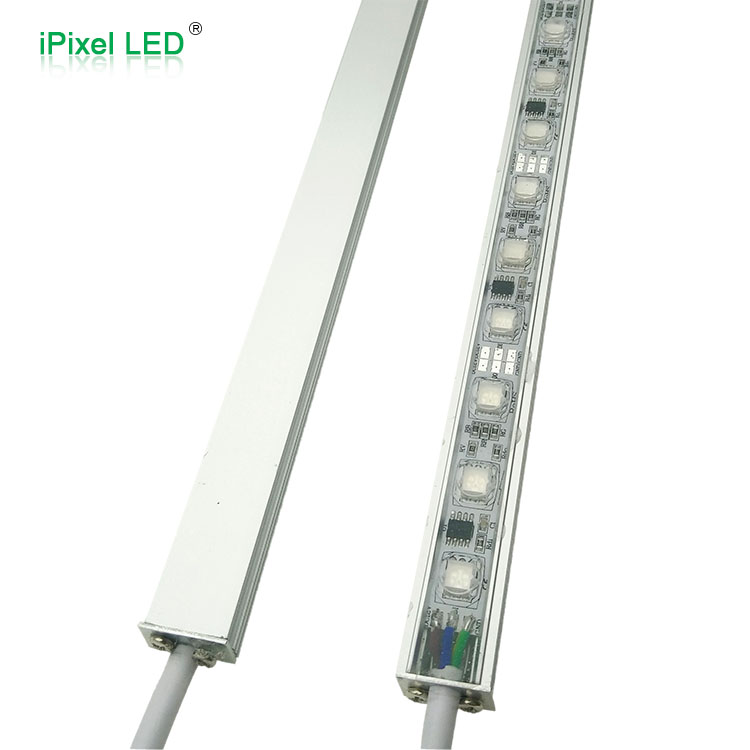

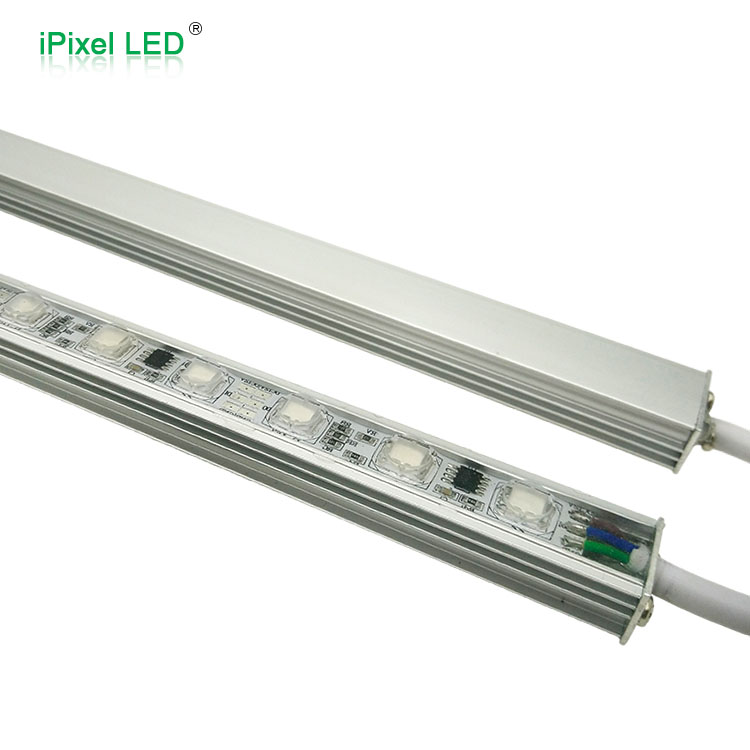

Digital LED Bar-16 Pixel
Product Parameter:
| P/N |
Light Source |
Beam Angle |
LED Qty |
Voltage |
Power (W/M) |
Pixel |
Emmiting Color |
Size (mm) |
IP |
|
B4816V12-1903 |
5050 RGB | 160 deg | 48leds/pcs | DC12V | 10±1W | 16 | UCS1903 Full Color |
L1150 *W18* H14 |
IP67 |
Features:
1.This bar included 48pcs LED 5050 RGB with 16pcs IC,
2.Cuttable each section of 10cm (3LED),
3.Each LED covered by a optical lens,beam angle 160 Degree,An-ti UV,
4.To protect the LED Chip,
5.PU glue injection IP67 waterproof,

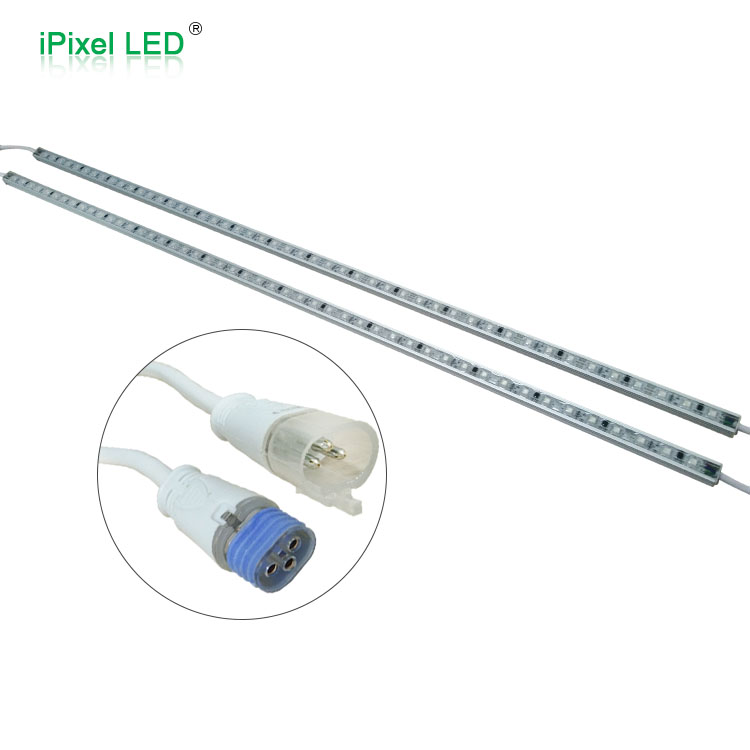

6.The waterproof connector very strong with,3*0.75 Copper wire,

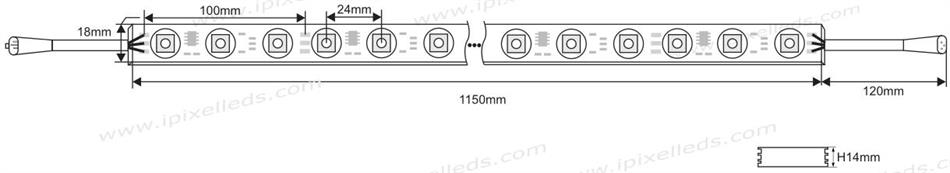

7.The Aluminum size is mm, PCB size is 1150, PCB size is 990mm, there is a gap on each side of the bar.
