SMD 5730 LED Rigid Bar - Retired Products - Products

SMD 5730 LED Rigid Bar

Application:

1. Back lighting.
2. Signage board.
3. Cabinet.
4. Jewelry store.
5. Indoor lighting.

Share to

5730 LED Rigid Bar

Product Parameter:

P/N	Emitting Color	Beam angle	VCC	Power(W/M)	LED Qty	Size	CCT(K)	Luminosity(M/lm)	IP Rate
B605730V24	White	120 deg	DC24V	16±1W	5730 60leds/m	L1000* W12mm	3910-4260	1600	IP20/IP65
B605730V24	Warm white	120 deg	DC24V	16±1W	5730 60leds/m	L1000* W12mm	2860-3080	1500	IP20/IP65

Features:

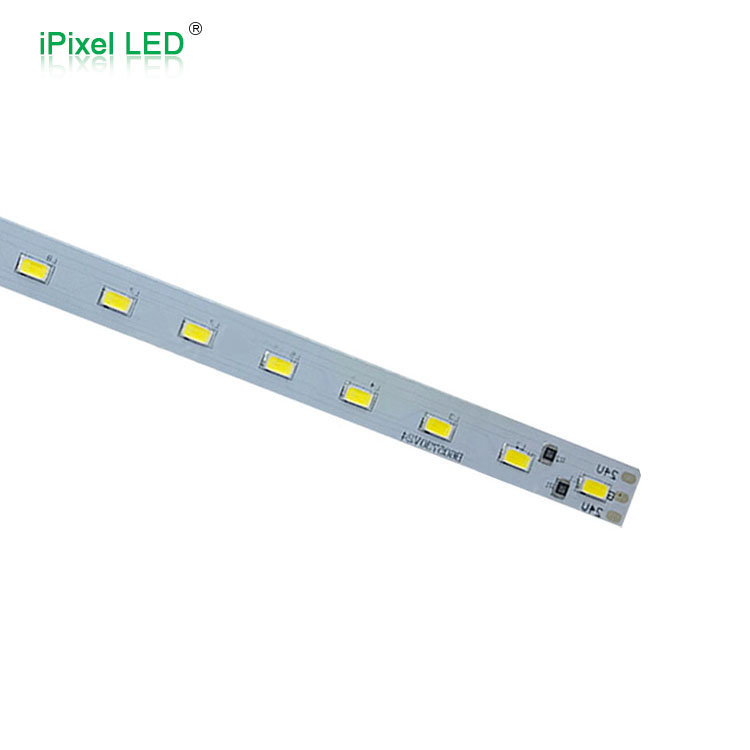

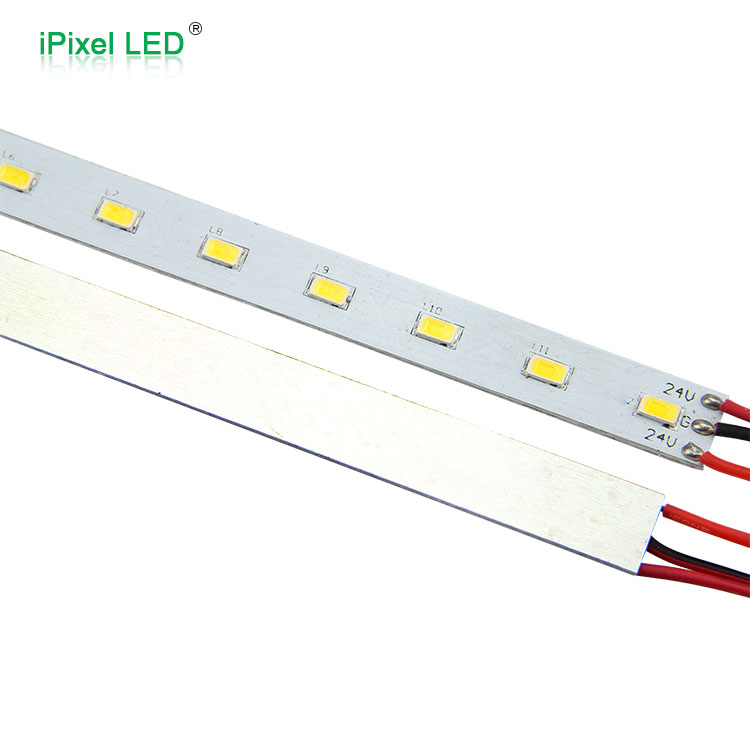

1.This is a regular aluminum light bar with aluminum PCB,

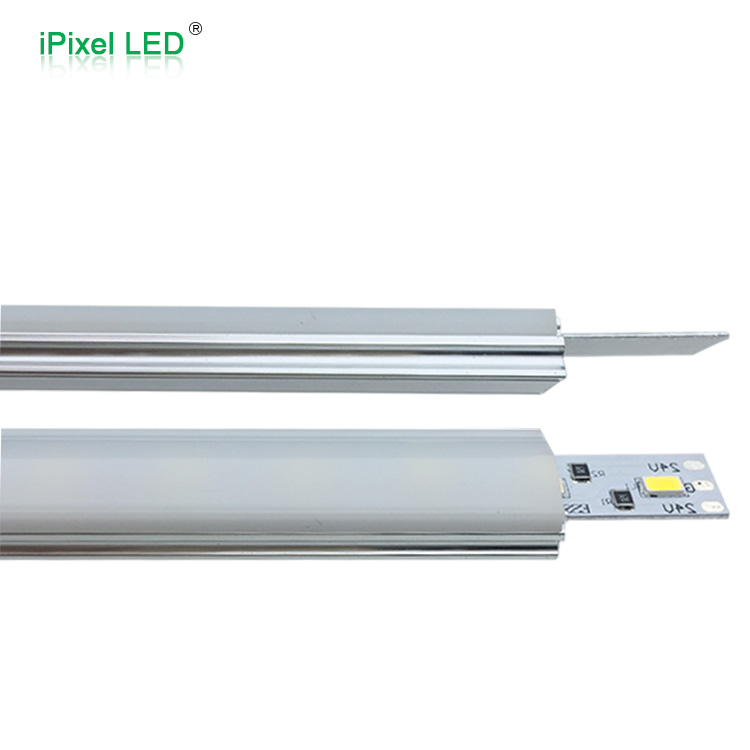

2.Milky white & clear shell on top of the bar,
3.DC24V ，16W/m, we used 60pcs high brightness Samsung SMD 5730 LED,
4.waterproof IP65, Non-waterproof version available,
5.Cutable every 20cm,
6.Each bar attached 2 pcs metal holder for installation use.

7.Two kinds of color temperature optional.

Connection:
