iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. DIY electronic production.
2. Advertising.
3. Display.
4. Subtitles

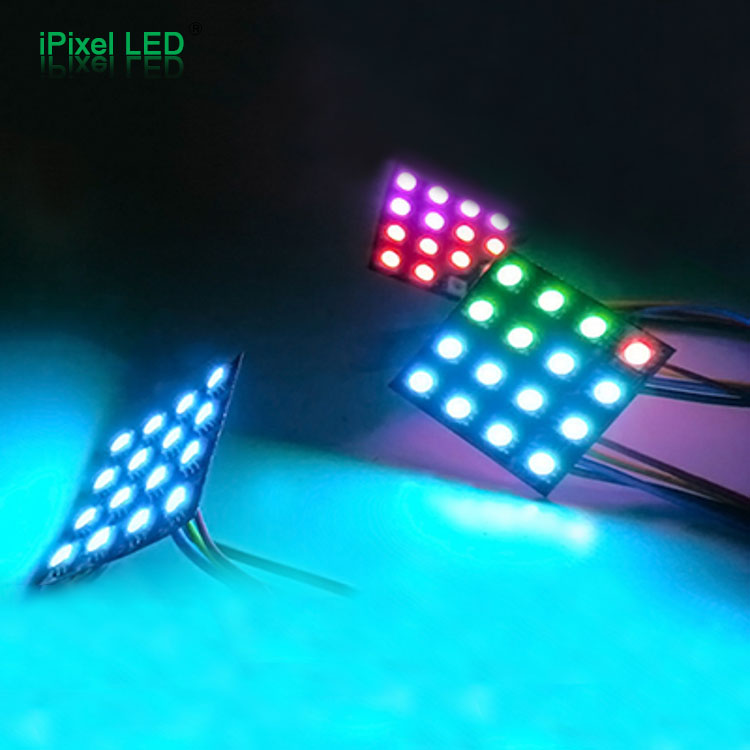

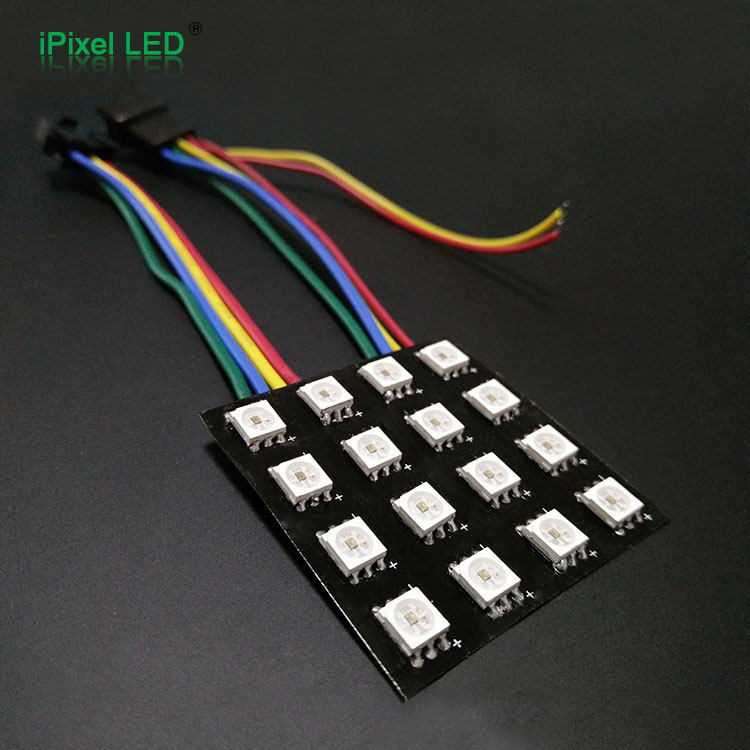

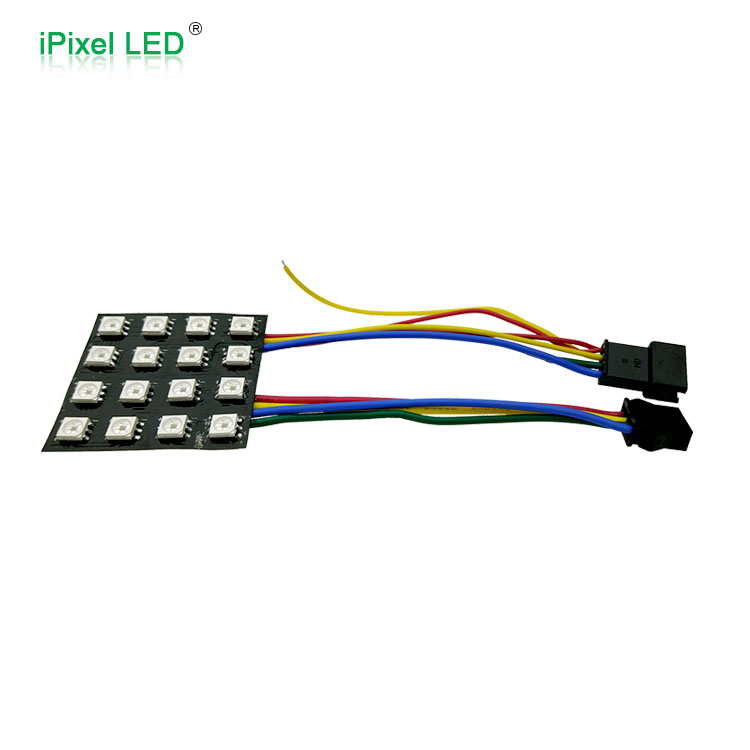

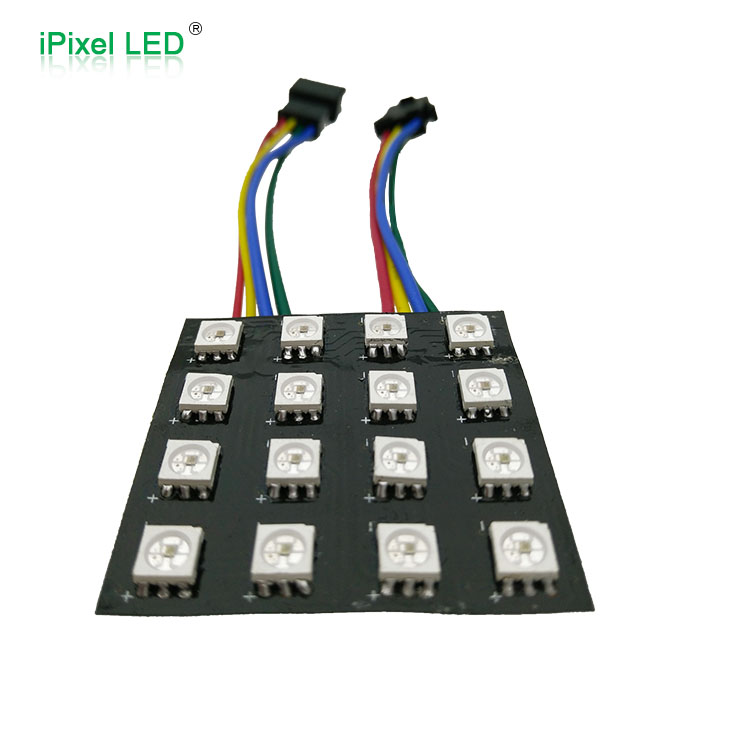

4*4 APA102C LED Matrix
Product Parameter:
| P/N | LED Qty/pcs |
Size(mm) |
Pixel | VCC | Power | IC | Lumen per LED(MCD) | IP |
| S0404APA102 | APA102 16leds |

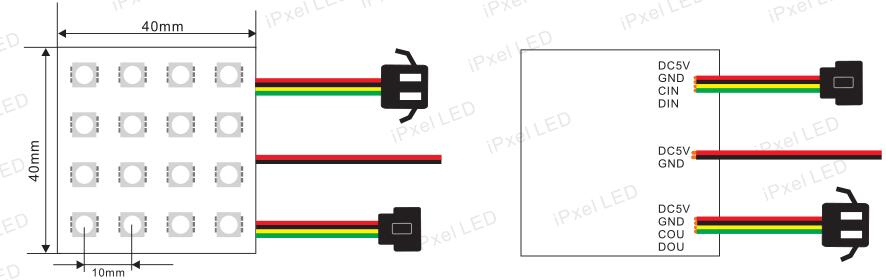

L40*W40 |
16 | DC5V | 4.8W/pcs | APA102C | R:500-650 G:370-530 B:120-165 |
IP20 |
1. Individually addressable RGB LEDs (4*4 LEDs).
2. 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel.
3. Additional color-independent brightness control (5-bit PWM).
32 brightness steps per pixel.
4. SPI control interface,5 V operating voltage.
5. Each LED Matrix draws approximately 8A at full brightness.
6. 40 mm width (4 LEDs) or 40 mm width (4LEDs) Pitch : P10.
7. Flexible,bendable IP20 rating,Black strip color.
8. Power/data connectors on both strip ends for easy chaining.
