Application:
1. Back lighting.
2. Signage board.
3. Cabinet.
4. Jewelry store.
5. Indoor lighting.

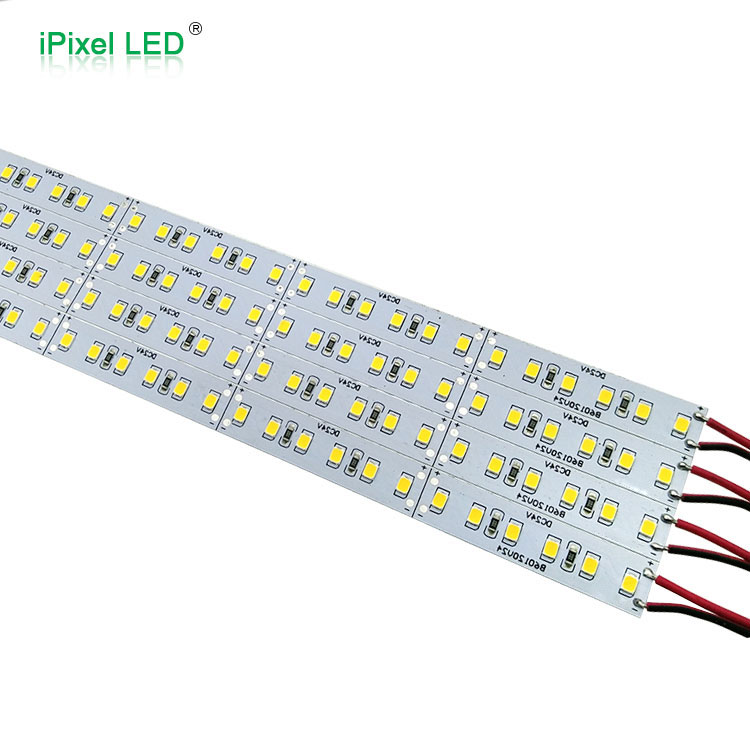

2835 LED Rigid Bar
Product Parameter:
| P/N |
Emitting Color |
Beam angle |
VCC |
Power(W/M) |
LED Qty | Size | CCT(K) |
Luminosity(M/lm) |
IP Rate |
| B60120V24 | White |
120 deg |
DC24V |
14.4±1W |
2835 120leds/m | L1000* W12mm | 3910-4260 |
1300 |
IP20/IP67 |
| Warm white |
120 deg |
DC24V |
16±1W |
2835 120leds/m |
L1000* W12mm |
2860-3080 |
1400 |
IP20/IP67 |
1
Features:

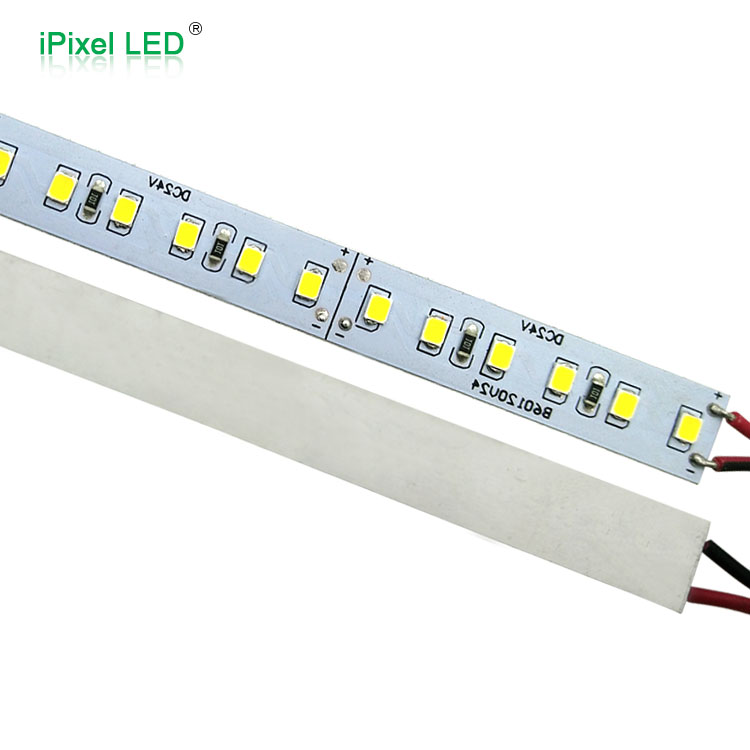

1.This is a regular aluminum light bar with aluminum PCB,

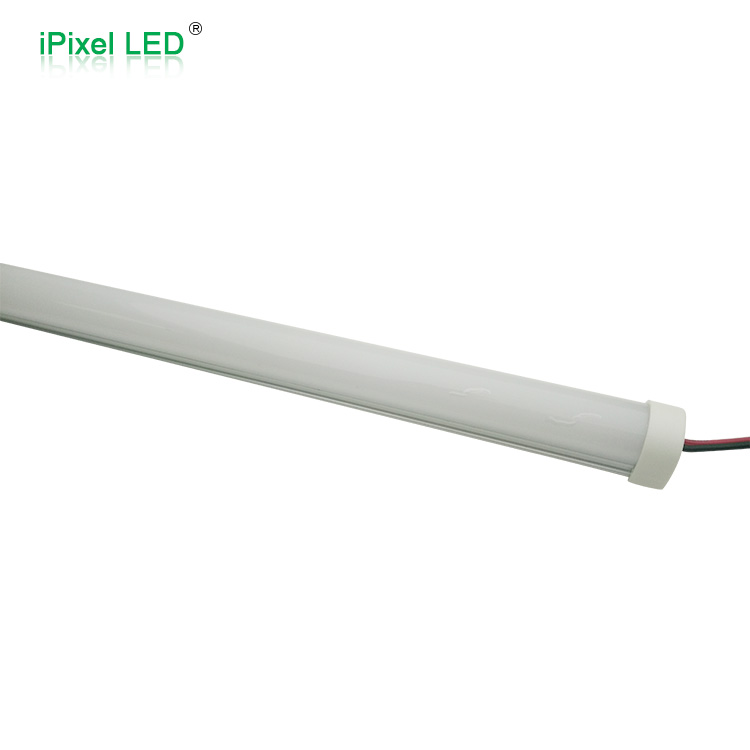

2.Milky white & clear shell on top of the bar,
3.DC24V ，15W/m, we used 120pcs high brightness Samsung SMD 2835 LED,
4.Waterproof IP67,Non-waterproof version available,
5.Cutable every 5cm,
6.Eeach bar attached 2 pcs metal holder for installation use.
7.Two kinds of color temperature optional.
1
