Application:
1. Outdoor building illumination
2. Night club background lighting
3. Dance floor,KTV singing club
4. Stage,Disco Club

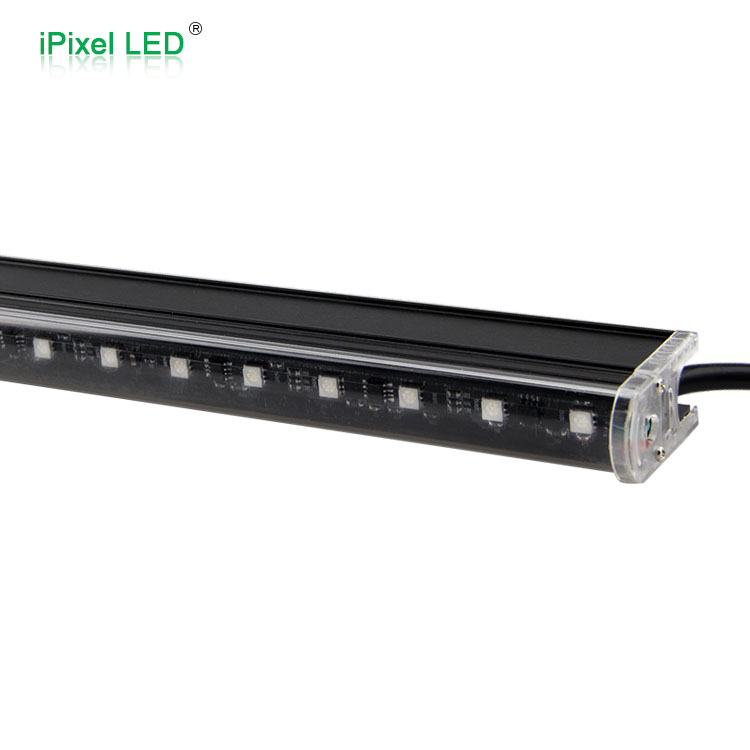

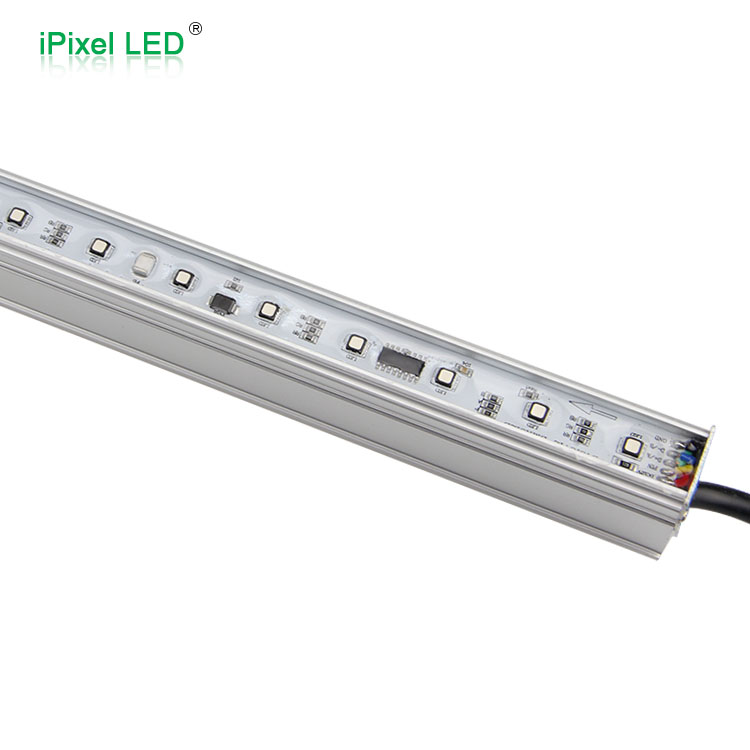

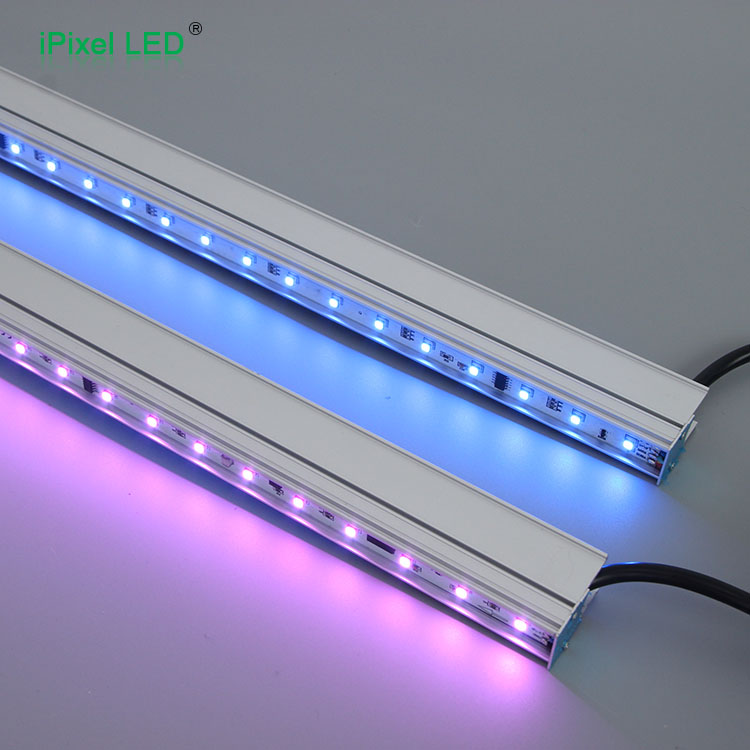

Ultra Thin Dmx LED Bar
Product Parameter:

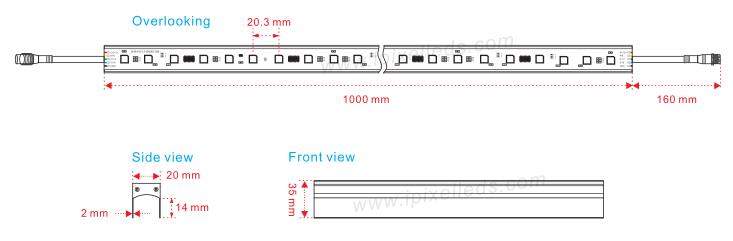

| P/N | Size （mm） |
Beam Angle |
VCC | Power | Protocol | PC Cover | LED Qty/m |
Luminance(MCD/led) |
IP Rating |
| B4816V12-DMX512B | L1000*W 20*H 35mm | 120° | DC12V | 10W/PCS | DMX512 |
Transparent /Milky white |
CREE 3535 48leds |
R800/G2100/B480 | IP65/IP67 |
1.Ultra thin 20 mm width Aluminum profile.
2.No-slot joint installation,connector output and hide on buttom side.
3.DMX512 Protocol，48 channel per meter.
4.Anti-UV SMD LED RGB 3535.
5.IP 65waterproof connector.

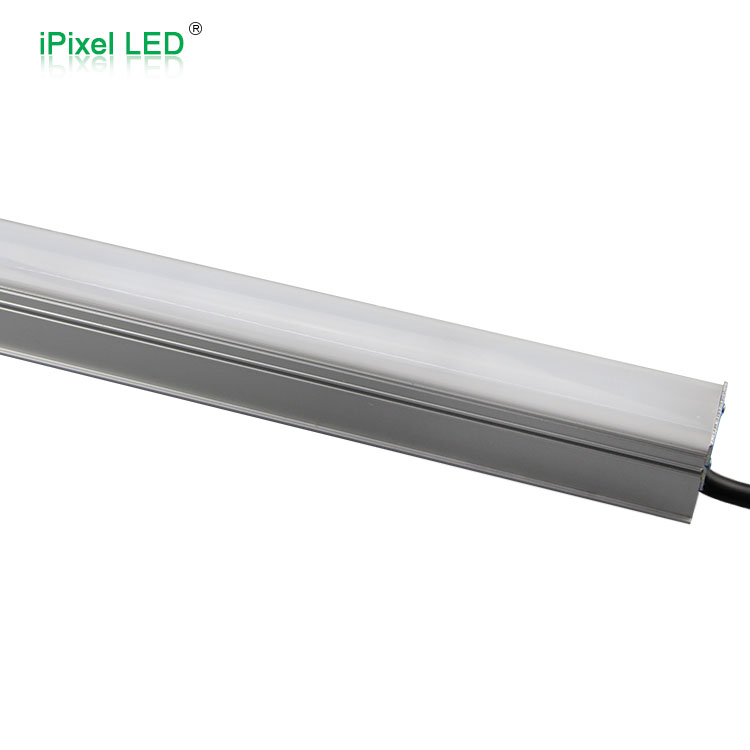

6.Clear / milky white PC cover protection.
7. Aluminum Profile: Silver/Black.
8.Hot-plugging，Lightning protection circuit ，short circuit protection design.

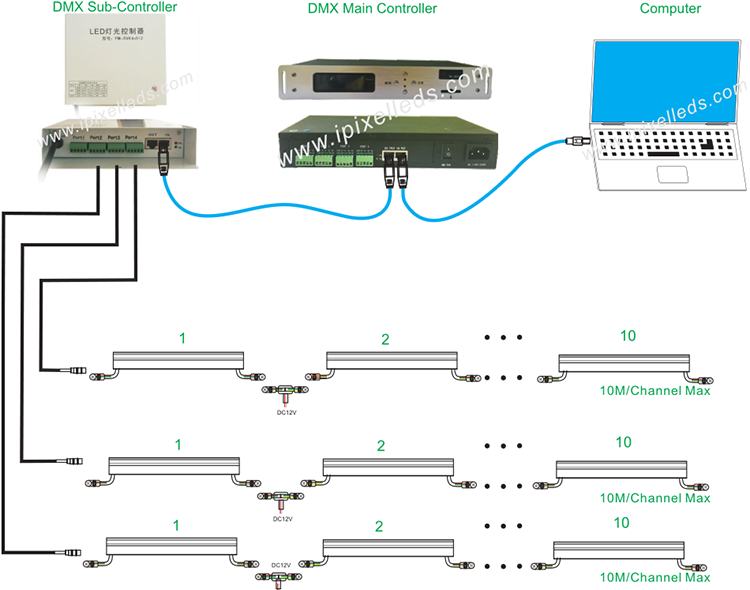

Connection:
