1. Full color LED dmx tube.
2. DMX light source,DMX light strip.
3. DMX led light bar.
4.Outdoor Lighting Engineering.
Specifications:
Input Voltage
AC220V or 110V
Power Dissipation
1.3W
Control Pixels Number
4096
Weight
1KG
Dimension
L163 x W155 x H54 mm
Working Temperature
-40℃~85℃
Carton Size
L205 x W168 x H69mm
PCB Size
L119 x W47 x H21 mm
1. Introduction:

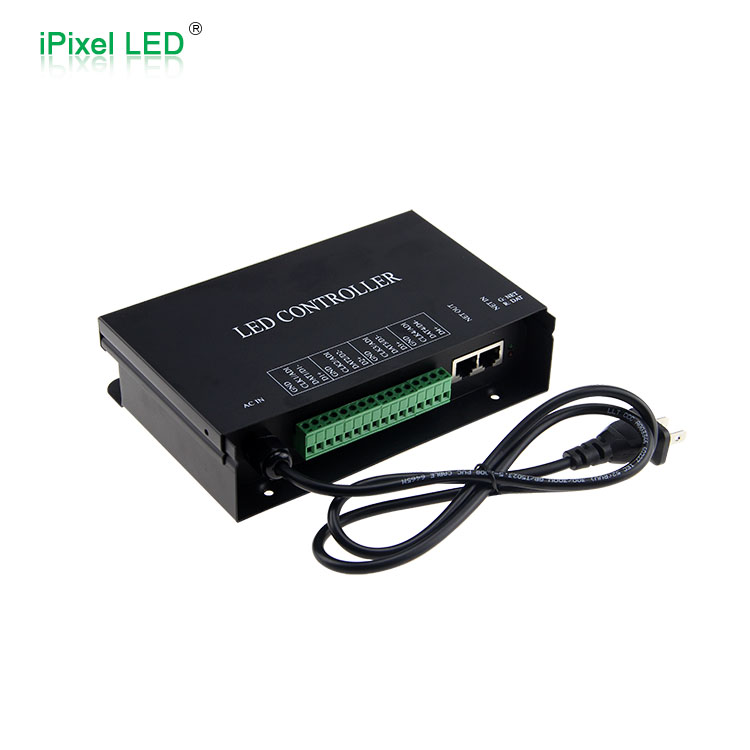

H802RA is a four ports output controller that employs Ethernet protocol and supports Art-Net protocol. It supports multiple kinds of LED driver chips and can address for DMX512 driver chips. The input network interface can be connected to master controller or computer.
Online software are "LED Studio" and "MADRIX".
2. Support Driver Chips:
DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.
3. Performance:
(1). Four ports, control maximum 4096 pixels.
(2). Support Art-Net protocol, so H802RA can work with MADRIX.
(3). Address for the TM and UCS DMX512 driver chips, such as TM512, UCS512.
(4). Configured as repeater or amplifier by LED Studio.
(5). Work with master controller or computer.
(6). Distance between two controllers is up to 100 meters.

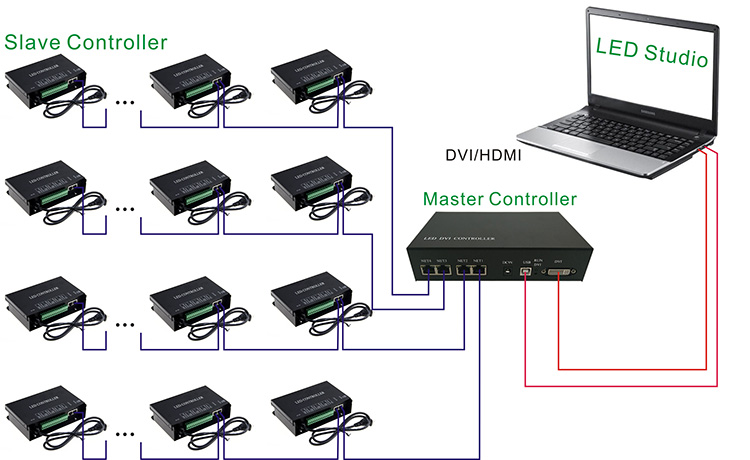

4.Connection Diagram:
