Specifications：
L189 x W123 x H40
Input Voltage
AC110V~220V
Power Consumption
1.5W
Control Pixels Number
8192
Weight
0.98KG
Working Temperature
-20C°--85C°
Dimension

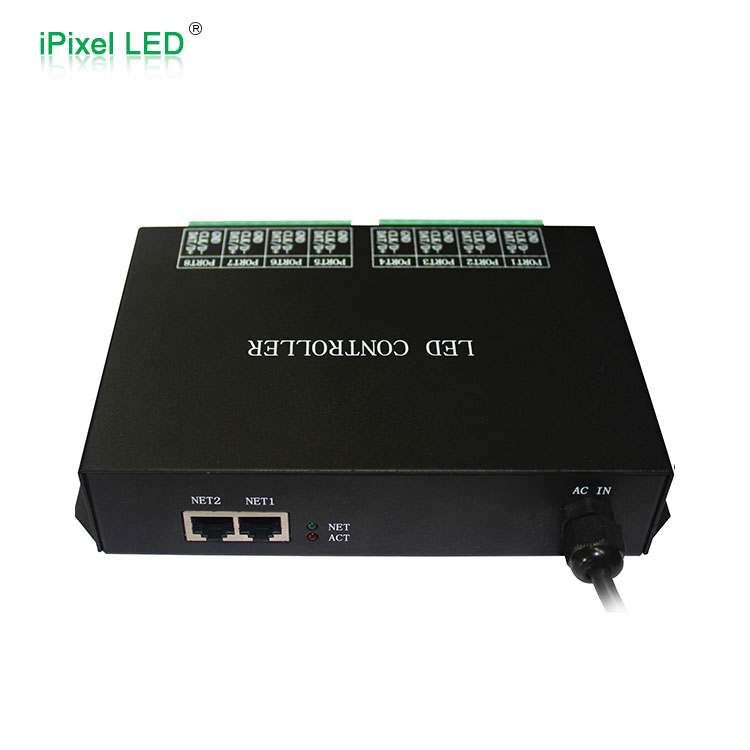

1. Introduction：

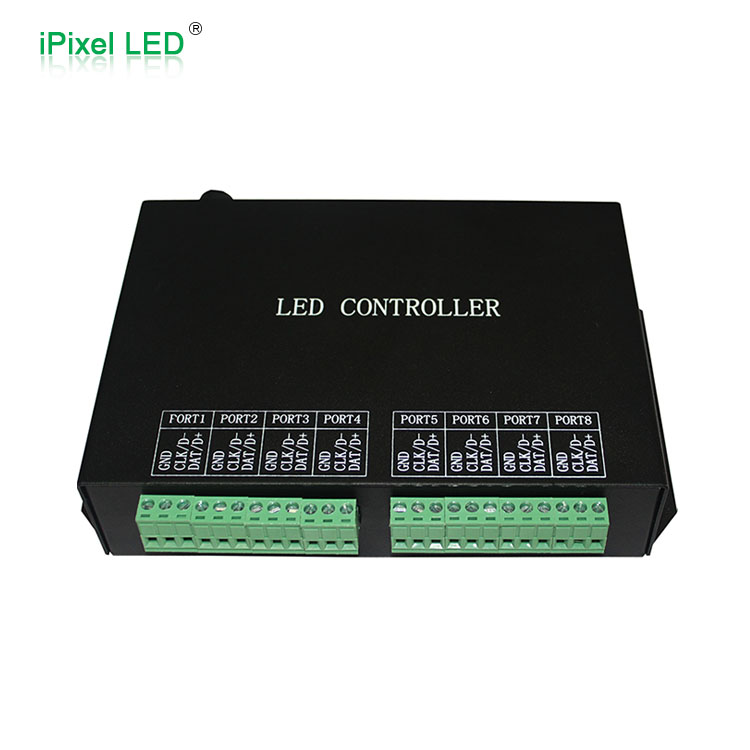

H801RC has 8 output ports and drives maximum 8192 pixels, and can be connected to computer or master controller(H802TB, H80xTC or H803TV).
2. Support driver chips：
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.
Offline auxiliary software is “LED Build Software”; online auxiliary software is “LED Studio Software”.
3. Performance：
(1). Eight output ports drive maximum 8192 pixels.
(2). H801RC can be connected to computer, master controller, switch or photoelectric converter.
(3). High synchronization performance, the transmission of adjacent slave controller delays within 400 ns.
(4). Good control effect and grayscale level is under precisely control.
(5). Far transmission distance. Signal transmitted based on standard Ethernet protocol and the nominal transmission distance is 100 meters.
(6). The clock scanning frequency is adjustable within 100K to 50M Hz.

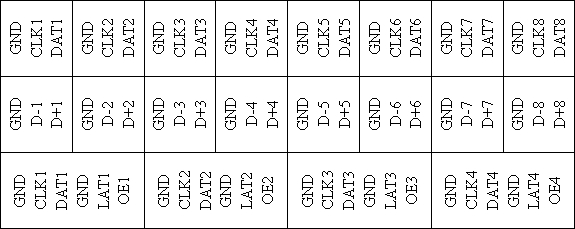

4. Ports definition：

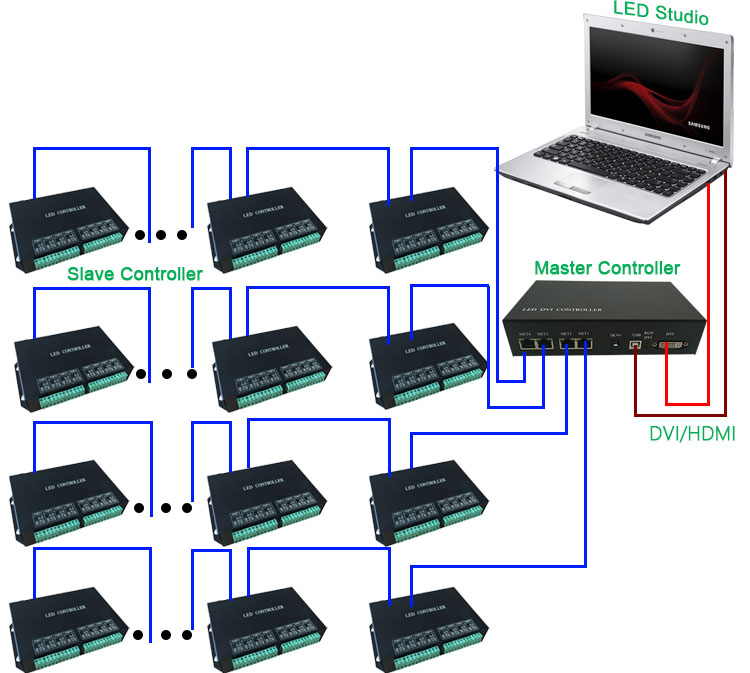

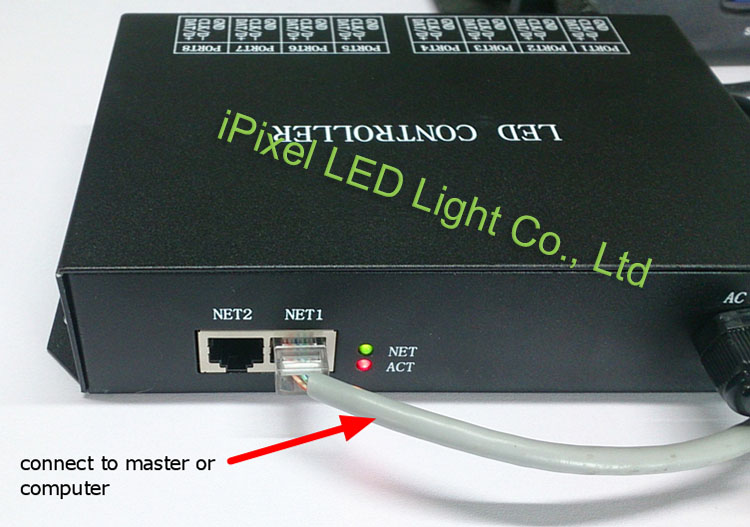

Connection Diagram ：
