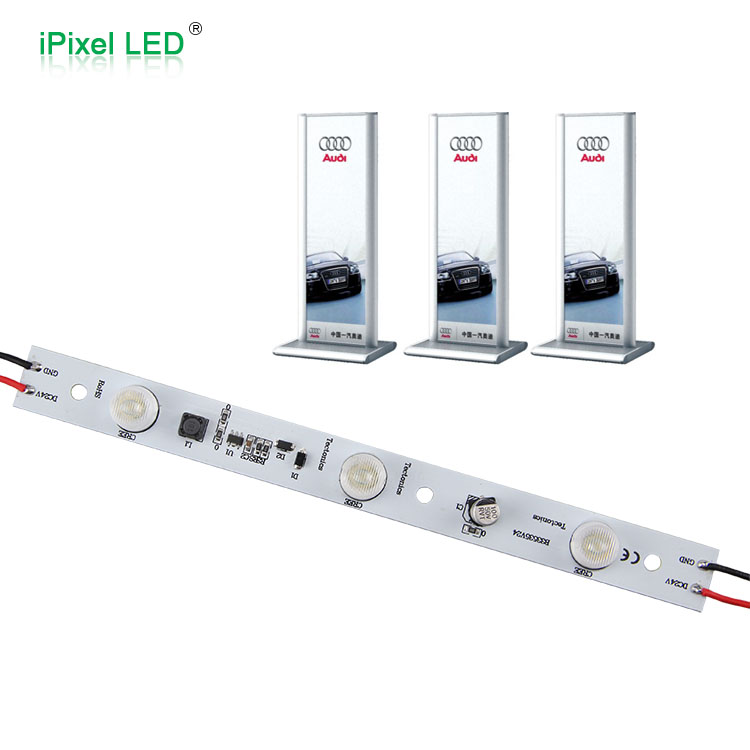

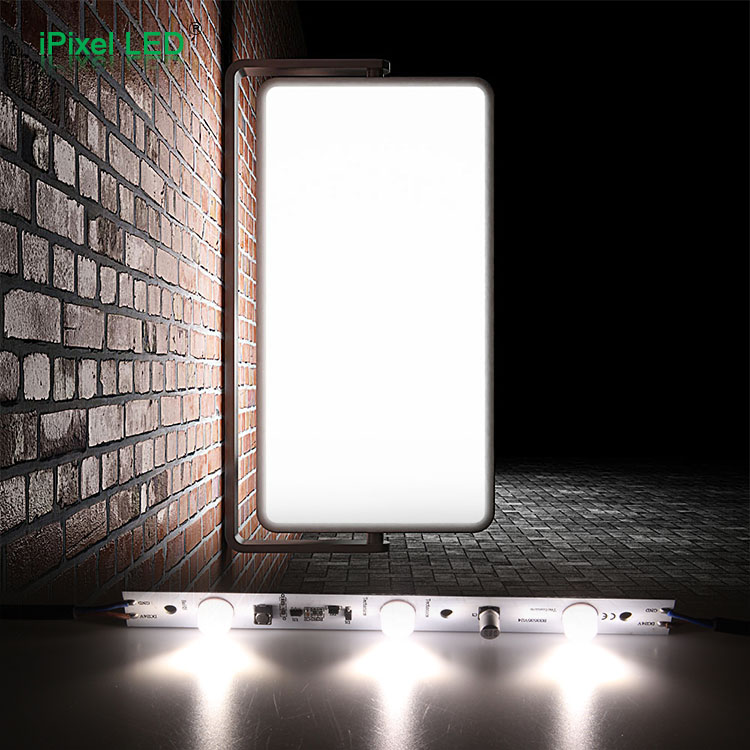

Application:
1. Back lighting,Light box,
2. Signboard lighting,
3. Display lighting,
4. Advertising signs

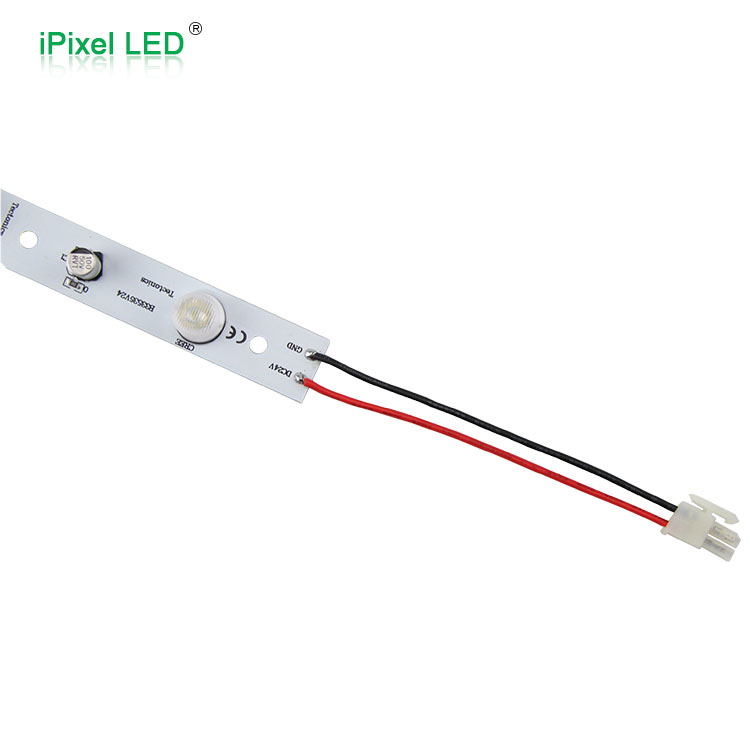

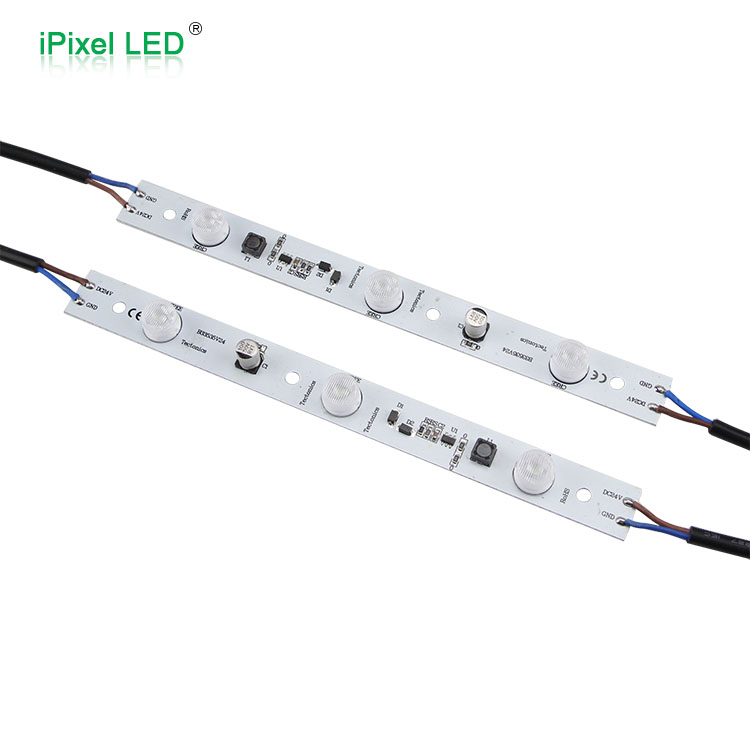

CREE LED Edge Light Bar
Product Parameter:
P/N
LED Chip
Beam Angle
VCC
Power(W/pcs)
LED Qty
Bar Size
Luminosity(/pcs)
CCT(K)
Drive Mode
IP Rate
B33535V24
CREE 3535
10*40°
DC24V
6.3W
3leds/pcs
L220*W20*H1.5 mm
600lm
6000--6500K
Constant Current Drive
IP20
B53535V24
CREE 3535
10*40°
DC24V
10.5W
5leds/pcs
L365*W20*H1.5 mm
1100lm
IP20
Features:
-Cree LED chip,Aluminum PCB,
-Constant current working,
-EL connector for simple,fast installation,
-Lens-guard to prevent hot spots along frame edge,
-Uniform illumination on the face of light box with lens technology,
-3 Year warranty.
1

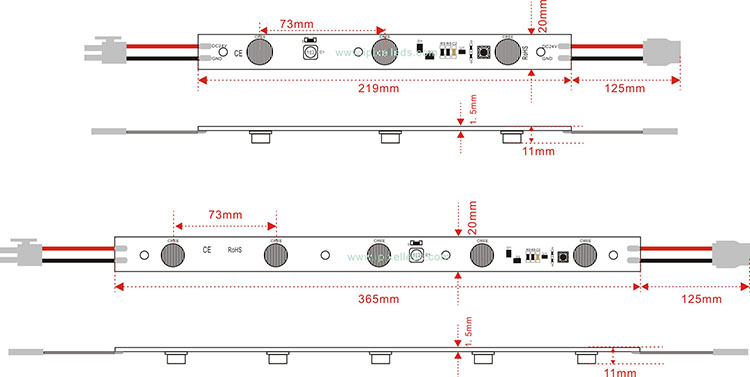

Outline Dimension:
