iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. Amusement attractions,rides
2. Luminous signs,Luna Park signs
3. Speed buzz, fairground, Casino lighting
| P/N | Light source |
LED Qty |
Diameter | Beam angle |
Cover Shape |
Voltage |
Power (/PCS)
|
Control |
Waterproof |
| P5514AC24V-A | SMD 3535 RGB |
14pcs（10+4） |
55mm | 360 deg. |
Turbo |
AC24V |
3.3W |
Automatic |
IP65/IP67 |
|
P5514AC24V-B |
SMD 3535 RGB |
14pcs（10+4） |
55mm |
360 deg. |
Spiral |
AC24V |
3.3W |
Automatic |
IP65/IP67 |
|
P5514AC24V-C |
SMD 3535 RGB |
14pcs（10+4） |
55mm |
360 deg. |
Flat |
AC24V |
3.3W |
Automatic |
IP65/IP67 |
Features:
1. Auto RGB lamp work with AC24V.
2. 360 Degree view - LED on top and bottom side of PCB.
3. An-ti UV PC case, An-ti UV LED RGB chip.

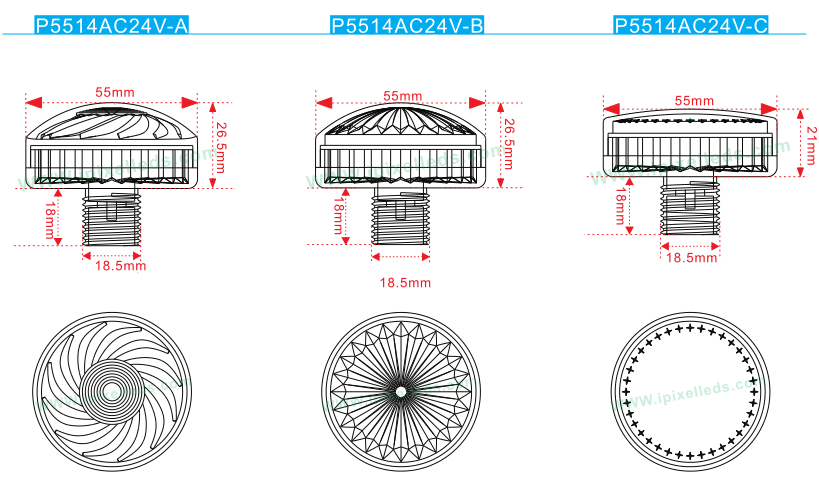

4. 3 types different cover: A-Turbo / B-Spiral / C-Flat(star).
5. 19 Different Pattern animation build inside Micro chip.
6. Automatic change to different model.
7. The whole animation lasting 8 minute till circulation.
8. 16pcs Lamp per set ,each pcs has a number.

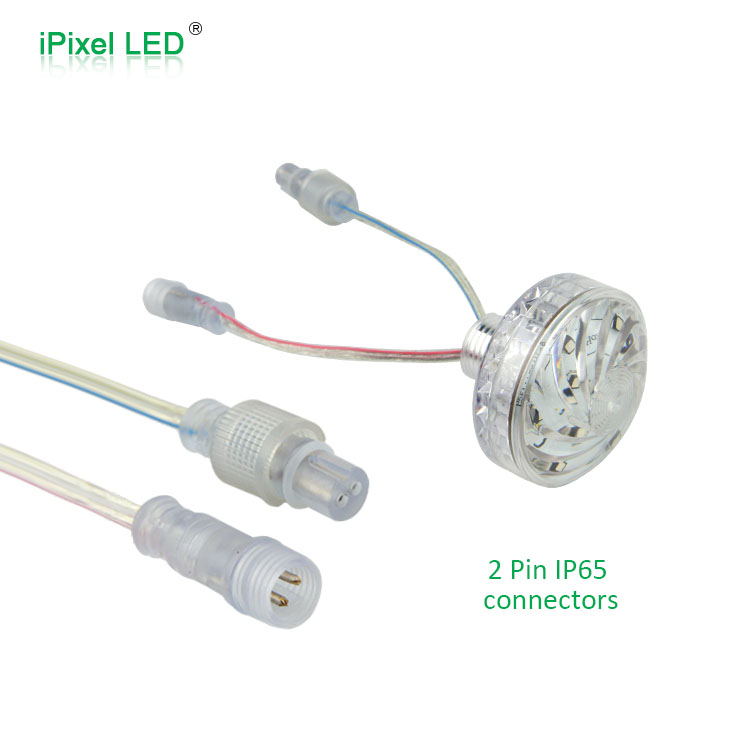

9. Two types of connector : JST SM or Waterproof.

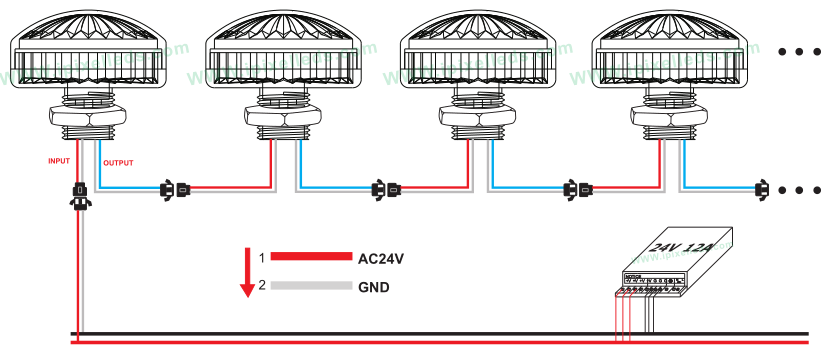

Connection:
The Products Video:
