Application:

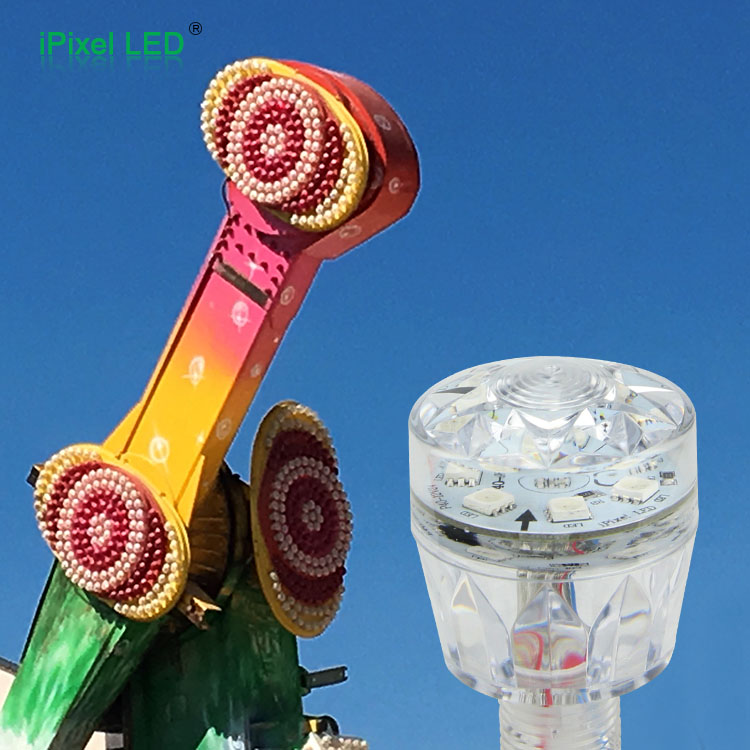

1. Amusement attractions,rides

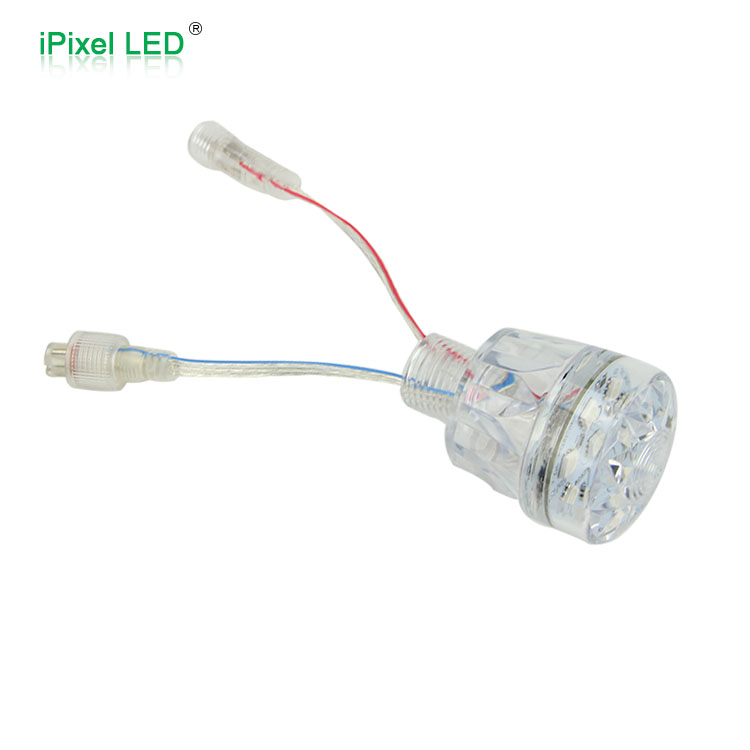

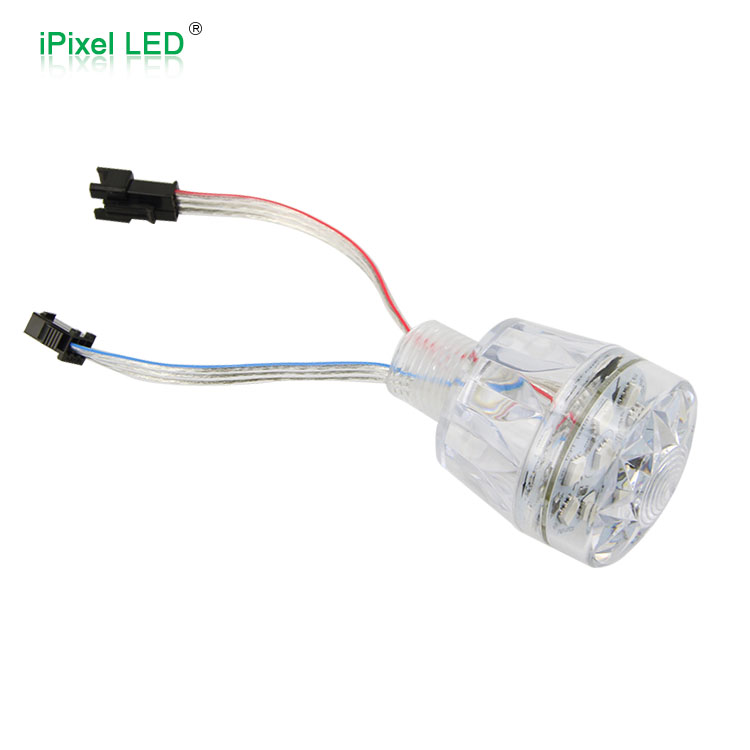

40mm Small Cabochon LED Pixel
Product Parameter:
| P/N | LED Qty |
Diameter (mm)
|
Light source |
Voltage (v)
|
Power (W/PCS)
|
IC |
MCD/bulb |
Waterproof |
| P40-12V24 | 12PCS |
Ø40 |
5050 RGB |
DC24V |
2.7W |
UCS1904 |
R:4800 G:10200 B:744 | IP20 |
1.An-ti UV PC transparent body.
2.SMD 5050 Program pixel,360 degree lighting.
3.Two type of connectors : JST SM IP20
4.Each lamp has a pair of connector, the one with Pin (male) is input side.
5.Wire length can be customization. electronics which ensures reliability, high brightness and a strong visual effect.
6.DC24V constant voltage ,feed the power max 40 lamps.
7.Each bulb included a plastic screw for installation.

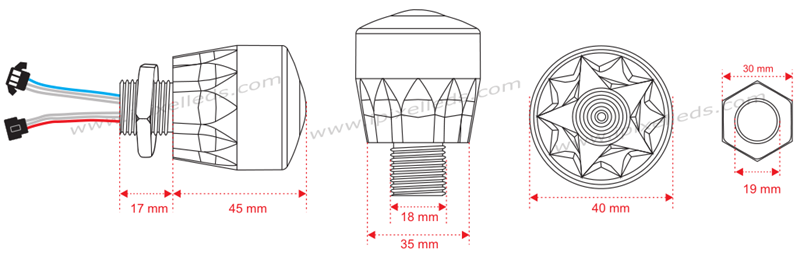

Outline Dimension:

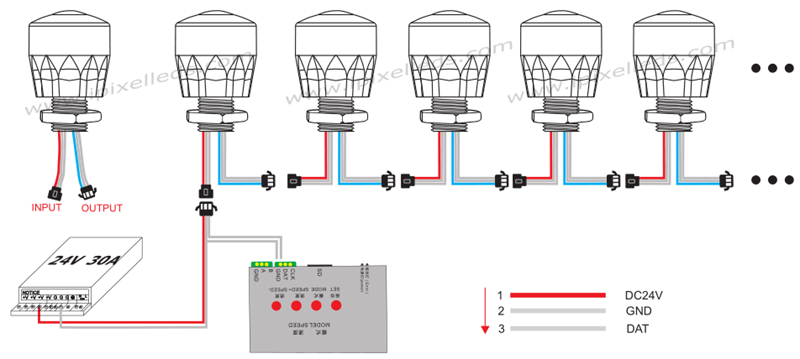

Connection:
