Application:
1. Amusement attractions,rides
2. Luminous signs,Luna Park signs
3. Speed buzz, fairground, Casino lighting
4. High swing, inversion freak out rides etc...
| P/N | Light source |
LED Qty |
Diameter | Beam angle |
Cover Shape |
Voltage |
Power (/PCS)
|
Control (IC) |
Waterproof |
| P5514V24-A | SMD 5050 RGB |
14pcs（10+4） |
55mm | 360 deg. |
Turbo |
DC24V |
3.3W |
UCS1904 |
IP65/IP67 |
|
P5514V24-B |
SMD 5050 RGB |
14pcs（10+4） |
55mm |
360 deg. |
Spiral |
DC24V |
3.3W |
UCS1904 |
IP65/IP67 |
|
P5514V24-C |
SMD 5050 RGB |
14pcs（10+4） |
55mm |
360 deg. |
Flat |
DC24V |
3.3W |
UCS1904 |
IP65/IP67 |
Features:

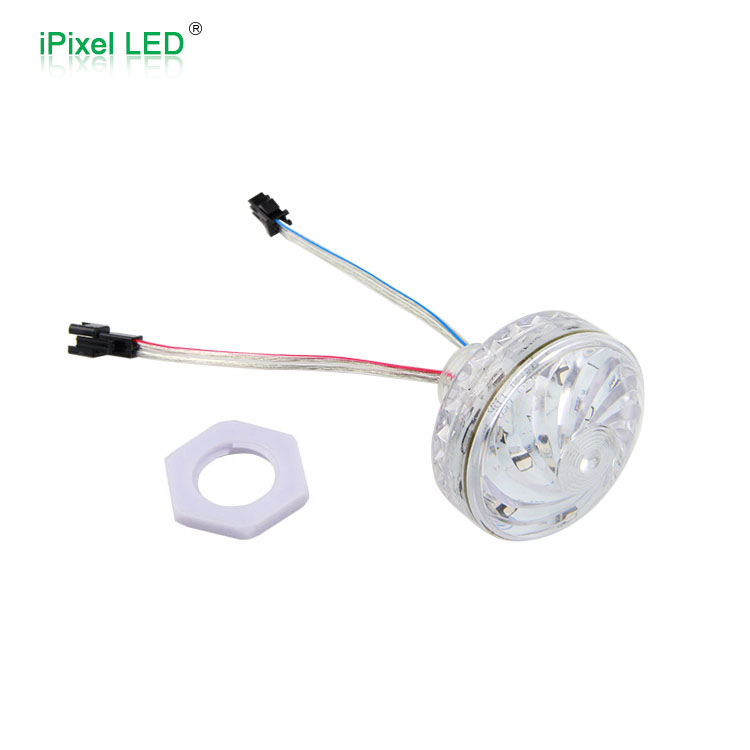

This is the fourth generation cabochon pixel LED designed by iPixel, abviously it's much smaller than the bigger one 60mm diameter and bigger than our 40mm, it's 55mm diameter.

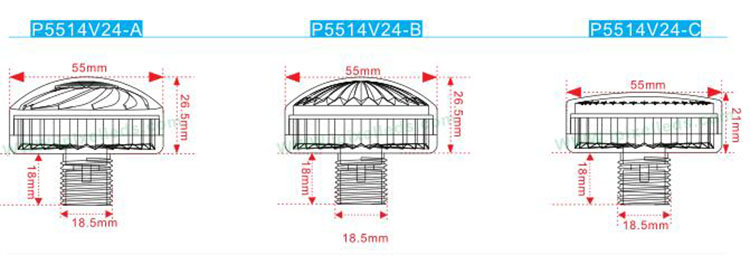

Special point that three options of cover : A-Turbo / B-Spiral / C-Flat(star)
1. An-ti UV PVC transparent body.
2. 55mm diameter, 360 degree lighting.
3. 10pcs leds in front side, backside 4pcs 5050 rgb chip.

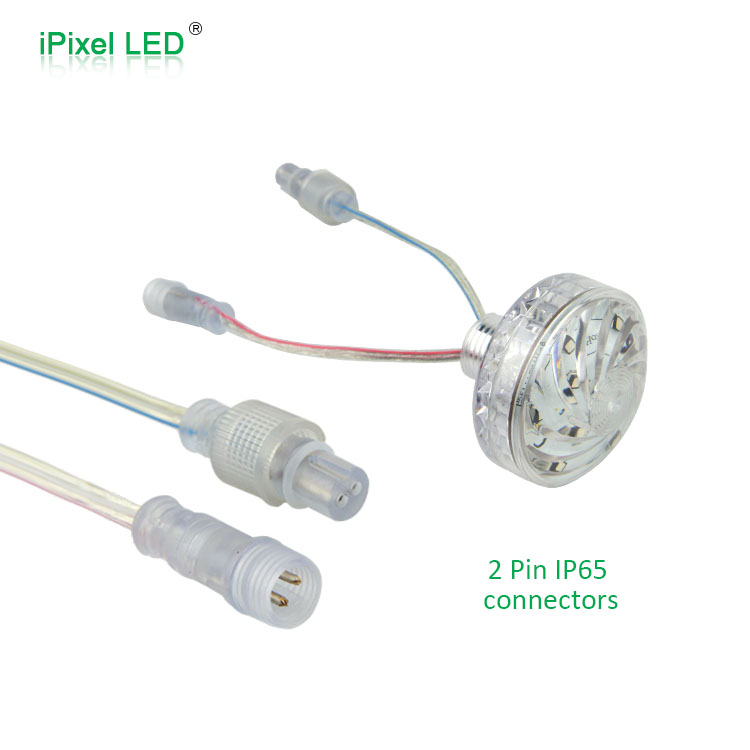

4. Two type of connectors: JST SM IP20 & waterproof IP67.
5. Each lamp has a pair of connector, the one with Pin (male) is input side.
6. Standard wire length 13.5 cm but can be customization.

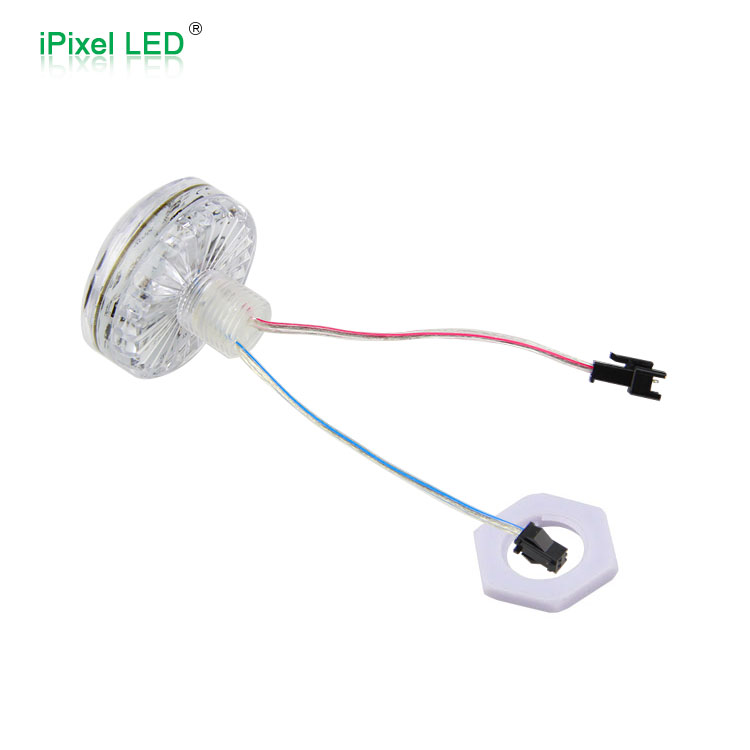

7. Each bulb included a plastic screw for installation.

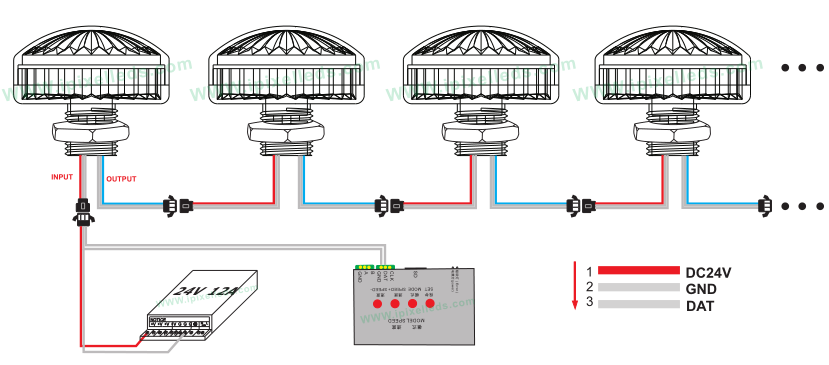

Connection:
