Application:
1. Amusement attractions, rides.
2. Speed buzz, fairground.
3. Holiday celebration, Luna Park.
4. Auditorium decoration, creative courtyard.
5. Outdoor street decoration, interior decoration.
Usual Parameters:
| Light source |
LED Quantity |
Operating voltage |
Power (W/PCS) |
Cable Length |
Operation Temperature |
Waterproof |
| 5050 RGB | 18LEDs/PCS | DC24V | 4±0.5W/PCS | About 18cm | -30℃—50℃ | IP65 |

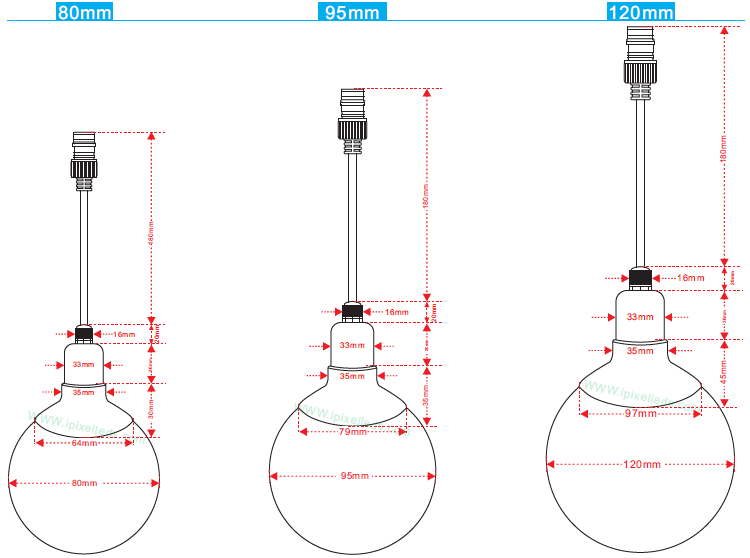

Product Number
Diameter (mm)
Control (IC)
Beam Angle
Net Weight
P8018V24-1904
80mm
UCS1904
360 deg
0.09 kg/pcs
P8018V24-DMX
80mm
DMX512
360 deg
0.09 kg/pcs
P9518V24-1904
95mm
UCS1904
360 deg
0.11 kg/pcs
P9518V24-DMX
95mm
DMX512
360 deg
0.11 kg/pcs
P12018V24-1904
120mm
UCS1904
360 deg
0.14 kg/pcs
P12018V24-DMX
120mm
DMX512
360 deg
0.14 kg/pcs
Features:
This pixel bulb is the best design for those who want to hang lamps like vertical tubes.
Each pixel bulb contains 18pcs of super bright RGB LEDs driven by DMX or SPI, both of which have 1 pixel/3 DMX channels.
The most advantageous feature of the balls is in their uniform lighting.
Without any shadows the case of the bulbs are milky white PC.
The body of the bulbs consists of plastic and aluminum for heat dissipation.
The input wire length can be customized, but please note the bulbs exclude T type connectors. These must be ordered separately.
The bulb is completely waterproof and can be hung outdoors without any fear of water issues
