4. Shop, indoor decoration
5.Garden, street landscaping
Product Parameter：
| P/N | Diameter Ø | Ball Qty | Control | Luminance(MCD) | View Angle | Voltage | Wattage/pcs | IP Rate |
| P050004CC3SC | 50mm | 20PCS/String | SPI /DMX512 |
R: 1.2 G: 3.1 B: 0.26 |
360° | DC24V | 1W(Max) | IP65 |
Features：
- IP65-rated RGB pixel LED light source
- DMX and SPI two versions available

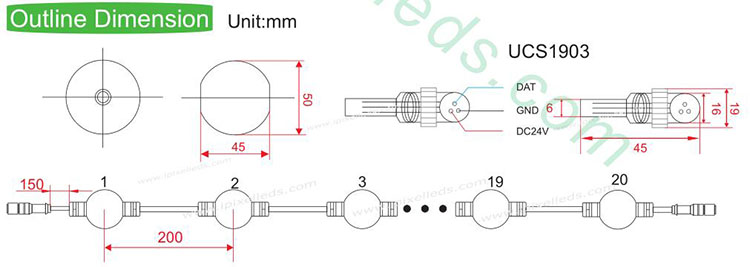

- pixel pitch in 20mm, each sphere is 50 mm diameter
- Full 360° viewing angle, no lighting shadow
- Maximum length is 4.1 meters (20 balls per string)
- Practically maintenance-free
- Black flexible cable between each sphere

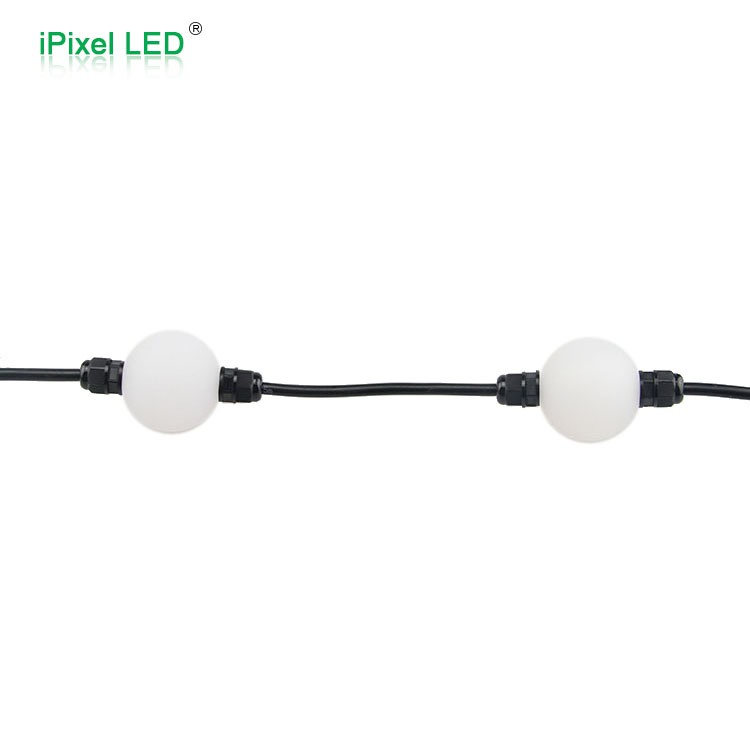

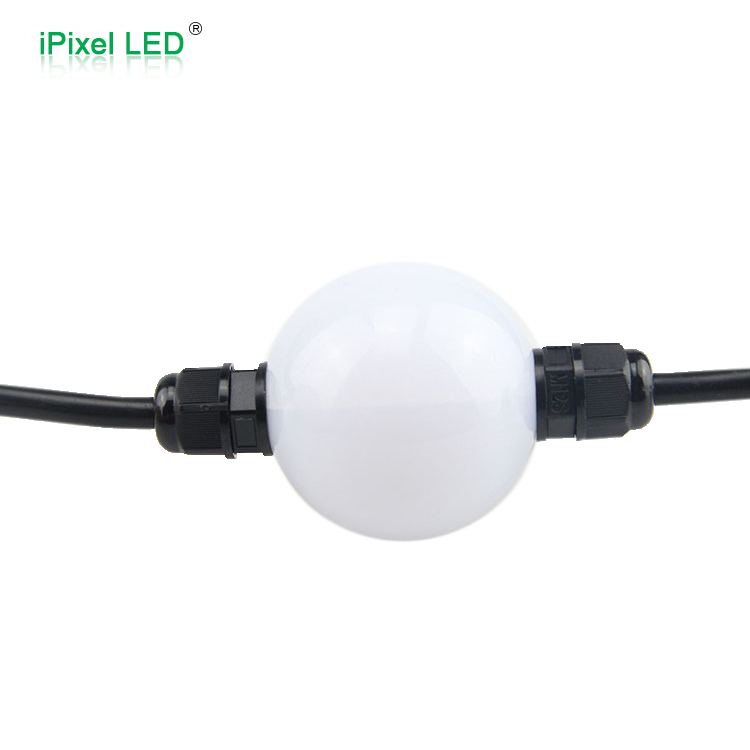

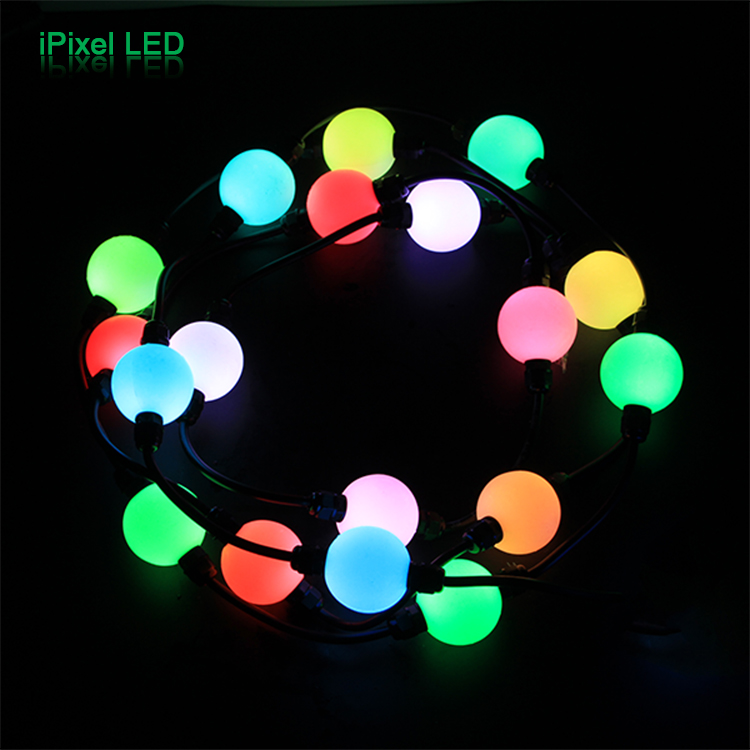

Each string contains 20pcs milky white LED balls with a diameter of 50 mm . Each ball
with 4pcs RGB LED chip. It needs to feed power after every 20pcs balls
The durable IP65 rated design ensures that each ball could work in outdoor environment
The temperature of working environment is limted in -30℃ + 45 .

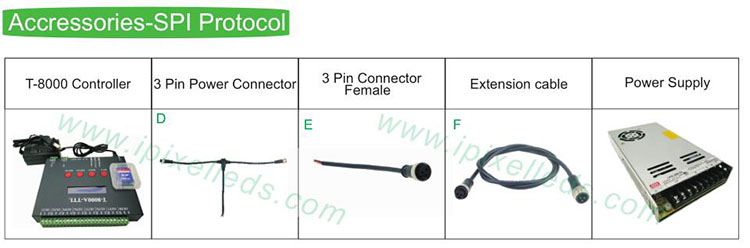

This ball can be operated by DMX512 or TTL signal controller.

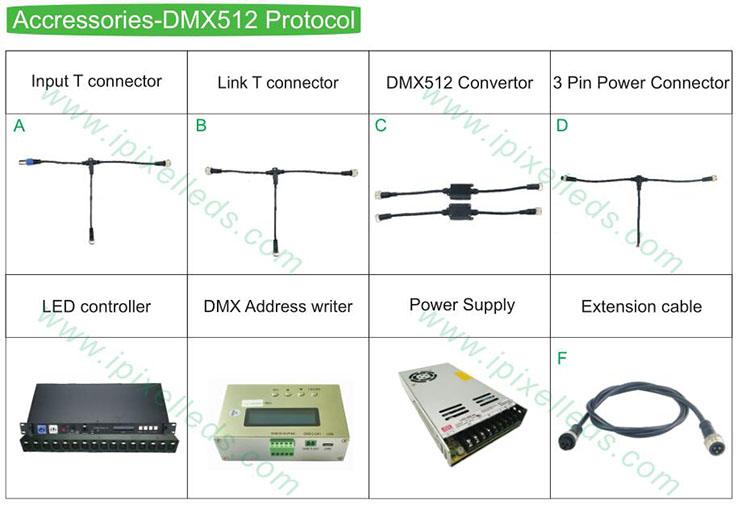

A DMX converter (512 turns into SPI) is necessary if controlled by DMX controller.
This converter can support 64pcs Balls (192 DMX channel) max.
A DMX address coder (YM-DMXDC) is required if the DMX controller doesn't have the function
of setting address. Otherwise the balls work with SPI signal.
Each ball contains 1 Pixel / 3 DMX channel
