LED Rigid Bar

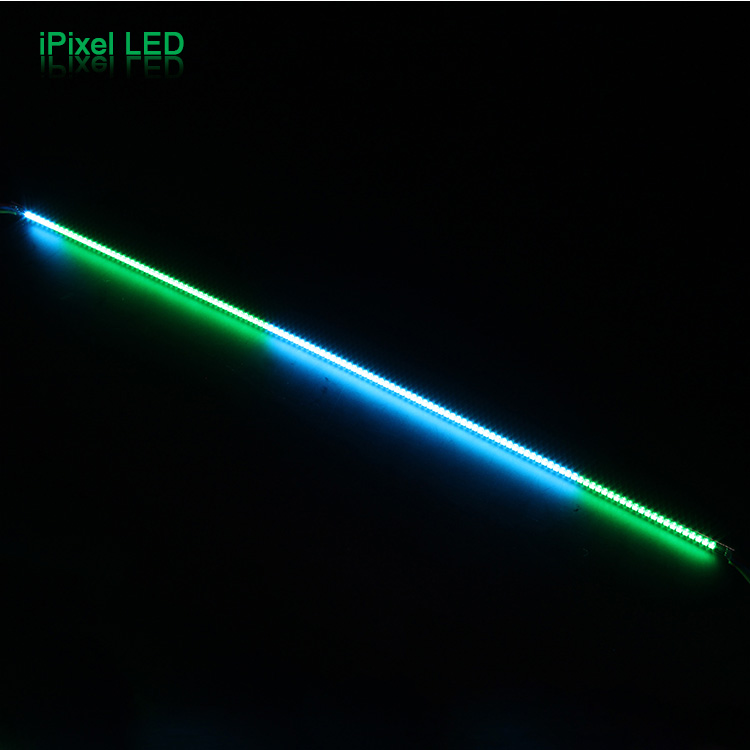

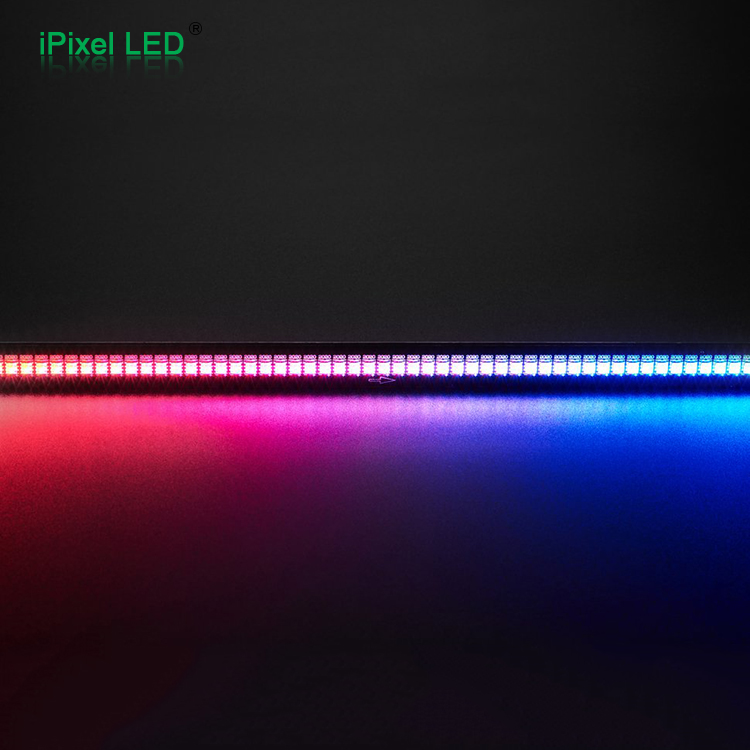

APA102 2020 SMD Rigid Bar

Application:

1. Back lighting.
2. Signage board.
3. Cabinet.
4. Jewelry store.
5. Indoor lighting.

Share to

APA102 2020 SMD Rigid Bar

Product Parameter:

P/N	Emitting Color	Beam angle	VCC	Power(W/M)	LED Qty	Size	IP Rate
B128APA1022020V5	Black	120 deg	DC5V	17±0.5W	APA2020 128LEDs	384101.5mm	IP20

Features:

Pixel pitch approx 3mm for this rigid bar.

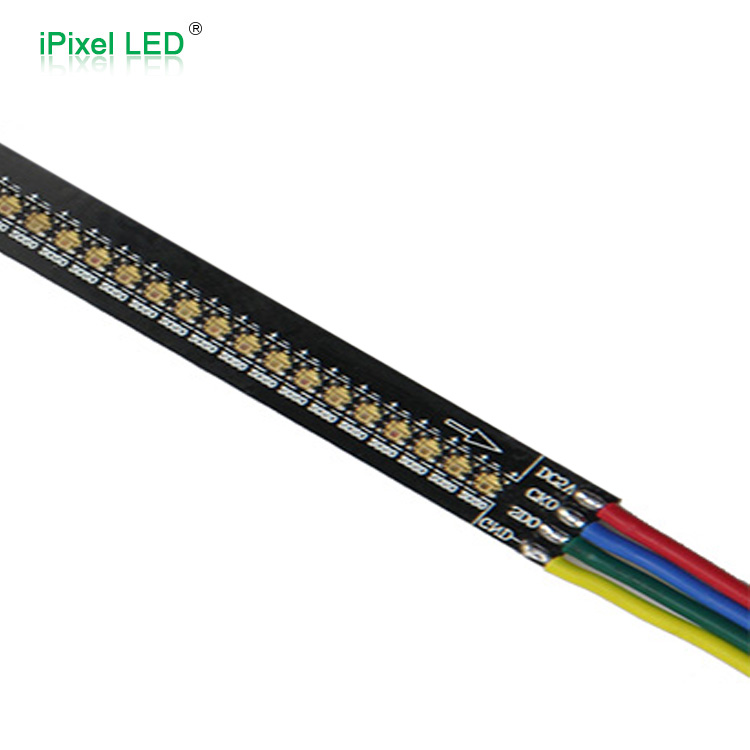

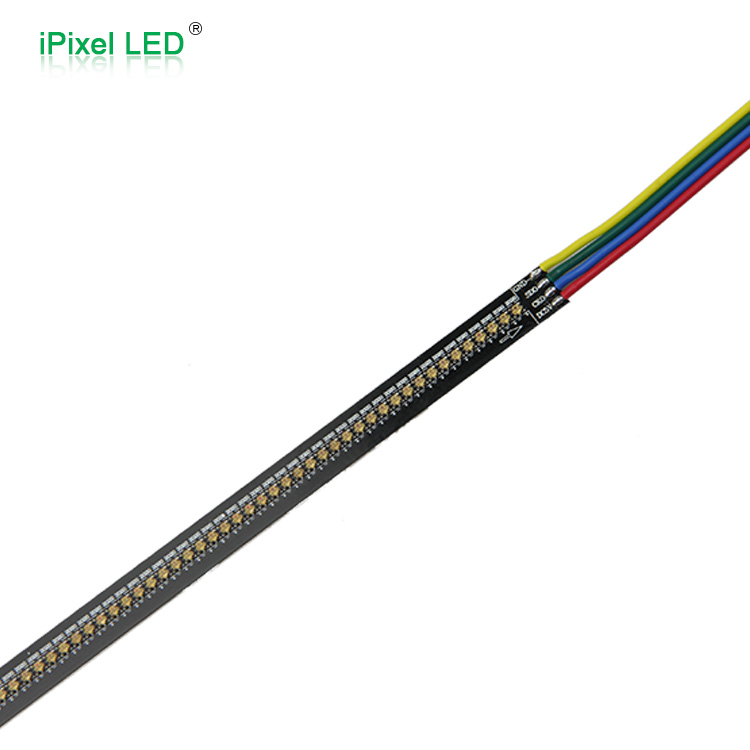

The actual length approx 400mm, the leftover space (16mm )can be used for attaching cables.
10mm pcb wid would be great to dissipate heat.
