Application:
1. Amusement Park.
2. Night club, dance floor.
3. Lights, stage.
4. Tree decoration.
5. Disco, KTV concert.
Product Features 40mm
Product Parameter：
|
PN |
LED |
Beam Angle |
LED Qty |
Power(W) |
Operating Voltage |
|
B040072CB3DS |
SMD 5050 RGB |
360° |
72 |
17W/pcs |
DC12V |
|
B040144CB3DS |
SMD 5050 RGB |
360° |
144 |
34W/pcs |
DC12V |
|
PN |
Control (IC) |
Pixel Qty |
IP Rate |
LM/Pcs |
Size（mm） |
Work Temp |
|
B040072CB3DS |
DMX512 |
12 pixels(36ch) |
20 |
R:35 G:140 B:13 |

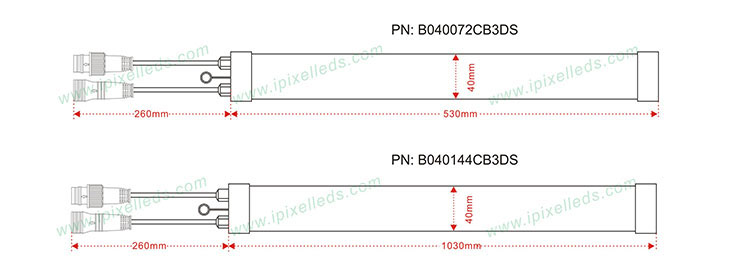

L 530 *W40 |
-30℃-45℃ |
|
B040144CB3DS |
DMX512 |
24 pixels(72ch) |
20 |
R:70 G:280 B:26 |
L 1030 *W40 |
-30℃-45℃ |
Features:
1. IP20 Non-waterproof designed for stage entertainment lighting, TV show
2. 72LEDs per 50cm or 144LEDs per meter(Maximum length 1meter),
3. Pixel pitch is 13.5mm- Milky white PC material, 40mm in diameter
4. Full 360° viewing angle, no lighting spot(no shadow)
5. Vertical or horizontal hanging installation
6. All the tubes were transparent case on the market as there will be lightingspot(shadow) if made the milky white tubes. But now this 40mm milky white pixel led tube solves the issue with a perfect lighting performance

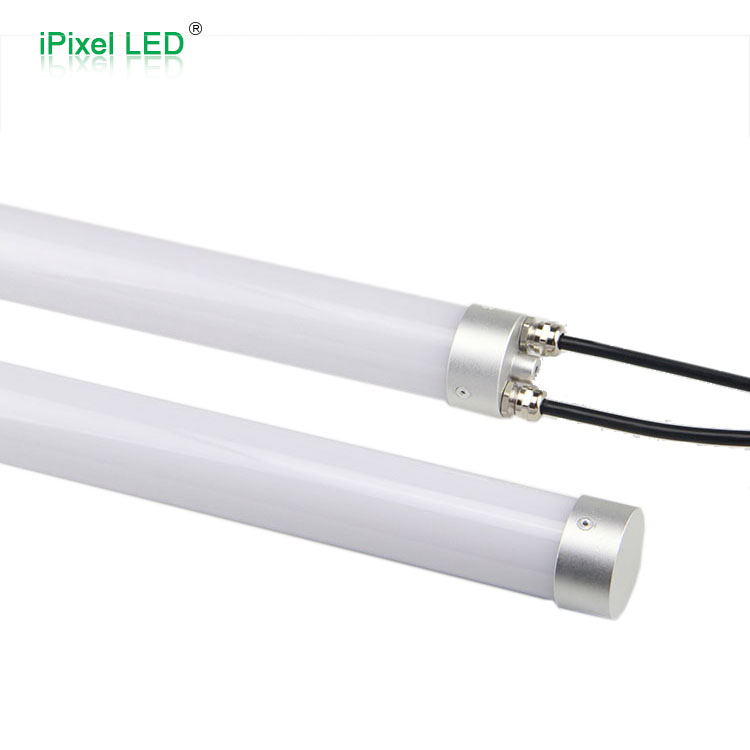

7. There is a pair of connectors and one installation hook from top cap
8. Please note that the tube can be installed in two ways, so there are some differences with the tubes and accessories
9. Both top and end caps are made by anodized aluminum
