iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. Business premises, stage, conference room,
2. Display lights, ancient buildings,
3. Stage illumination,
4. Viaduct overpass, building exterior wall, building landmark,
5. Landscape building, outdoor plaza,
6. Color of landscape, wall and display,

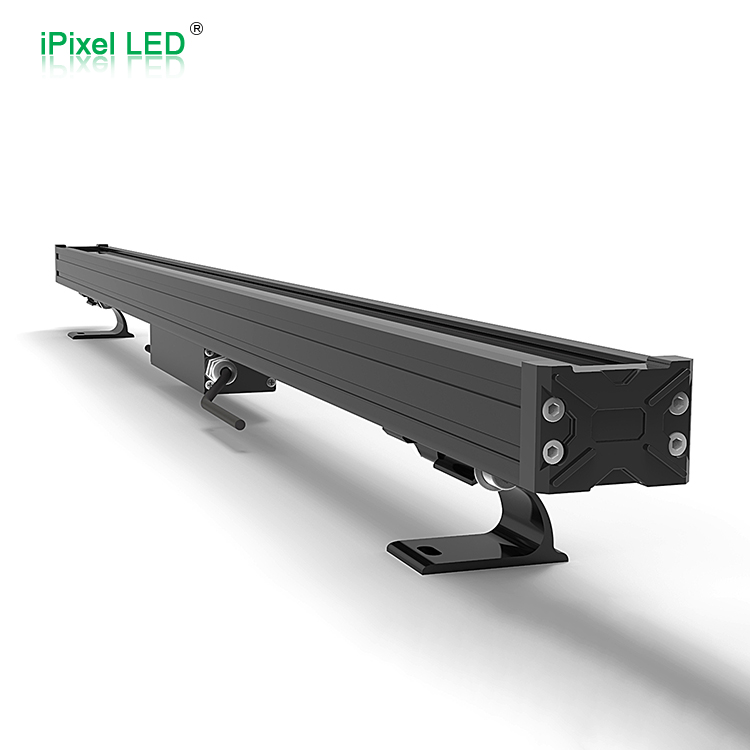

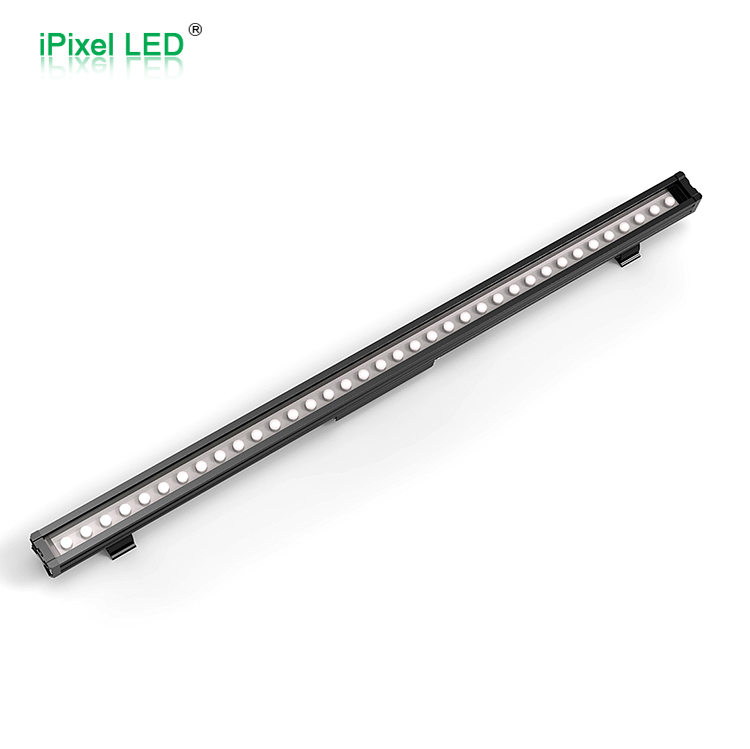

W055RGB Series
Product Parameter:
Product Number
W050 RGB Series
Power
18W
24W
36W
Quantity of LED
18PCS
24PCS
36PCS
Operating Voltage
DC24V
Control (IC)
DMX512
Light Source
CREE-3535
Size (mm)

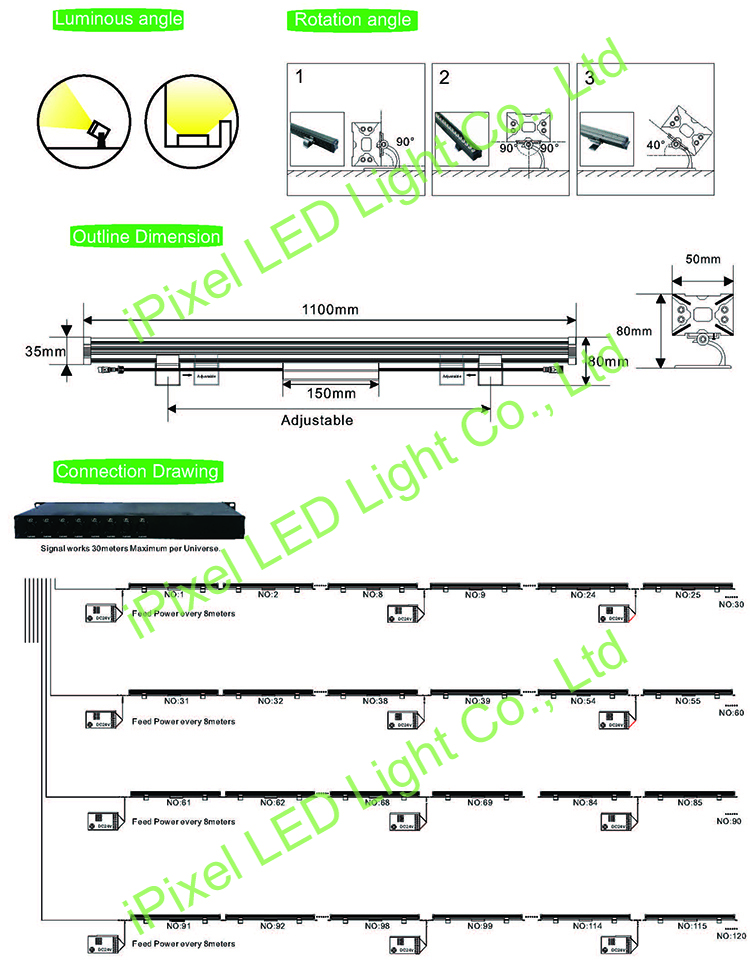

L 1100 * W 50 * H 80mm
Beam Angle
10°、15°、25°、30°、45°、60°、90°、10*30°、10*45°、10*60°、30*70°
Color temperature
R-472nm G-397nm B-345nm
R-630nm G-530nm B-460nm
R-945nm G-795nm B-690nm
Lumens
R-277lm G-420lm B-21lm
R-370lm G-560lm B-28lm
R-555ln G-840ln B-42ln
Glass Thickness
4mm
IP Level
I P66
Life Time
50,000 Hours at Ta=40°C
Work Temp
-20℃ - 50℃
Operating Humidity
10%~95%RH
Finishing Materials
Aluminum and Tempered Glass

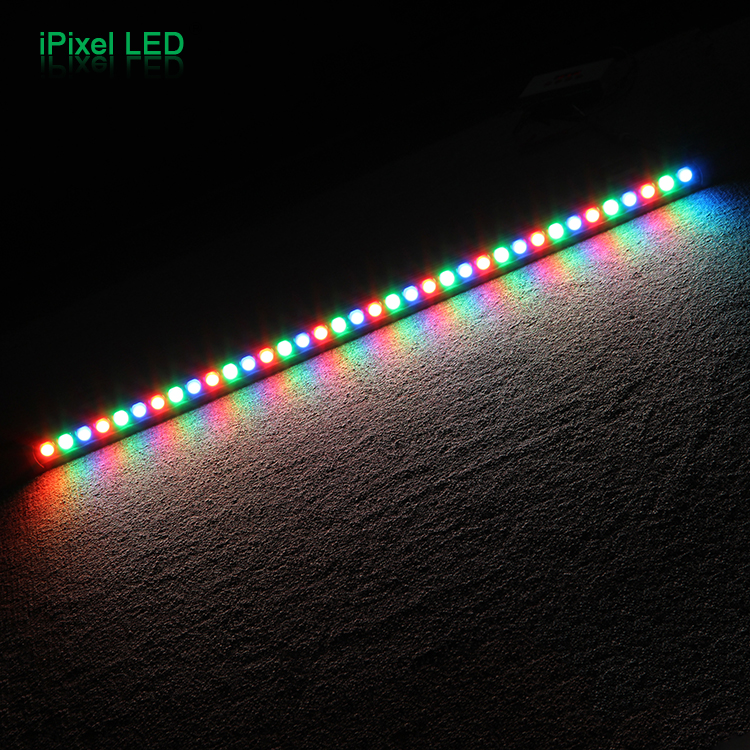

- Colour Changing RGB LEDs.
- Anodised Aluminium Housing.
- Water resistant to IP66.
- Tempered Glass protection.
- DMX controllable.
- Can be installed end to end.

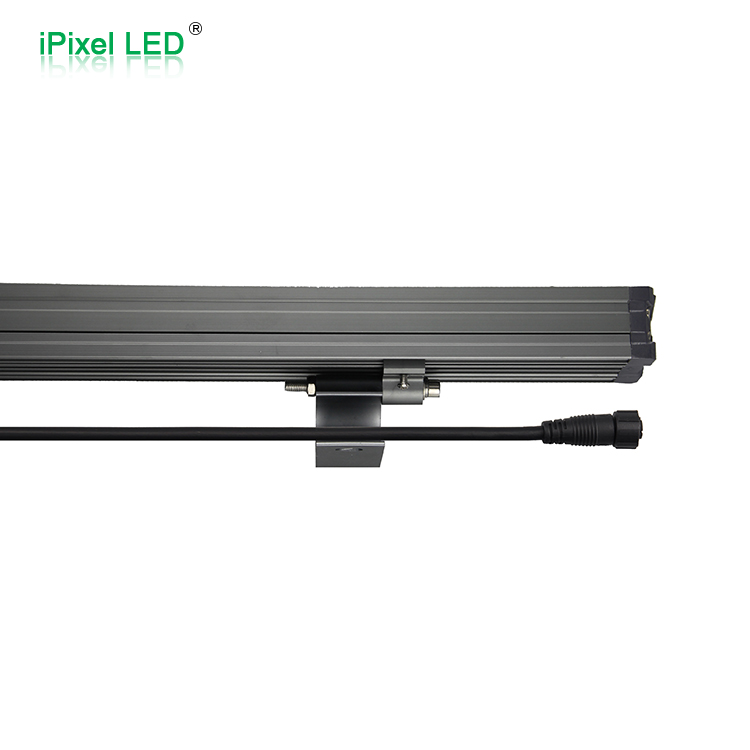

- wires length 525mm, can be custom made.
- Linear length can be custom made.
The Product Video:
