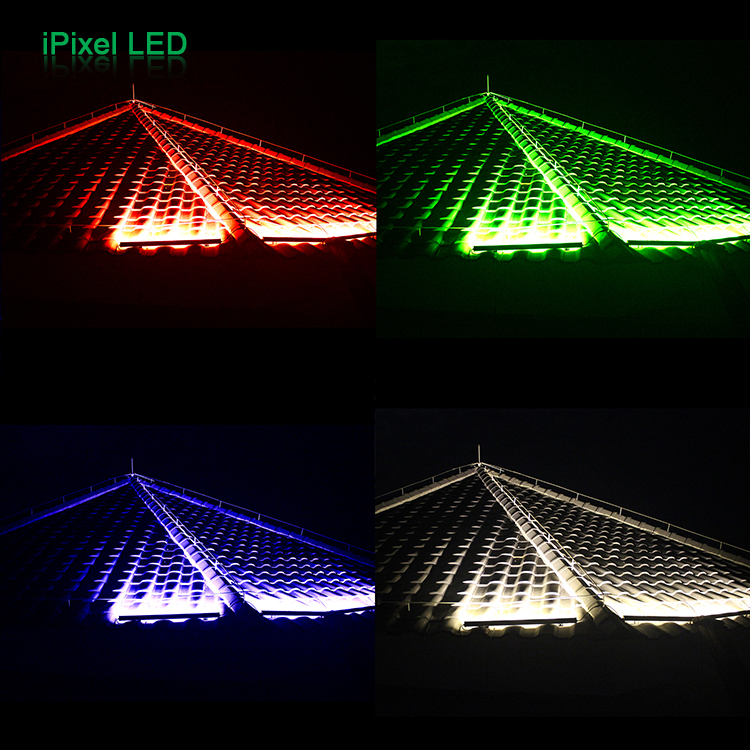

Application:
1. Business premises, stage, conference room,
2. Display lights, ancient buildings,
3. Stage illumination,
4. Viaduct overpass, building exterior wall, building landmark,
5. Landscape building, outdoor plaza,
6. Color of landscape, wall and display,
W050 Single color series
Product Parameter:
Product Number
W050 Single color series
Power
18W
24W
36W
Quantity of LED
18PCS
24PCS
36PCS
Operating Voltage
DC24V
Light Source
3030
Size (mm)
L 1005 * W 50 * H 80mm
Luminous color
White、Red、Green、Blue
Beam Angle
25°、45°、10*45°
Color temperature
2700K-3000K
4000K-5000K
5700K-6500K
Lumen (LM)
18W=1260LM 24W=1680LM 36W=2500LM
Glass Thickness
4mm
IP Level
IP66
Life Time
50,000 Hours at Ta=40°C
Work Temp
-20℃ - 50℃
Operating Humidity
10%~95%RH
Finishing Materials
Aluminum and Tempered Glass

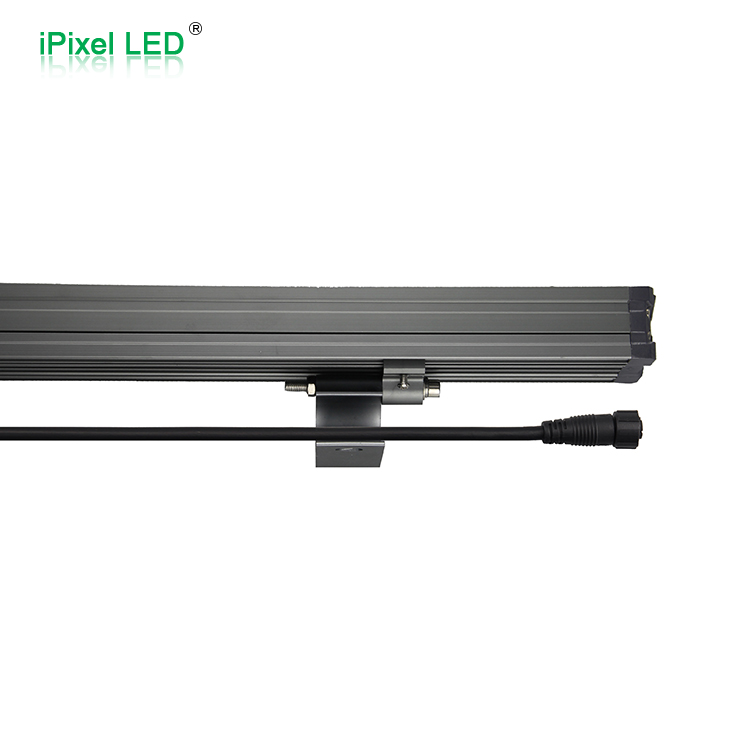

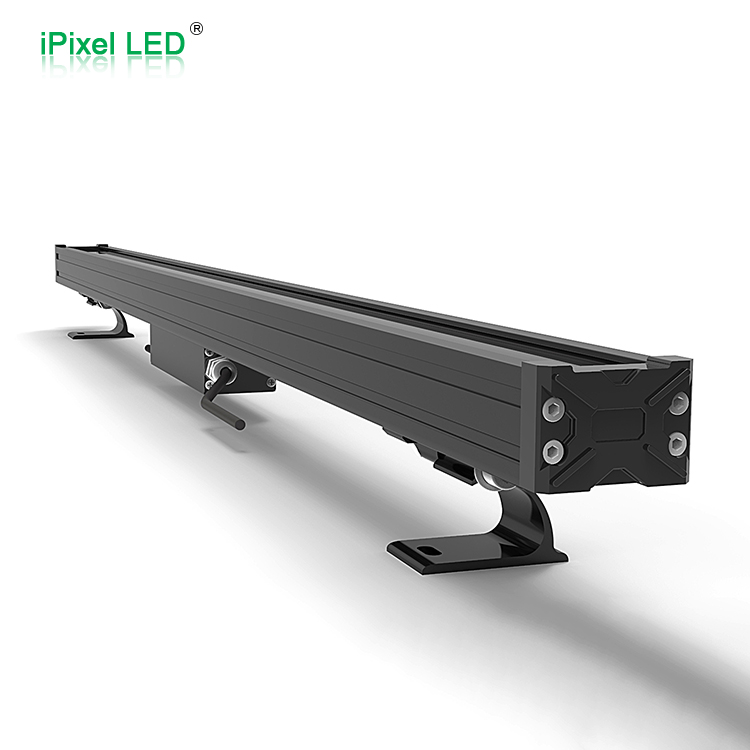

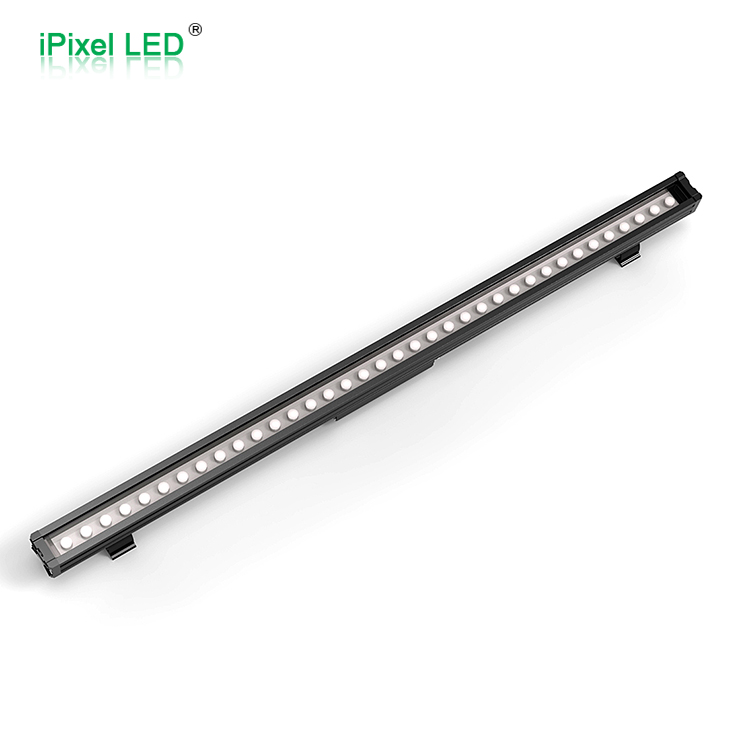

- This High Power Linear Wall washer working with DC24V ,These is a Driver mounted outside of housing.
- Static White color ,Color Temperature can be customization.
- Iron gray color housing made by 6063 Aluminum.
- Adjustable bracket mounting.
- Water resistant to IP66.
- Tempered Glass protection.
- Can be installed end to end.
- wires length 525mm, can be custom made.
- Linear length can be custom made.
