Application:
1. Business premises, stage, conference room,
2. Display lights, ancient buildings,
3. Stage illumination,
4. Viaduct overpass, building exterior wall, building landmark,
5. Landscape building, outdoor plaza,
6. Color of landscape, wall and display,

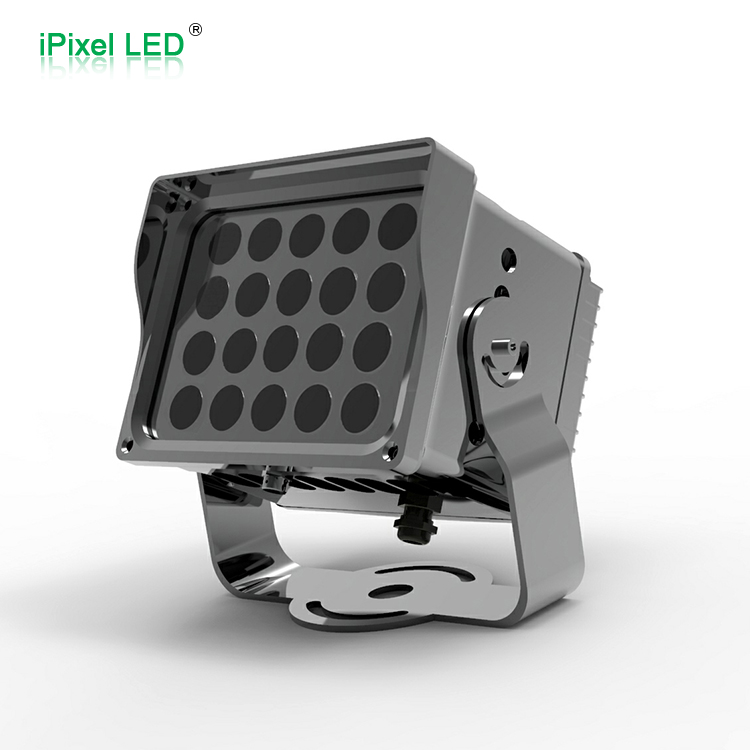

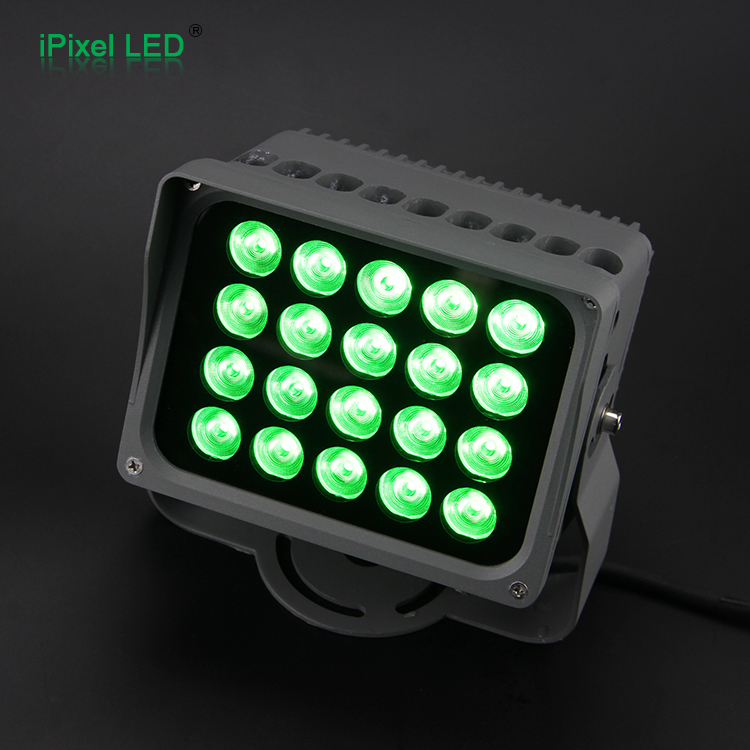

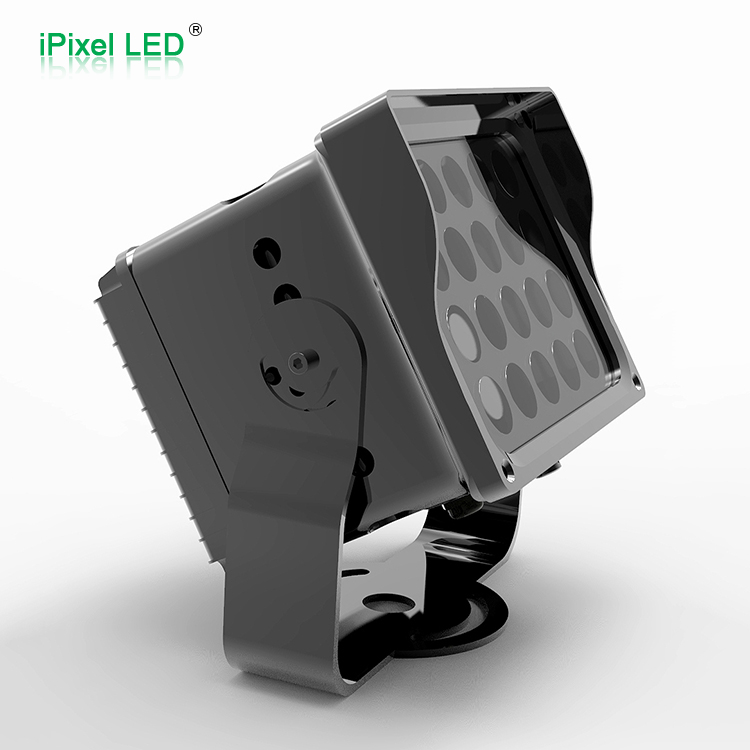

F165 RGBW Series
Product Parameter:
|
Product Number |
F165 RGBW Series |
|
Power |
24W |
|
Quantity of LED |
20PCS |
|
Operating Voltage |
DC24V |
|
Control (IC) |
DMX512 4CH |
|
Light Source |
TX-3535 |
|
Size (mm) |
L 165 * W 125 * H 175 |
|
Beam Angle |
12°、24°、36° |
|
Lumens |
R: 115lm G: 336lm B: 77lm W: 207lm |
|
Glass Thickness |
4mm |
|
IP Level |
IP65 |
|
Life Time |
50,000 Hours at Ta=40°C |
|
Work Temp |
-20℃ - 50℃ |
|
Operating Humidity |
10%~95%RH |
|
Finishing Materials |
Aluminum and Tempered Glass |
- The heat dissipation body of the lamp is made of cast aluminum and sprayed with high-voltage electrostatic powder on the surface.
- The lamp is equipped with multiple waterproof protection, standard IP65 protection level design, and protection level test before leaving the factory;
- High-quality and high-strength tempered glass, up to 99% light transmission, protects the light bright while ensuring that the lamp is not easily damaged.
- Customized design such as monochrome, high voltage, color mixing and multi-effect according to customer requirements.
- Widely used in: parks, gardens, architectural buildings, squares and so on.

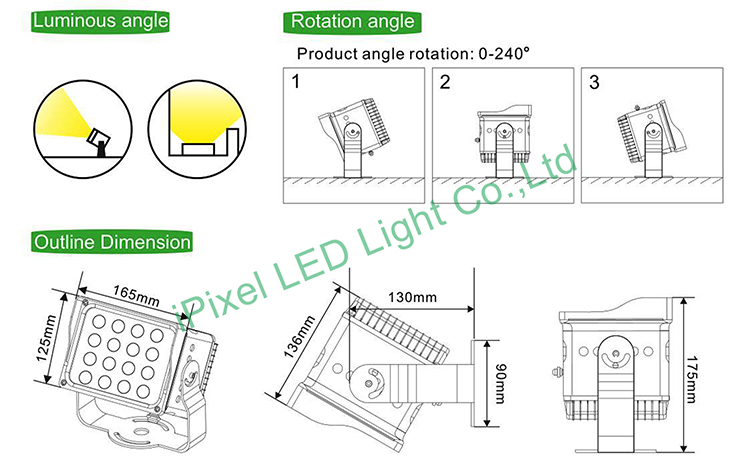

Structural hint:
