Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
DC24V Addressable LED Bar
Product Parameter:
Product Number
B050060CC3SA1
Light Source
SK6812 RGB
Beam Angle
140°
LED Quantity
60leds/pcs
Size （mm）
L 1000 * W 50 * H 50mm
Emitting Color
IC RGB
Operating Voltage
DC24V
Power (W)
16.5W/m
Waterproof Rating
IP 65
PC Cover
Milky white/clear
Pixel Qty
60 pixels
Luminance(MCD/led)
R:24000 G:42000 B:11400
Operation Temperature
-30℃-50℃

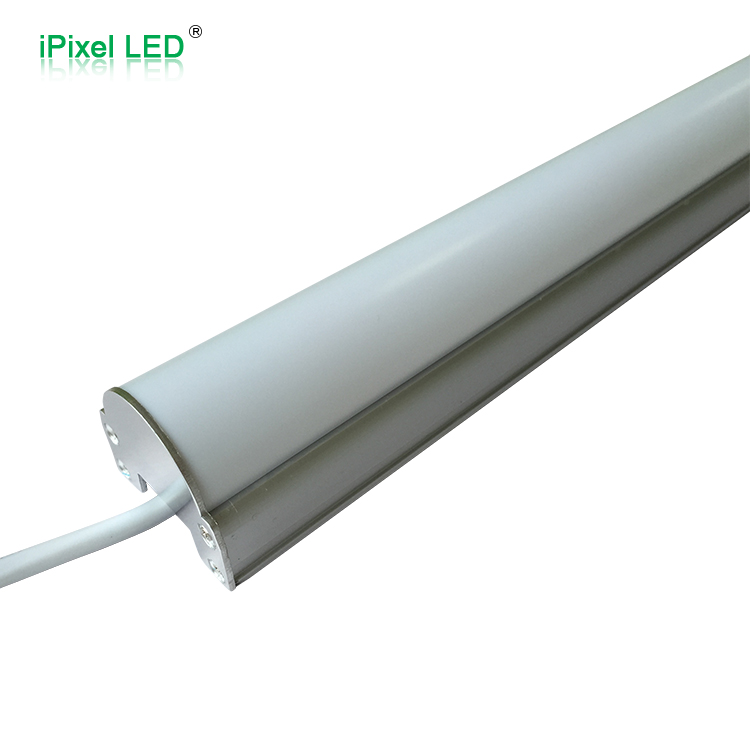

- this tube looks like same as our DMX tube ,same as it's made by aluminum extrusion plus milky white cover
- but the board designed by 60pcs SK6812 RGB LED and 24V DC operation,this makes the installation much easier and no need put
lots of power cable
- Each tube included 2pcs Aluminum clips (without screw) it's cannot adjust the angle but it's move-able horizontal
- Each tube attached a pair of wateproof 3Pin connector output from bottom side ,this could achive No-slot joint when two pcs tube link in series
- Although it's DC24V working , the addressable linear still requested to feed power every 5 meters
