Application:
1. Amusement Park.
2. Night club, dance floor.
3. Lights, stage.
4. Tree decoration.
5. Disco, KTV concert.
Product Features 80mm
Product Parameter：
PN
B080072CB3DS
B080144CB3DS
LED
SMD 5050 RGB
SMD 5050 RGB
Beam Angle
360°
360°
Power(W)
17W/pcs
34W/pcs
Operating Voltage
DC12V
DC12V
Control (IC)
DMX512
DMX512
Pixel Qty
12 pixels(36ch)
24 pixels(72ch)
IP Rate
20
20
LM/Pcs
R:35 G:140 B:13
R:70 G:280 B:26

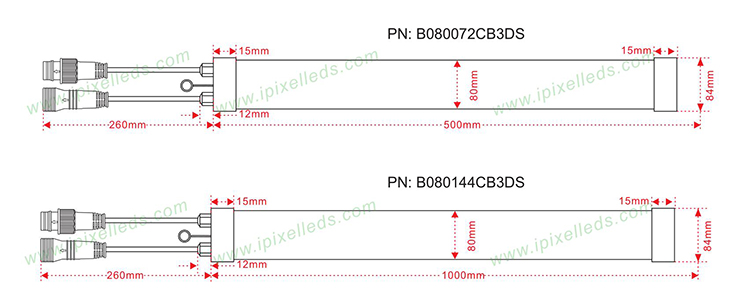

Size（mm）
L 500 * Φ80
L 1000 * Φ80
Work Temp
-30℃-45℃
-30℃-45℃
- IP20 Non-waterproof designed for stage entertainment lighting, TV show

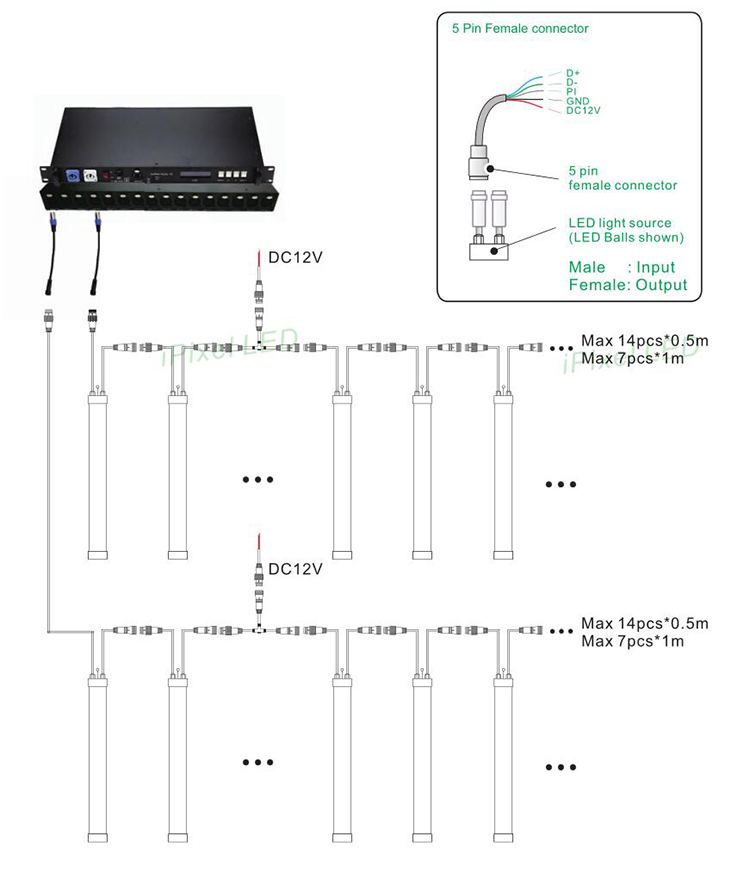

- 17W per 50cm or 34W per meter(Maximum length 3meters),
- Pixel pitch is 13.5mm- Milky white PC material, 80mm in diameter
- Full 360° viewing angle, no lighting spot(no shadow)
- Vertical or horizontal hanging installation
-DMX Channel address manually
-based on our 40/50mm tube ,80mm diameter work out for application of large ceiling illumination like Hotel Lobby,shopping center same like the small version, no light spot and pefect color output from the diffused PC case

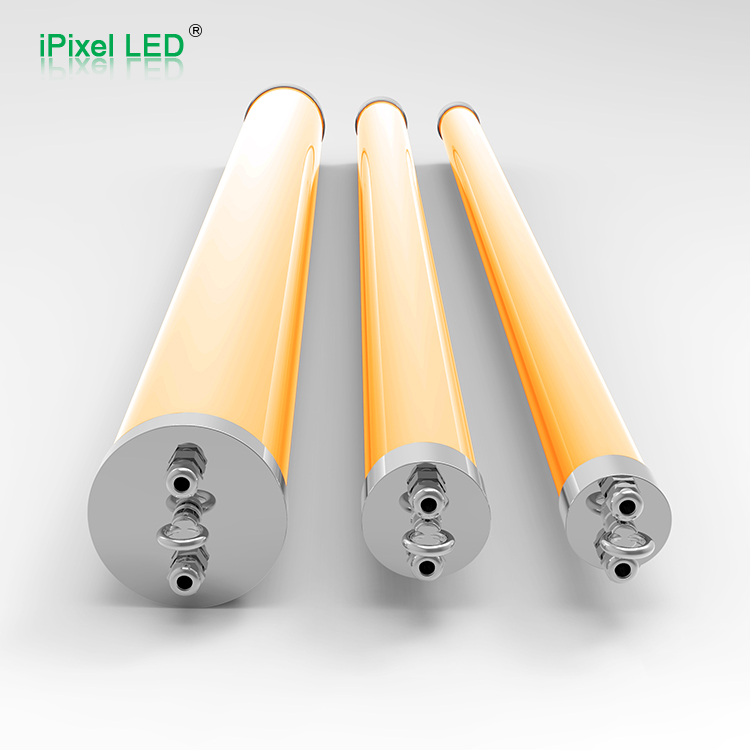

- There is a pair of connectors and one hook from top cap
- the tube can be installed in two ways, so there are some differences with the tubes and accessories which needed to confirm with sales
- Both top and end caps are made by anodized aluminum
-custom length available ,max length 3meters long
