Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.
4040 RGB LED Strip
Product Parameter:
|
Product Number |
S008120TB3LZ |
S008120TC3LZ |
|
Light Source |
4040 RGB |
4040 RGB |
|
Beam Angle |
120° |
120° |
|
LED Quantity |
120leds/m |
120leds/m |
|
Operating Voltage |
DC12V |
DC24V |
|
Power(W) |
19.2w/m (max) |
19.2w/m (max) |
|
Size（mm） |
L 5000* W 8 |
L 5000* W 8 |
|
IP Level |
IP20 | IP20 |
|
Wavelength |
R:622nm G:520nm B:465nm |
R:622nm G:520nm B:465nm |
|
Lumens/M |
R:190LM G:376LM B:80LM |
R:190LM G:376LM B:80LM |
|
Operation Temperature |
- 40 - 50 ℃ |
- 40 - 50 ℃ |
Features :

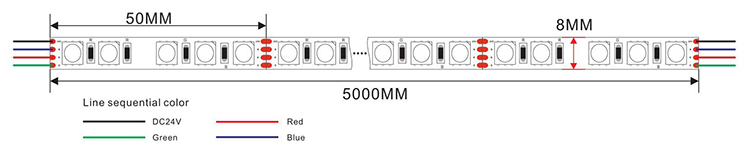

This is a standard RGB LED Flex without Pixel control the difference compare to old type 5050 RGB Flex, this flex only 8mm Width with 120pcs LED per meter ,cut-able every 5cm based on 24V 25mm per section of 12V (both available) the soldering pad not that big and requiring skills to cut & solder it is 5 meters in a reel ,3M tape included on backside of the White FPC
