SMD 2835 120 LED Flex

Single Color LED Strip

Application:

1. Cove lights, back lights,
2. Cabinet lights, edge light,
3. Architectural lights for corridor,
4. Canopy, archway,
5. Lights for path and contour marking; etc.

Email: inquiry@ipixelleds.com

Share to

Product Parameter:

Product Number	S010120BC1LZ
Beam Angle	120°
LED Quantity	120leds/m
Color Temperature	2800-3200K
Lumens	4272LM
Color Rendition Index	83.3RA
Emitting Color	White
Operating Voltage	DC24V
Power (W)	9 . 6W/M
Size（mm）	L 5000* W 10
IP Level	IP20/IP65
Operation Temperature	-40℃ -50 ℃

Features:

This flexible LED strip soldered 120pcs in a meter SMD 2835 LED lamp，Flexible PCB in white color with

10mm Width Cutable each set of 6 LED in 5cm ,the thickness is 1+1 Ounce copper and all the soldering

Pad very large allow you easy to cut and joint again DC24V constant voltage operation，both end

attached bare wire for Powering 3M tape attached on backside of FPC custom length acceptable

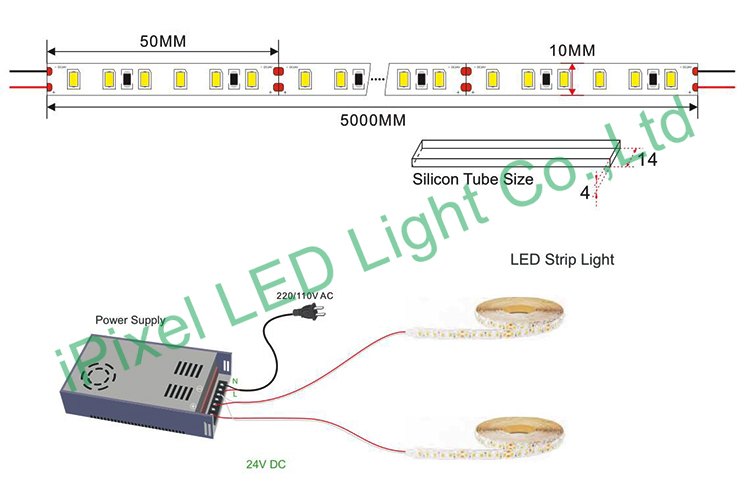

Connection:
