Application:
1. LED strip,led light bar.
2. LED tube,led pixel light.
3. Light source,led screen.
4. LED module,Other Electronics.
|
MODEL |

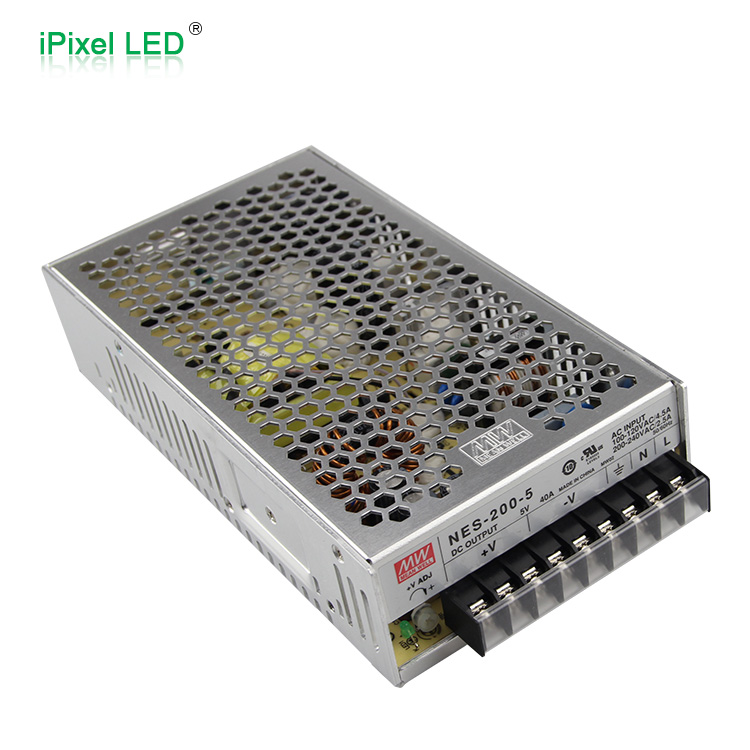

NES-200-5 |
NES-200-12 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
|
RATED CURRENT |
40A |
17A |
|
|
CURRENT RANGE |
0~40A |
0~17A |
|
|
RATED POWER |
200W |
204W |
|
|
RIPPLE&NOISE(max.) Note.2 |
150mVp-p |
150mVp-p |
|
|
VOLTAGE ADJ.RANGE |
4.5~5.6V |
10~13.5V |
|
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
|
|
LINE REGULATION |
±0.5% |
±0.5% |
|
|
LOAD REGULATION |
±1.0% |
±0.5% |
|
|
SETUP,RISE TIME |
1000ms,50ms/230VAC 1000ms,50ms/115VAC at full load |
||
|
HOLD UP TIME |
20ms/230VAC 16ms/115VAC at full load |
||
|
INPUT |
VOLTAGE RANGE Note.4 |
90~132VAC/180~264VAC by switch 254-370VDC |
|
|
FREQUENCY RANGE |
47~63Hz |
||
|
EFFICINCY(Typ.) |
79% |
85% |
|
|
AC CURRENT |
4.5A/115VAC 2.5A/230VAC |
||
|
INRUSH CURRENT(max.) |
40A/115VAC 55A/230VAC |
||
|
LEAKAGE CURRENT |
<3.5mA/240VAC |
||
|
PROTECTION |
OVER LOAD |
105~150% rated output power |
|
|
Protection type:Constant current limiting,recovers automatically after fault condition is removed |
|||
|
OVER VOLTAGE |
5.75~7.0V |
13.8~16.2V |
|
|
Protection type:Shut down o/p voltage,re-power onto recover |
|||
|
OVER TEMPERATURE |
100℃±5℃ |
85℃±5℃ | |
|
Protection type:Shut down o/p voltage,recovers automatically after temperature goes down |
|||
Features:
1. AC input range selectable by switch.
2. Protections: Short circuit/Overload/Over voltage/Over temperature.
3. Cooling by free air convection.
4. Withstand 300vac surge input for 5 second.
5. Built-in constant current limiting circuit.
6. 100% full load burn-in test.
7. LED indicator for power on.
8. Fixed switching frequency at 90KHz.
9. Low cost,high reliability.
10. 2 years warranty.
